FallTech 8' FT-X™ - Cable Class 2 - Leading Edge - Personal SRL-P Single Leg

The FallTech FT-X EdgeCore 8 ft Class 2 Leading Edge Personal SRL-P series are high-performance single-leg self-retracting lifelines designed for demanding fall-protection applications including leading edge hazards. Each model uses the EdgeCore™ lifeline, constructed from Kevlar® cable with a UV-resistant composite jacket that weighs about 40% less than traditional 3/16" galvanized cable. The units are rated for workers up to 420 lb (including tools, gear and apparel) and are suitable for below-D-ring tie-off up to five feet and leading-edge exposures on steel or precast concrete. They comply with ANSI Z359.14-2021 Class 2 SRL-P standards.

Key features:

• Single-leg SRL-P design with 8 ft EdgeCore™ lifeline for leading-edge or below-D-ring tie-off use
• EdgeCore™ lifeline made from Kevlar® cables in a UV-resistant composite jacket for lighter weight and high durability
• Compact, high-ride housing keeps the SRL aligned with the user’s back for improved comfort and mobility
• Choice of end-connection hardware: mini rebar hook, snap hook or rebar hook to match anchorage requirements

• SKU: 84108SP0S, 84108SP1, 84108SP3
• Product type: FT-X EdgeCore 8 ft Class 2 Leading Edge Personal SRL-P, single-leg
• Lifeline length: 8 ft
• Lifeline material: EdgeCore™ synthetic lifeline (Kevlar® cable with UV-resistant composite jacket)
• Static strength: minimum 3,600 lb
• Average arrest force: up to 1,350 lb max
• Maximum arrest force: up to 1,800 lb max
• Maximum arrest distance: 42 in
• User capacity: ANSI 130–310 lb ; OSHA up to 420 lb including tools and gear
• Standards compliance: ANSI Z359.14-2021 Class 2 SRL-P; OSHA 1926.502 & 1910.66
• Connector types:

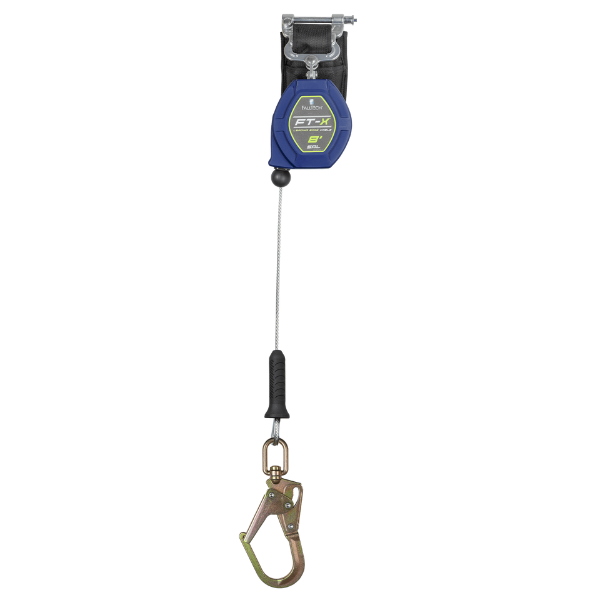

  • 84108SP0S: steel swivel mini rebar hook

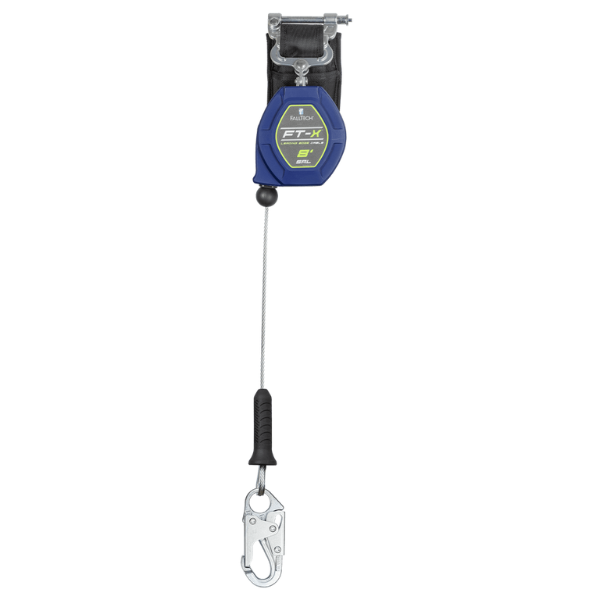

  • 84108SP1: steel swivel snap hook

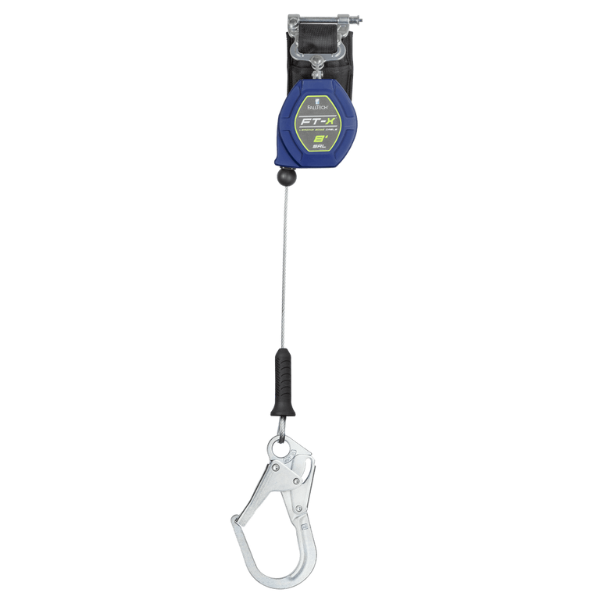

  • 84108SP3: steel swivel rebar hook
    (Connector types verified via manufacturer spec listings)
• Application context: Single-leg SRL-P designed for leading edge hazards and below-D-ring tie-off up to five feet, suitable for steel or precast concrete anchorage systems.

Q: What is the difference among the three models 84108SP0S, 84108SP1 and 84108SP3?
A: The difference is in the end-connection hook: the 84108SP0S comes with a steel swivel mini rebar hook, the 84108SP1 with a steel swivel snap hook, and the 84108SP3 with a steel swivel rebar hook.

Q: Are these units suitable for leading edge applications?
A: Yes, each model in this series is rated Class 2 SRL-P for leading edge exposure and supports below-D-ring tie-off up to five feet.

Q: What user weight loads do these units support?
A: They support ANSI user capacity from 130 to 310 lb and OSHA capacity up to 420 lb including tools, gear and apparel.

Q: What kind of lifeline material is used in these SRLs and why does it matter?
A: They use the EdgeCore™ synthetic lifeline with a Kevlar® cable core in a UV-resistant composite jacket, which is approximately 40% lighter than traditional 3/16” galvanized cable and helps reduce fatigue while maintaining durability.
