- Features a precision-cut bushing that allows for full 360° D-ring rotation, ensuring connectors align naturally with worker movement to prevent equipment twisting
- Includes a specialized concrete expansion bolt with a torque-indicating cap to ensure accurate and secure installation into cured concrete every time
- Constructed with a durable plated stainless steel anchoring plate and a plated alloy steel D-ring for maximum resistance to corrosion and jobsite wear
- Engineered for 5,000 lb minimum static strength, providing a reliable tie-off point for fall arrest, restraint, and work positioning
- Designed as a reusable assembly, the anchor plate and D-ring can be removed and relocated across different jobsite areas to reduce equipment costs
- Fully compliant with OSHA and ANSI standards, supporting an OSHA user capacity of up to 425 lb including tools and equipment
Price: $121.95
Item #FALLTECH-7451C
Write a review!
Description

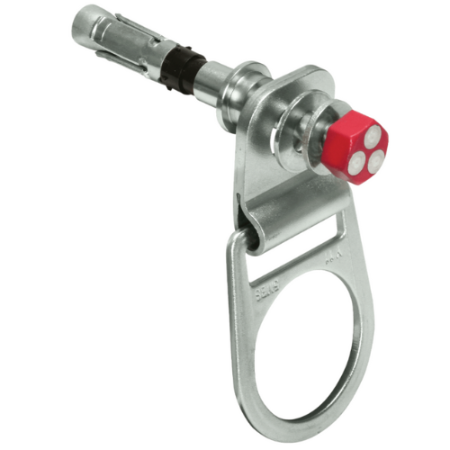

The FallTech 7451C Rotating D-Ring Anchor with Concrete Expansion Bolt provides a strong anchorage connection for fall-protection applications in cured concrete. It includes a stainless-steel anchor plate, an alloy steel D-ring assembly that rotates 360° through a precision-cut bushing, and a concrete expansion bolt with a torque-indicating cap for accurate installation. Designed for both temporary and permanent use, the anchor plate and D-ring are reusable.
Key features:
-
Stainless-steel anchoring plate with alloy-steel rotating D-ring for durability in concrete applications
-
Precision-cut bushing enables full 360° rotation of the D-ring for improved connector alignment
-
Supplied concrete expansion bolt with torque-indicating cap for proper installation in cured concrete
-
Anchor plate and D-ring assembly are reusable to support multiple installations
Specifications
- SKU: 7451C
-
Product type: Rotating D-Ring Anchor with Concrete Expansion Bolt
-
Anchoring plate: Plated stainless steel
-
D-ring: Plated alloy steel; 5,000 lb minimum static strength
-
Static strength: 5,000 lb minimum
-
ANSI user capacity: 130 to 310 lb maximum
-
OSHA user capacity: 130 to 425 lb maximum
-
Included components: Anchoring plate, rotating D-ring assembly, concrete expansion bolt
-
Application: Anchoring in cured concrete surfaces
FAQs
Q: What type of concrete installation is the 7451C designed for?
A: It is intended for cured concrete surfaces where a reliable anchor point with an included expansion bolt is required.
Q: Does the D-ring rotate to help with alignment?
A: Yes, the D-ring provides full 360-degree rotation to help the connector align naturally with worker movement.
Q: Is the 7451C reusable after installation?
A: The anchor plate and D-ring assembly are reusable when properly removed, cleaned and inspected before reinstallation.
Q: What hardware is included with the 7451C?
A: The anchor includes the stainless-steel plate, rotating D-ring assembly and the concrete expansion bolt with torque-indicating cap.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
