- 360° Rotate & 180° Pivot: Full-motion D-ring spins 360 degrees and flips 180 degrees to eliminate side-loading from any angle.
- 10,000 lb. Static Strength: Ultra-high-capacity structural design delivers double the strength of standard 5k fall-arrest anchors.
- Bolt-On Custom Mounting: Fastener-free plate allows you to supply application-specific bolts matched exactly to your structural requirements.
- Dynamic Positioning Ready: Heavy-duty alloy steel build tracks multi-directional worker movement on high-load engineered lifelines.
Price: $76.00
Item #FALLTECH-7393B
Write a review!
Description

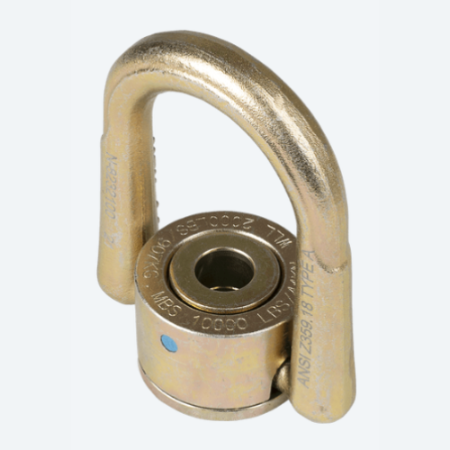

The FallTech 7393B Rotating Bolt-On D-Ring Anchor provides a fixed structural anchorage point with full rotation and pivoting capability. The D-ring assembly rotates 360 degrees and pivots 180 degrees to help align with the user’s movement and connection direction. Rated to 10,000 pounds, this anchor is designed for bolt-on installation to suitable structural surfaces using user-supplied fasteners.
Key features:
-
360-degree rotating D-ring for full connection alignment
-
180-degree pivoting movement for directional flexibility
-
10,000 lb rated capacity for high-strength anchorage
-
Bolt-on design for securing to structural surfaces using user-supplied fasteners
Specifications
- SKU: 7393B
-
Product type: Rotating Bolt-On D-Ring Anchor
-
Capacity: 10,000 lb
-
Movement: 360° rotation and 180° pivoting
-
Installation: Bolt-on, user-supplied fasteners
-
Components included: Rotating D-ring assembly and mounting plate
-
Material: Alloy steel (D-ring assembly as shown on product page)
FAQs
Q: What types of structures can the 7393B be mounted to?
A: It can be installed on structural surfaces capable of supporting a 10,000-pound rated anchor point when properly fastened.
Q: Does the rotating D-ring help reduce unwanted loading angles?
A: Yes, the 360-degree rotation and 180-degree pivoting allow the connection to naturally align with the user’s movement.
Q: Are bolts included with the 7393B anchor?
A: No, fasteners are user-supplied to match the structural material and load requirements.
Q: Is this anchor suited for applications where workers move frequently around the anchor point?
A: Yes, the rotating and pivoting D-ring design allows smooth directional alignment for workers who change positions frequently.
