- Features a versatile toggle-through design that installs into pre-drilled or existing holes ranging from 13/16 inch to 1-1/4 inch in diameter
- Engineered for high-strength performance on steel substrates up to 1-1/4 inch thick, providing a secure tie-off point without welding or permanent drilling
- Constructed from premium plated alloy steel for superior durability and corrosion resistance in demanding steel construction and rigging environments
- Designed for fast relocation and repeated use, making it an ideal solution for temporary anchor points that need to move as the project progresses
- Delivers a minimum static strength of 5,000 lbs, supporting an OSHA user capacity of up to 425 lbs including tools and equipment
- Fully compliant with OSHA 1926.502 and 1910.66 regulations for reliable fall arrest and restraint applications on structural steel
Price: $87.00
Item #FALLTECH-7408
Write a review!
Description

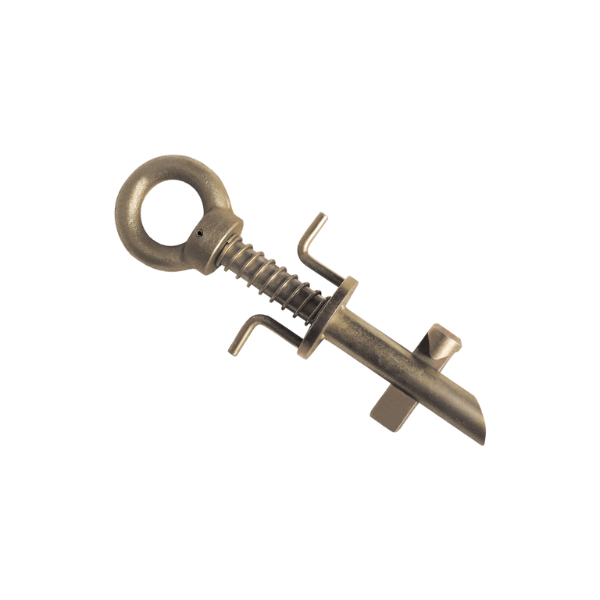

The FallTech 7408 Toggle-Through Eyebolt Anchor for Steel is constructed for temporary and reusable anchorage on steel structures. It installs into hole sizes ranging from 13/16″ minimum up to 1-1/4″ and on steel substrate thickness up to 1-1/4″. It is designed for use where quick relocation of anchor points is required, particularly in steel construction or rigging setups.
Key features:
-
Installs on steel substrate up to 1-1/4″ thick and hole sizes from 13/16″ to 1-1/4″
-
Designed for fast relocation and repeated use on steel structures
-
Toggle-through eyebolt style allows anchorage without permanent welding or drilling
Specifications
- SKU: 7408
-
Product type: Toggle-Through Eyebolt Anchor for Steel
-
Steel substrate installation thickness: up to 1-1/4″
-
Hole size compatibility: 13/16″ minimum to 1-1/4″ maximum
-
Material: Plated alloy steel (toggle anchor)
-
Static strength: 5,000 lb minimum
-
ANSI user capacity: 130 to 310 lb max
-
OSHA user capacity: 130 to 425 lb max
-
Compliance: OSHA 1926.502 and 1910.66
FAQs
Q: What range of steel thickness and hole sizes does the 7408 accommodate?
A: It fits steel substrate up to 1-1/4″ thick and hole diameters from 13/16″ up to 1-1/4″, making it versatile for steel construction use.
Q: Is the 7408 suitable for temporary anchor locations that need relocation?
A: Yes — the toggle-through design and eyebolt style make it ideal for temporary or changing anchor point needs on steel structures.
Q: Can I use the 7408 anchor on concrete or other substrates?
A: The specification lists it for steel substrates only; for other materials or concrete, a different anchor designed for that substrate should be selected.
Q: What strength rating does the 7408 have?
A: It has a minimum static strength of 5,000 lb, with ANSI load capacity 130-310 lb and OSHA capacity 130-425 lb per the manufacturer page.
