- Designed specifically for the second stage 180 degree bend on double-lock standing seams with 9/16 inch or 5/8 inch top leg widths
- Features a unique leverage mechanism and lightweight design ideal for hard-to-reach spaces or elevated work
- Built with brass jaws and steel handles to prevent scratching or peeling of painted and coated metal surfaces
- Suitable for use on entire roof runs as well as starting, finishing, and detailing applications
- Supports material capacities including 24 gauge steel, 0.032 inch aluminum, and 20 oz copper
- Engineered for use after a corresponding first-stage single-lock hand seamer has prepared the seam
Price: $328.75
Item #ESE-099HD
Write a review!
Description

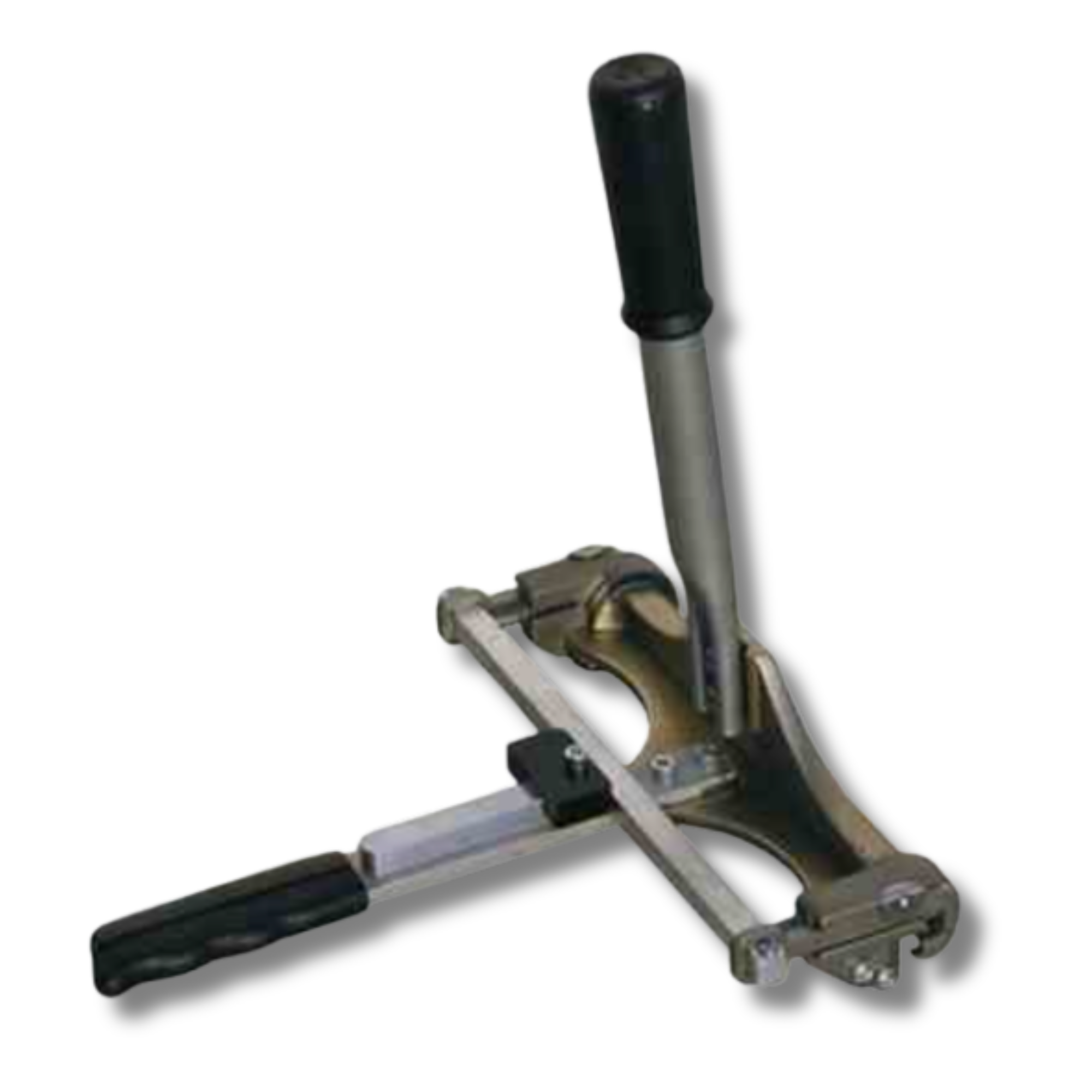

The ESE Machines 099HD Heavy Duty Finish Hand Seamer is designed for the second-stage 180° bend in double-lock standing seam panels that measure 9/16″ or 5/8″ across the top. It utilises a unique leverage design and is lightweight, engineered for start, finish or full-roof use in hard-to-reach locations. The tool is made in the USA and features brass jaws with steel handles to protect coated or painted surfaces.
Key features:
-
Designed for double-locking standing seams with 9/16″ or 5/8″ top leg widths
-
Lightweight design with a unique leverage mechanism for hard-to-reach spaces
-
Brass jaws and steel handles engineered to avoid scratching or peeling metal coatings
-
Made in the USA, suitable for entire roof runs or detailing
Specifications
SKU: 099HD
Product type: Heavy Duty Finish Hand Seamer (Double Lock, Second Stage)
Compatible profile widths: 9/16″ (0.562″) and 5/8″ (0.625″) across the top leg of the seam
Maximum bending capacities: steel up to 24 gauge; aluminum up to 0.032″; copper up to 20 oz.
Weight: approx 7 lbs; Width: 11.5″; Length: 24″ (unfolded)
Use context: For double-lock seam completion after an appropriate first-stage seamer (e.g., 001-562 or 001-625)
Origin: Made in USA
FAQs
Q: What profiles does the 099HD accommodate?
A: It supports double-lock standing seams with top widths of 9/16″ or 5/8″ across.
Q: Do I need a first-stage tool before using the 099HD?
A: Yes — panels must first be seamed with a matching single-lock (first-stage) seamer (such as 001-562 or 001-625) before using the 099HD for the second stage.
Q: Will the 099HD damage coated or painted panel surfaces?
A: No — it is built with brass jaws and steel handles and is engineered to avoid scratching or peeling finishes.
Q: What metal gauges and material thicknesses can this tool handle?
A: It can bend steel up to 24 gauge, aluminum up to 0.032″, and copper up to 20 oz.
