- Engineered to create the first-stage 90 degree bend for standing seam profiles measuring 1/2 inch or 9/16 inch across the top
- Features a lightweight design with a leverage-assist handle for improved control in tight or hard-to-reach locations
- Designed with non-scratch jaw components to protect coated or painted metal surfaces from peeling or damage
- Supports professional material capacities including 24 gauge steel, 0.032 inch aluminum, and 20 oz copper
- Suitable for starting and finishing seams or for completing entire roof runs in single-lock applications
- Manufactured in the USA and serves as the primary stage for double-lock systems when paired with a finish tool
Price: $197.50
Item #ESE-001N
Write a review!
Description

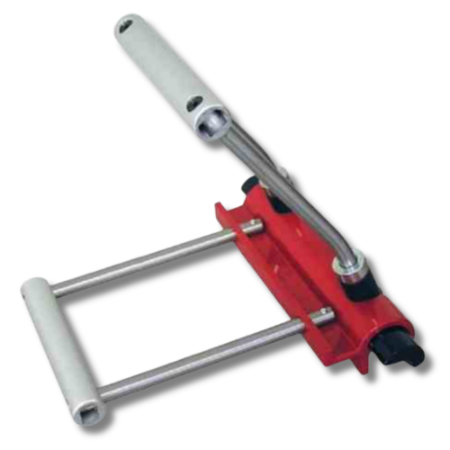

The ESE Machines 001N First Stage Hand Seamer is engineered for creating the initial 90° bend on single-lock standing seam panels that measure 1/2″ (0.500″) or 9/16″ (0.562″) across the top. It features a lightweight frame and a unique leverage design for start, finish or full-roof applications in tight or hard-to-reach locations. The tool is designed with non-scratch jaws to protect coated or painted surfaces and is manufactured in the USA.
Key features:
-
Creates the first-stage 90° bend for seam profiles measuring 1/2″ or 9/16″ across the top
-
Lightweight design with leverage-assist handle for improved control in tight spaces
-
Brass or controlled-surface components designed to avoid scratching or peeling coated surfaces
-
Made in the USA and suitable for entire roof runs or start/finish work
Specifications
SKU: 001N
Product type: First Stage Hand Seamer (Single Lock)
Compatible top-leg widths: 1/2″ (0.500″) and 9/16″ (0.562″) across the top leg of the seam
Maximum bending gauges: steel up to 24 gauge; aluminum up to 0.032″; copper up to 20 oz
Intended use: For single locking profiles; for double lock seams, pair with corresponding finish tool (e.g., 099 or 099HD)
Origin: Made in the USA
FAQs
Q: What panel widths can the 001N handle for single-lock forming?
A: It supports profiles measuring 1/2″ or 9/16″ across the top leg.
Q: Will the 001N damage coated or painted surfaces?
A: No, the design includes features to avoid scratching or peeling of coated surfaces.
Q: What metals and gauges is the 001N rated for?
A: It is rated for steel up to 24 gauge, aluminum up to 0.032″, and copper up to 20 oz.
Q: Do I need a second tool if I am doing double-lock seams?
A: Yes, for double-lock seams you must first use a first-stage tool like the 001N, then follow with a finish hand seamer (such as 099 or 099HD) for the 180° bend.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
