Description

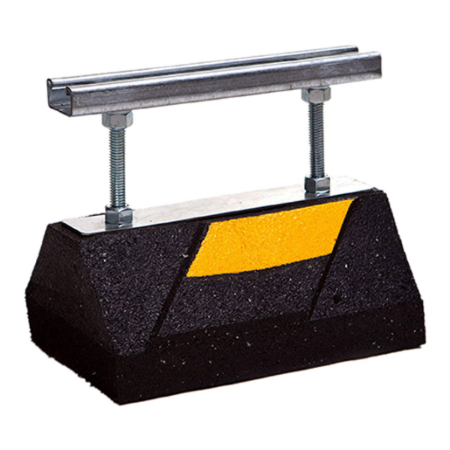

The CE Series channel support is designed as an extended support for gas and refrigeration piping systems, conduit and many other applications. The CE Series height is designed to be fully adjustable from 8" to 16" and works with a wide range of pipe clamps and straps. It is available in corrosion resistant stainless steel or aluminum.
Key features:
-
Recycled rubber base, UV resistant
-
14-gauge galvanized channel strut (13/16" high)
-
Adjustable design from 8" to 16"
-
Compatible with gas, refrigeration, and conduit runs
Specifications
- Base: 100% recycled rubber, UV resistant
-
Strut: 14 gauge galvanized channel strut (13/16" high)
-
Rod: Two 1/2" electro-zinc plated all threaded rod risers
Cport CE Series Specifications Chart
| Model |
Height |
Width |
Length |
Weight |
Weight Capacity |
| CE10-8 |
8” (203mm) |
6” (152mm) |
9.6” (244mm) |
6.14 lbs |
400 lbs |
| CE10-12 |
12” (305mm) |
6” (152mm) |
9.6” (244mm) |
6.49 lbs |
400 lbs |
| CE10-16 |
16” (406mm) |
6” (152mm) |
9.6” (244mm) |
6.84 lbs |
400 lbs |
FAQs
Q: Is the CE10-8 compatible with typical strut clamps and straps?
A: Yes, it works with a wide range of pipe clamps and straps.
Q: Can the support height be adjusted on site?
A: Yes, the series design allows height adjustment from 8" to 16".
Q: What materials are available for the metal components?
A: The support is available in corrosion resistant stainless steel or aluminum.
Q: What is the weight capacity for this model?
A: The CE10-8 model is rated for 400 lbs.
