- Thermally Broken Design reduces heat transfer and minimizes condensation
- High-Performance R-18 Insulation in both cover and curb for energy efficiency
- Extra-Long 30" x 96" Opening ideal for service stair and frequent roof access
- Weather-Tight Aluminum Construction with welded corners, beaded edges, and EPDM gasket
- Safe & Balanced Operation with compression spring lift assist and automatic hold-open arm
Price: $4,090.00
Item #BILCO-L-50TB
Write a review!
Description

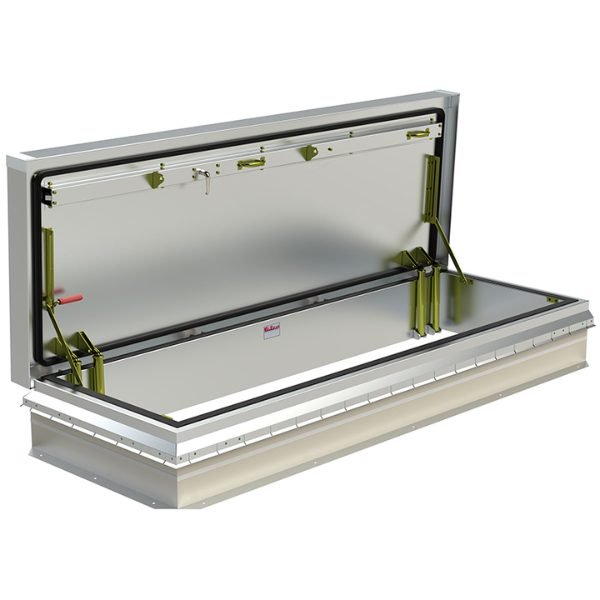

The Bilco L-50TB is a thermally broken Type L roof hatch sized 30″×96″ with aluminum cover and curb construction. It features approximately R-18 polyisocyanurate insulation in the cover and curb, EPDM gasket, a beaded overlapping flange design, and fully welded corners to provide weather tightness and energy efficiency. The hatch is reinforced for a 40 psf live load and includes compression spring operators, stainless steel hinges, slam latch with interior/exterior handles, and an automatic hold-open arm.
Key Features:
-
Thermally broken cover and curb design to reduce heat transfer and prevent condensation
-
Polyisocyanurate insulation (approx. R-18) in cover and curb for energy performance
-
Aluminum construction with overlapping flange, beaded edges, and fully welded corners for durability and weather sealing
-
Lift assistance via compression springs and automatic hold-open arm for safer operation
-
Hardware includes stainless steel hinges, slam latch, padlock provisions, and Bil-Clip flashing system
Specifications
- Size (curb-to-curb): 30″ × 96″
-
Material: 11 gauge (2.3 mm) aluminum for cover and frame; aluminum curb as well
-
Insulation: 3″ (75 mm) polyisocyanurate in both cover and curb (approx. R-18)
-
Curb height: 12″ (305 mm); mounting flange 5-1/2″ (114 mm) with 7/16″ (11 mm) holes
-
Live load capacity: 40 psf (195 kg/m²)
-
Includes: Thermally broken roof hatch with cover and curb, gasket, lift hardware, hold-open arm, latch set
How To
- Prepare the rough opening sized 30″×96″ and ensure structure can support load.
-
Set the L-50TB hatch over the curb, aligning mounting flange holes.
-
Secure through the flange using appropriate fasteners; install compression springs and verify hold-open arm.
-
Test cover open/close operation, check gasket seal, ensure latch engages properly.
FAQs
Q: What is the insulation rating of the L-50TB model?
A: The L-50TB uses approximately R-18 polyisocyanurate insulation in both cover and curb.
Q: Can this model handle frequent stairway traffic and tool movement?
A: Yes. It is Service Stair Access hatch, engineered for frequent use and movement of tools and personnel.
Q: Does it come with lift assist or weight balancing?
A: Yes. Includes compression spring operators and an automatic hold-open arm.
Q: Is it suitable for energy-efficient building design such as LEED?
A: Yes. Thermally broken design, insulation, and gasketing features contribute to energy performance and condensation resistance.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
