- VersaMount Retrofit Design installs over existing curb without re-roofing
- Heavy-Gauge Galvanized Steel Construction reinforced for frequent stair access
- Insulated Cover and Curb for improved thermal performance
- Weather-Tight Seal with overlapping cover, welded corners, and EPDM gasket
- Safe One-Hand Operation with spring lift assist and automatic hold-open arm
Price: $3,795.00
Item #BILCO-L-20VM
Write a review!
Description

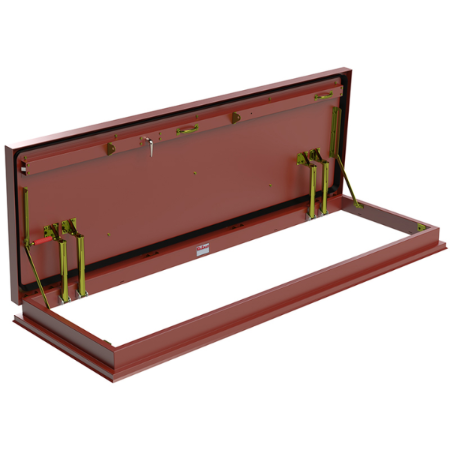

The Bilco L-20VM is a VersaMount Type L roof hatch sized 30″×96″ designed for replacement over existing curbs without re-roofing. It includes a low-profile curb with built-in flange and apron and an anchor clip system for quick, weather-tight installation. The cover and curb are insulated, with overlapping design, welded corners, EPDM gasket, spring-assisted lift and secure latching hardware for safe and durable performance.
Key Features:
-
Built-in flange, apron, and anchor clip system to enable replacement over an existing curb without removing roofing membrane
-
Cover and curb insulated, overlapping cover design, with welded corners and EPDM gasket for weather-tight performance
-
Heavy-gauge galvanized steel cover/frame, reinforced for 40 psf live load
-
One-hand operation with compression spring operators and automatic hold-open arm
-
Secure slam latch with interior/exterior handles and padlock hasps
Specifications
- Width × Length: 30″ × 96″
-
Material: 14 gauge (2 mm) galvanized steel cover and frame
-
Curb height: 4″ (102 mm) with built-in apron of 1-1/2″ (38 mm); mounting flange 2-5/8″ (67 mm)
-
Insulation: 1″ (25 mm) concealed in cover and curb
-
Includes: Roof hatch with cover, insulated curb, flange/apron, anchor clips, hardware
-
Live load capacity: 40 psf (195 kg/m²)
How To
- Remove damaged hatch cover and place the L-20VM hatch over the existing curb.
-
Position built-in flange and apron so that the curb and apron overlap existing roof membrane.
-
Secure anchor clips to existing curb per manufacturer’s layout.
-
Test cover opening/closing, check gasket seal, automatic hold-open arm, and latch operation.
FAQs
Q: Do I need to remove old curb when installing the L-20VM?
A: No. The L-20VM is designed to install over an existing curb using VersaMount curb, built-in flange, apron, and anchor clips.
Q: How high is the curb on the L-20VM hatch?
A: The curb is 4″ high with an apron of 1-1/2″ and mounting flange 2-5/8″ wide.
Q: What is the insulation thickness in the L-20VM?
A: 1″ concealed insulation in both cover and curb.
Q: Can this hatch support live loads, tools, or heavy equipment access?
A: Yes. It is reinforced for 40 psf live load and built with heavy-gauge steel and secure hardware.
