- Square bead profile centers in the joint to create flat, uniform beads with minimal tooling
- Trim-to-size outlet allows installers to customize bead width quickly
- High-visibility green makes it easy to track flow and placement
- Fits Albion B-Line 2" barrel sausage guns with the correct ring/front cap
- Bulk 25-pack supports long runs, glazing jobs, and repetitive production
Price: $36.65
Item #321-1135-4
Write a review!
Description

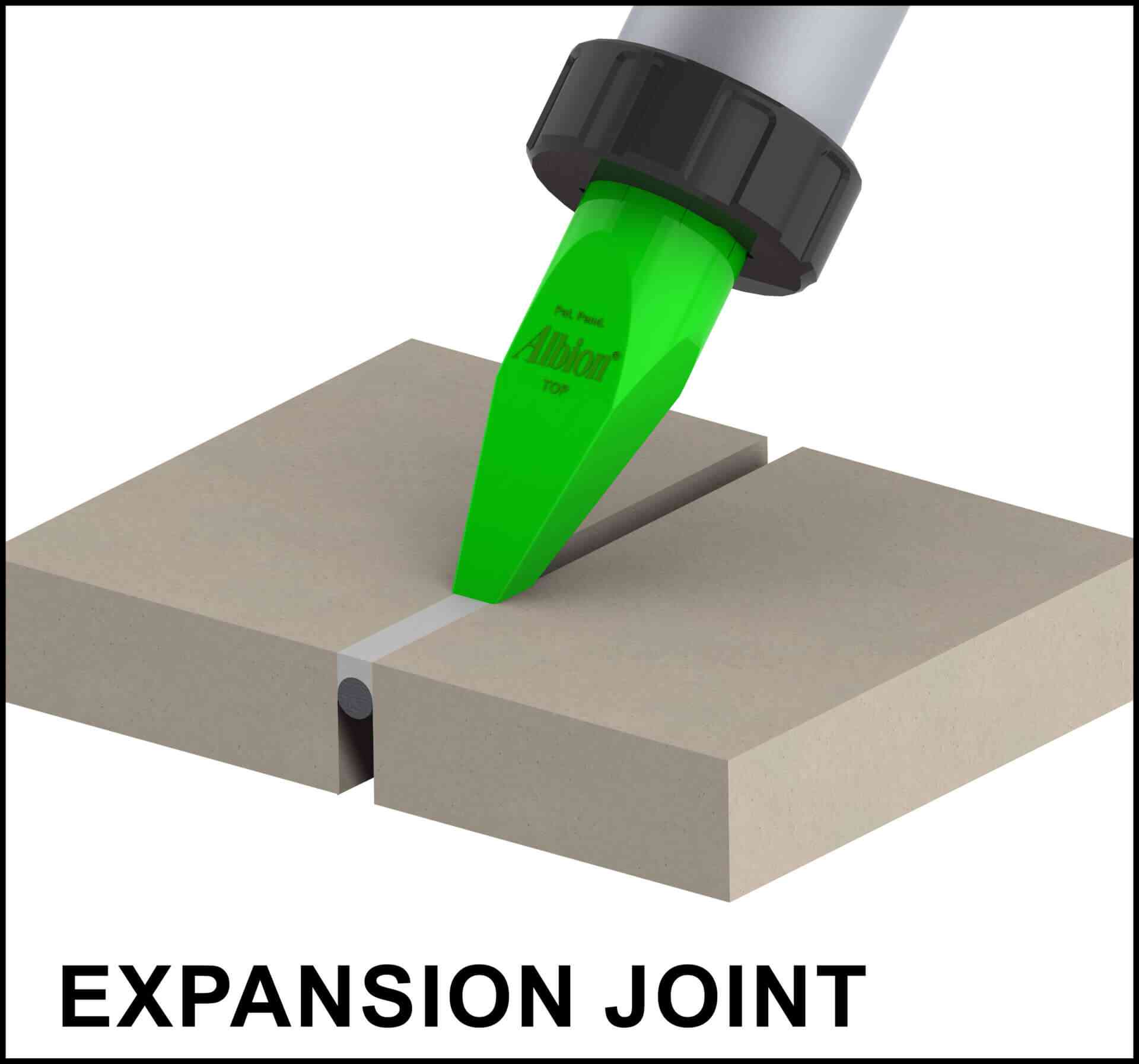

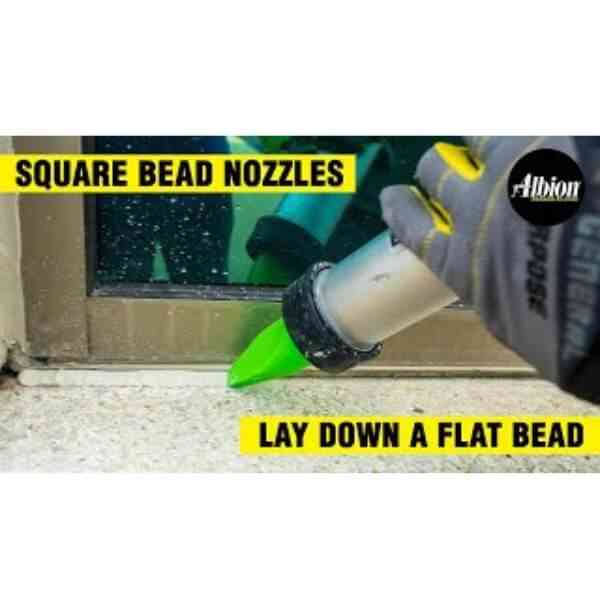

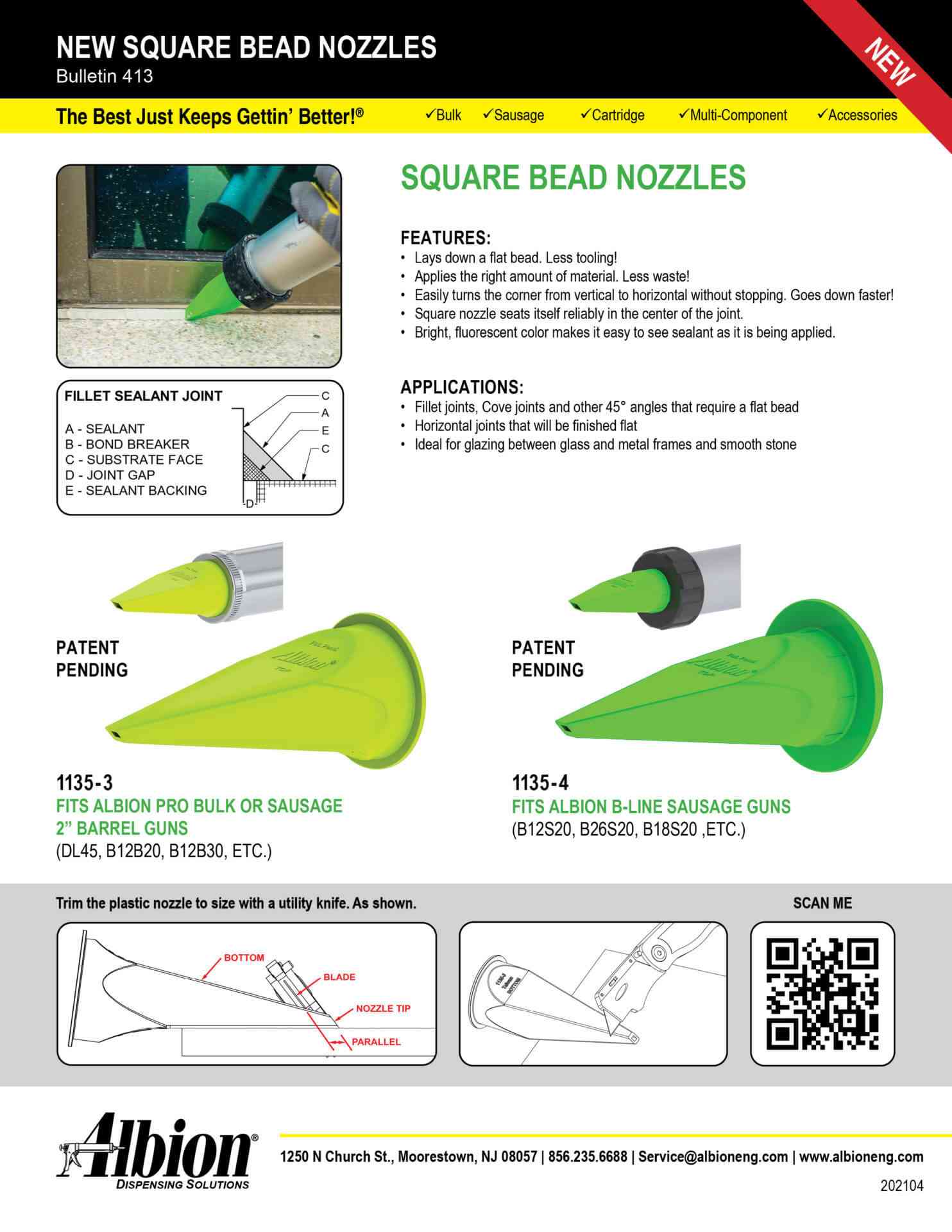

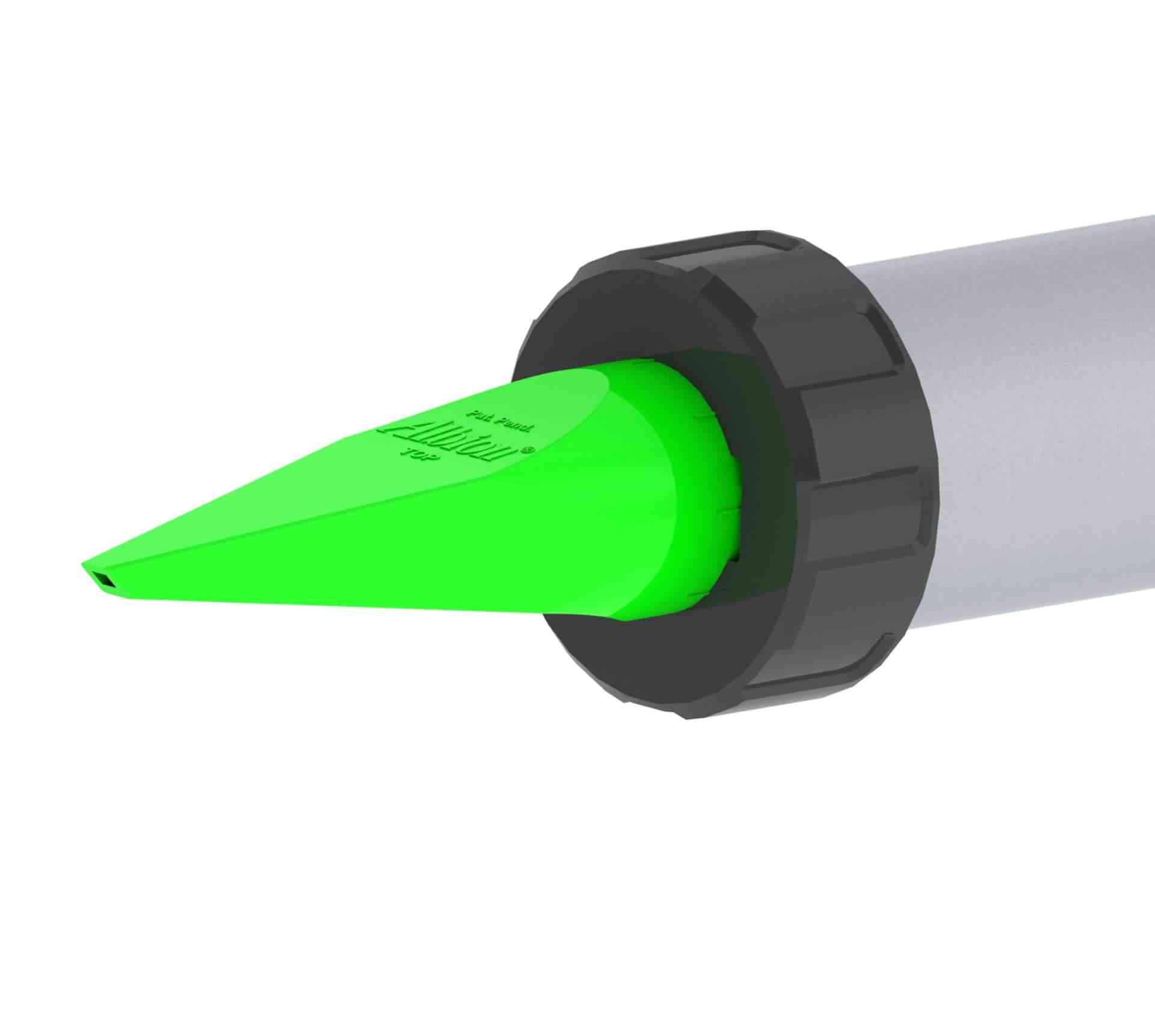

The Albion 1135-4 Green Square Bead Nozzle is a trim-to-size plastic tip for Albion B-Line 2" barrel sausage guns that centers itself in the joint to lay a flat, uniform square bead with less tooling and waste. Its bright fluorescent green color improves visibility of the sealant flow, while the outlet can be cut with a utility knife to match joint size for glazing, fillet/cove, and other flat-bead applications. Sold as a 25-pack to speed production across long runs and repetitive joints.
Key Features:
-
Square-bead geometry seats in the joint for flat, uniform beads with less tooling
-
Trim-to-size outlet; customize opening quickly with a utility knife
-
High-visibility green color helps track bead placement during application
-
Designed for Albion B-Line 2" barrel sausage guns (use correct ring/front cap)
-
Ideal for glazing, fillet and cove joints, and long repetitive runs
Specifications
- Model/Series: Square Bead Nozzle
-
SKU(s): 1135-4
-
MPN: 1135-4
-
Bead Profile: Square, flat bead
-
Tip Style: Trim-to-size plastic outlet
-
Compatibility: Albion B-Line 2" barrel sausage guns (e.g., B12S20, B26S20) with proper ring/front cap
-
Color/Finish: Fluorescent green
-
Typical Uses: Glazing; fillet and cove joints; flat horizontal joints
-
Includes: (25) Green Square Bead Nozzles (1135-4)
How To
- Determine the required joint width and mark the outlet.
-
Trim the plastic tip to size with a sharp utility knife.
-
Install the correct ring/front cap for your B-Line gun and seat the nozzle securely.
-
Purge material until flow is steady; center the nozzle in the joint.
-
Apply at a consistent angle and travel speed for a flat, uniform square bead.
-
Relieve pressure after use; wipe and clean before material cures (or dispose).
FAQs
Q: Which applicators does the 1135-4 fit?
A: Albion B-Line 2" barrel sausage guns using the correct ring/front cap.
Q: Is the outlet adjustable?
A: Yes. Trim the plastic tip with a utility knife to match the joint size.
Q: What applications benefit most?
A: Glazing and fillet/cove joints where a flat, square bead is preferred.
Q: Can these nozzles be reused?
A: They can be reused if cleaned before the sealant cures; otherwise treat as disposables.
Q: Do I need a special cap to mount the nozzle?
A: Yes. Use the appropriate ring/front cap for your B-Line gun model.
