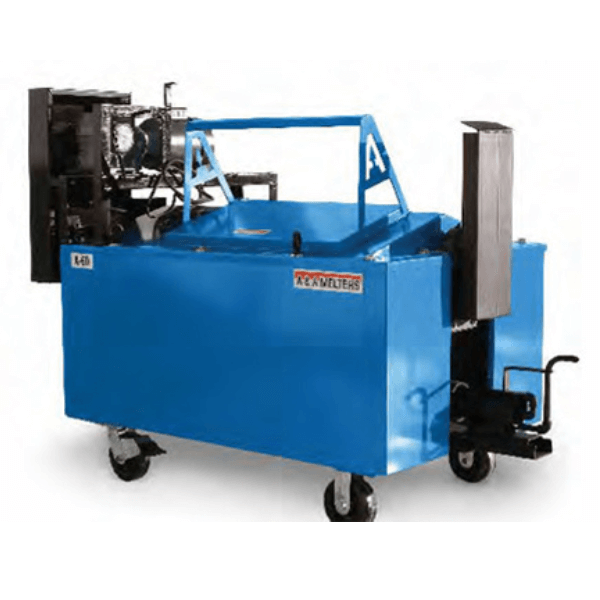

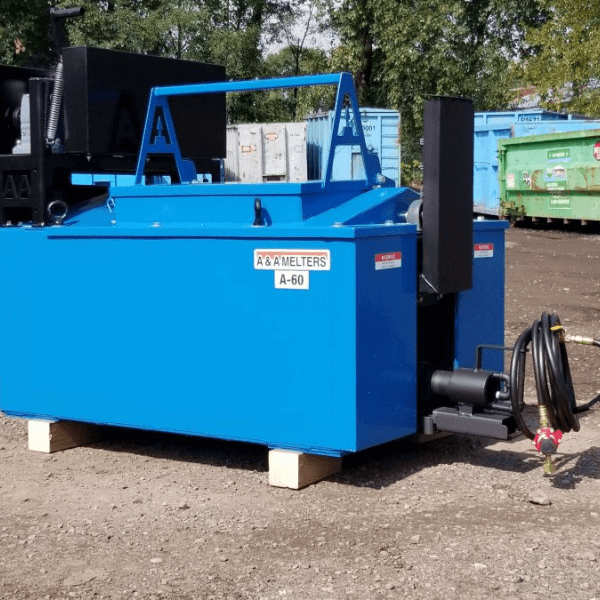

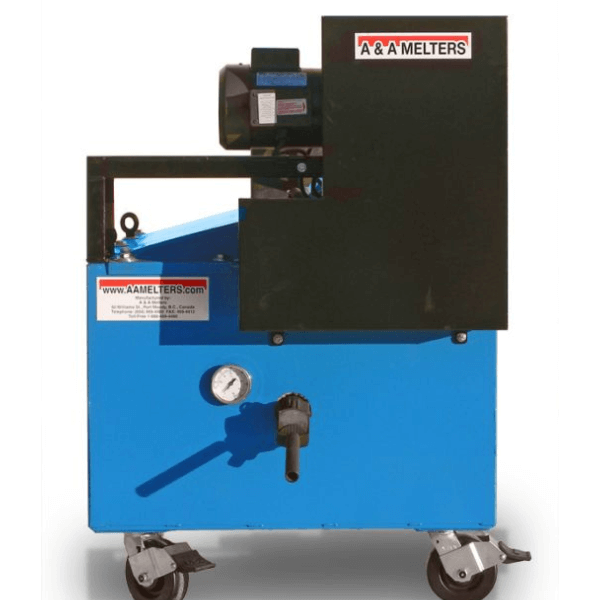

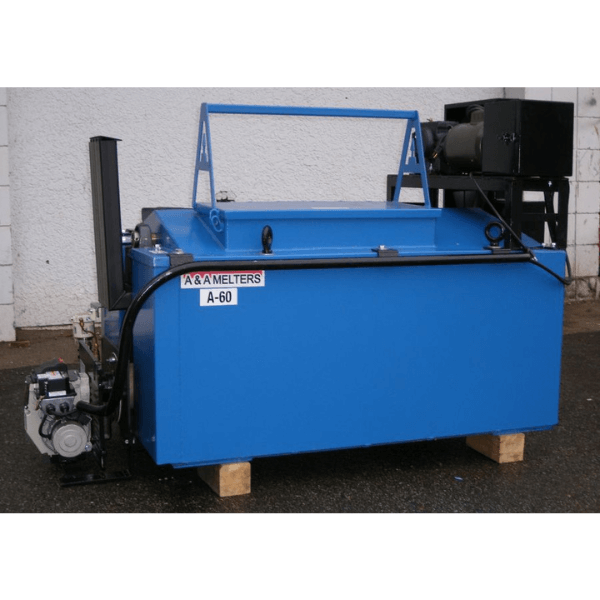

A&A Melters, A-60 Hot Rubber Melter – 60 Gal Compact Melter

The A-60 hot rubber melter from A&A Melters is a 60-gallon, air-jacketed kettle for heating and melting rubberized asphalt and similar roofing materials. It’s sized for mid-range commercial roofing and crack-sealing jobs, offering a balance of capacity and portability for work that’s larger than small service tasks but below heavy-production needs.

This melter uses oil-free air-jacketed construction with a stainless-steel fire tube to deliver heat efficiently without heat-transfer fluids. Standard agitator drive options and fuel sources give crews flexibility on diverse jobsites.

Key Features

• 60 US gallon capacity hot rubber melter kettle
• Oil-free, air-jacketed construction for cleaner heating
• 4″ Schedule-80 stainless-steel fire tube
• Multiple agitator drive options (Honda gas engine, 110 V electric, or optional diesel)
• Standard propane burner with optional Beckett diesel burner
• Fits through standard 34″ doorways and commercial elevators
• Optional accessories: casters, pump systems, temperature controls, trailer mount

Capacity: 60 US gallons

Heat-up time: ~30 minutes

Output: Approx. 50 gal/hr at ~78.9 % efficiency

Fire tube: 4″ Sch 80 stainless-steel pipe

Agitator drive: Honda 4 HP air-cooled engine, 110 V electric, or optional diesel

Burner: Adjustable propane 500,000 BTU; optional Beckett diesel

Dimensions (melter only): ~59″ L × 33 ⅝″ W × 45″ H

Weight: ~1,250 lb

Shell: Inner 3/16″ rolled steel; outer 1/8″ rolled steel

Insulation: ½″ super high-temp + 2″ high-temp fiberglass jacket

• Position the melter on a stable, level surface or secure it on trailer/casters if installed.
• Connect the fuel system—propane or optional diesel burner—and verify all fittings and seals.
• Ignite burner and gradually raise temperature until material begins to soften.
• Engage chosen agitator drive once material starts melting, ensuring smooth mixing.
• Load material steadily, avoiding thermal shock.
• Monitor melt consistency and maintain temperature, aiming for ~79% efficiency.
• Use optional pump system when material is fully molten.
• Upon completion, shut down fuel, allow the unit to cool thoroughly, and prepare for transport.

Q: How fast does the A-60 reach working temperature and what is the output?

A: It reaches temperature in about 30 minutes and delivers approximately 50 gallons per hour at ~79% efficiency.

Q: What agitator options are available?

A: It comes standard with a Honda 4 HP engine or 110 V electric drive, with an optional diesel drive available.

Q: Can it be used in elevators or tight spaces?

A: Yes—its compact dimensions allow it to fit through standard 34″ doorways and commercial elevators.

Q: What fuel options does it support?

A: Standard configuration uses propane burners; Beckett diesel burner is available optionally.

Q: Are there mobility accessories available?

A: Yes—optional casters, pump systems, temperature controls, and trailer mounting kits enhance jobsite mobility.
