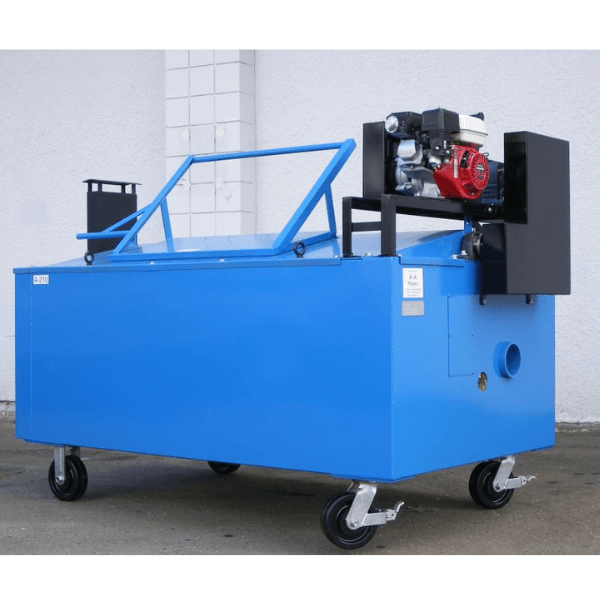

A&A Melters, A-210 Hot Rubber Melter – 200 Gal High-Capacity Melter

The A-210 hot rubber melter from A&A Melters is a high-capacity, air-jacketed kettle for heating and melting rubberized asphalt and similar roofing materials. With a 200 gallon capacity, it is intended for large-scale roofing and crack-sealing applications where continuous material throughput is required.

This unit uses an oil-free air-jacketed design and stainless-steel fire tubes to help prevent charring and simplify maintenance. Standard agitator and burner options support consistent mixing and heat delivery for demanding jobsite conditions.

Key Features

• 200 US gallon capacity kettle for hot rubber and asphaltized materials
• Oil-free air-jacketed construction to help reduce charring and cleanup
• 5″ Schedule-80 stainless-steel fire tubes for durability
• Standard Honda 5.5 HP engine agitator (gas); electric or optional diesel available
• Adjustable propane burner standard; diesel burner option available

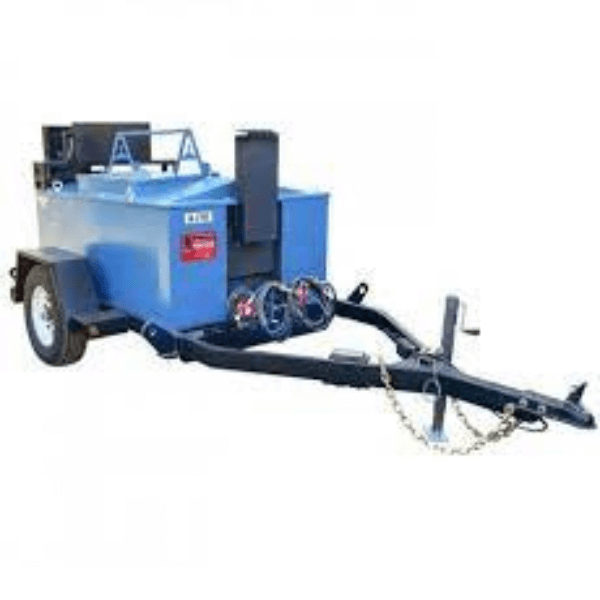

• Optional accessories: trailer mount, pump systems, auto temperature controls

Capacity: 200 US gallons

Heat-up time: typically 45–55 minutes

Estimated output: ~180 gal/hr (~79 % efficiency)

Fire tube: 5″ Schedule-80 stainless-steel pipe

Agitator options: Honda 5.5 HP air-cooled engine, 110 V electric, optional diesel

Burner: Adjustable liquid propane standard; optional diesel

Dimensions (melter only): approx. 88″ L × 48″ W × 54″ H

Weight (melter only): approx. 2,100 lb

• Position melter stably; mount onto trailer if equipped and lock it securely.
• Connect propane supply and ensure secure fittings for pressure.
• Ignite burners carefully, allowing gradual preheat and avoiding thermal shock.
• Engage agitator (engine, electric, or diesel) when material begins melting.
• Load material steadily while monitoring mixing and temperature.
• Aim for consistent material output near 180 gal/hr and track melt efficiency.
• Activate pump if fitted once material is fully molten.
• After operation, shut off burners, allow cooling, then clean and prepare for storage or transport.

Q: What heat-up time and output does the A-210 offer?

A: It heats up in about 45–55 minutes and delivers approximately 180 gallons per hour at around 79% efficiency.

Q: What agitator options are available?

A: Standard is a Honda 5.5 HP engine drive; 110 V electric or diesel agitator drive is optionally available.

Q: Can it be customized for trailers or pumping?

A: Yes—optional trailer mounts, pump system, and auto temperature control packages are available for enhanced functionality.

Q: Is it oil-free and safe for materials?

A: Yes—its air-jacketed, oil-free design ensures clean processing and prevents material charring.

Q: How robust is its construction?

A: It features a thick rolled-steel shell, heavy insulation, and stainless steel fire tubes built for durability and frequent use.
