Van Mark - IM1065 - Industrial Metal Master, 20 EZ

The Van Mark IM1065 Industrial Metal Master 20 EZ is a professional-grade, 10' 6" portable metal brake built for demanding metal roofing, siding, and commercial trim work. With a deep 20" throat and rugged cam-locking design, it handles everything from “W” style valley pans and rake edges to wide hip and ridge caps, HVAC duct, and plenum work right on the jobsite. Lighter yet stronger new castings, a stable EZ stand, and smooth one-hand bending control make it a serious production tool for contractors who need speed, precision, and durability all day, every day.

Key Features

• 20" Deep Throat Capacity
  Lets you form complex commercial roofing profiles, wide flashings, and oversized trim pieces that standard brakes can’t handle.
• Industrial POWERlock™ Cam Locking System
  Heavy-duty cam locks provide tight, consistent clamping without constant adjustments when you change materials, reducing setup time and rework.
• POWERslot™ Hinge with 5/8" Auto-Hem
  Built-in hem gauge “auto-measures” a 5/8" hem, simplifying hems and over-bends for cleaner, more repeatable results.
• New Lighter, Stronger Castings
  Redesigned C-castings are engineered to be lighter for easier transport while clamping tighter for more accurate bends under heavy use.
• Extended Bending Handles (4-Point Lift)
  Full-loop, extended handles apply force at multiple points along the hinge, improving leverage and helping produce straighter, more even bends with less effort.
• Master Stand EZ Included
  Center-weighted wheels and a low-profile extended platform make the brake easy to move around the jobsite; stand disassembles quickly for transport and storage.
• Heavy-Gauge Metal Capacity
  Designed to bend and hem 24, 26, and 29 gauge painted steel, as well as aluminum and other common roofing and siding metals used in industrial and commercial work.
• Jobsite-Ready Versatility
  Ideal for valley pans, rake edges, soffits, roof flashings, hip and ridge caps, and HVAC duct/plenum work, giving you a one-stop bending solution on site.

Overall Length: 10 ft 6 in
Throat Depth: 20 in
Maximum Bending Capacity:

• 24 ga steel
• 0.030 in aluminum
• 28 oz copper
• 16 oz stainless (varies by alloy)

Bending Hinge: POWERslot™ hinge with 5/8" auto-hem feature
Clamping System: POWERlock™ cam locking system (dual heavy-duty cams)
Handle Type: Extended full-loop 4-point bending handles
Base Width: Approx. 20–24 in (varies slightly with stand)

Included Stand: Master Stand EZ (with wheels and extended low-profile platform)
Dimensions on Stand: Approx. 42–45 in height (varies by adjustment)

Weight: Approx. 200–225 lbs (brake + stand combined; brake alone typically in the 180–200 lb range)

Material:

• Aircraft-grade aluminum extrusions
• High-strength cast aluminum C-castings
• Hardened steel hinge components
• Powder-coated steel stand

Max Hem Depth: 5/8 in auto-hem
Operation: Manual, portable, jobsite use

Base Rails: Van Mark brakes have 2 full base rail extrusions for a full frame brake and the castings are mounted on top of them. Other brakes have a rear rail but do not have a separate front base rail. This is why other brakes can twist and struggle with anything thicker than .019 aluminum.

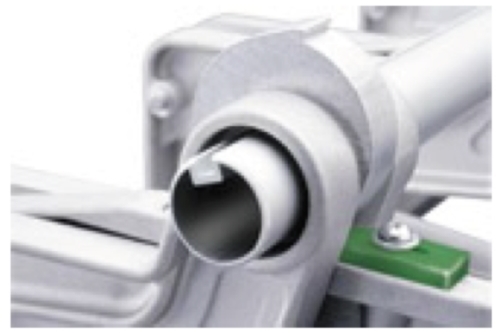

Cam Locking system: Van Mark brakes use a simple 2 piece rotating cam and wedge that self adjusts to different material thicknesses. Other manufacturers use a complicated toggle lock that "pops" closed causing metal contact and wear, as well as requires manual adjustments for different material thicknesses. With fewer moving parts the cam and wedge system requires minimum maintenance.

Castings: Van Mark brakes use a cast aluminum base and cast aluminum top locking arm. Others use a combination of cast aluminum and a lesser quality aluminum angle for their top locking arm.

Locking Handle: The Van Mark brakes lock by pushing handle away from the user which is a more efficient way to keep the handle out of the way on large bends. If a user learned on other brakes, they may be used to locking brakes backwards. A few days of use and they are typically used to the more efficient Van Mark way.

Bending Handle: Van Mark uses full loop handles with 2-4 integrated contact points that allow for truer bends. Other brakes use independent stick handles prone to uneven bends. Also, the Van Mark handle posts don't catch and break when loading the brake on and off a truck.

Q: What materials can the Van Mark IM1065 Industrial Metal Master 20 EZ bend?
A: The IM1065 is designed for common roofing and siding metals, including aluminum trim coil, painted steel (typically 24–29 ga), and copper. It’s ideal for fabricating fascia, drip edge, valleys, rake edges, and other custom flashings on the jobsite.

Q: What is the maximum bending width and throat depth of this brake?
A: The IM1065 offers an overall working length of about 10' 6" and a deep 20" throat. That extra depth lets you form wider pans, flashings, and commercial profiles that smaller brakes can’t handle.

Q: Does the Industrial Metal Master 20 EZ come with a stand or do I need to buy one separately?
A: This model is commonly paired with the Master Stand EZ, which provides a stable platform and wheels for transport. Many packages include the stand, but availability can vary by dealer, so it’s always best to confirm if the stand is included or sold separately.

Q: Is there any regular maintenance required for the IM1065?
A: Routine maintenance is minimal. Keep the hinge and working surfaces clean, avoid dropping heavy objects on the apron or clamp, periodically check and tighten fasteners, and store the brake on its stand or a flat surface to prevent twisting. With normal care, the IM1065 is built to deliver years of reliable, accurate bending.
