Price: $115.95
Item #TDE-65014
Write a review!
Description
The Tie Down 65014 Steep Slope Guardrail is a safety railing system engineered for steep roofs, offering adjustable pitch settings to align with roof slopes and maintain a vertical guardrail orientation. The guardrail bracket can be set to five distinct slope positions—from 4/12 up to 16/12—to accommodate a wide range of roof angles. It is lightweight and includes a carry handle, extra wing nut and bolt, and is rated for maximum spacing of 8 ft between brackets.
Key Features
-

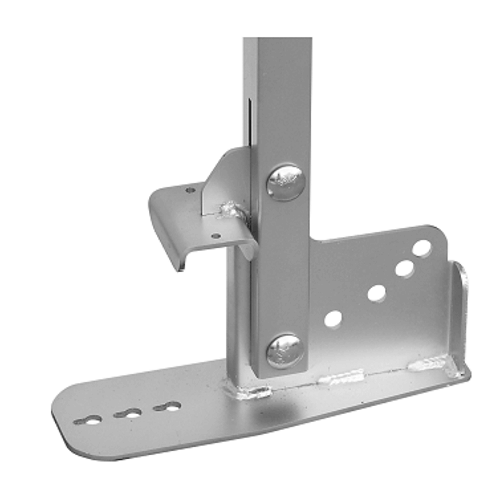

Adjustable pitch bracket spans 5 settings from 4/12 up to 16/12
-
Designed for maximum spacing of 8 ft between supports
-
Lightweight design with integrated handle for jobsite portability
-
Includes an extra wing nut and bolt for convenience
-
Meets OSHA 1926.502 (b)(1) guardrail standard for steep slopes
Specifications
- SKU: 65014
-
Product name: Steep Slope Guardrail
-
Adjustable pitch positions: 5 (4/12, 6/12, 8/12, 12/12, 16/12)
-
Maximum spacing: 8 ft
-
Rail length: 49 in
-
Bracket width: 13 in
-
Bracket height: 7 in
-
Unit weight: 6 lb
-
Material: steel with pre-galvanized rail tube and zinc-plated bracket
-
Pack count: 2 per carton
-
Warranty: 1 Year Limited
-
Compliance: OSHA 1926.502 (b)(1)
How To
- Mount the base bracket using three deck screws or equivalent into a structural rafter or truss.
-
Adjust the bracket to the roof slope and secure with the wing nut and bolt.
-

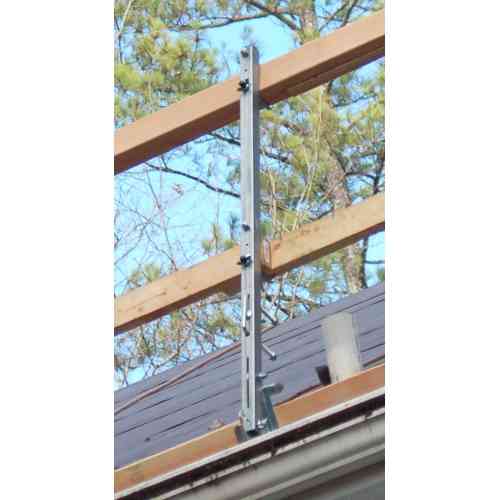

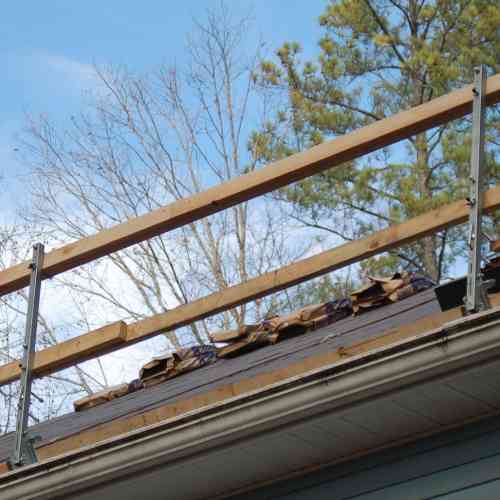

Insert 2 × 4 rails into the bracket holders for both mid-rail and top rail placement.
-
Maintain a maximum spacing of 8 ft between brackets.
-
Use the integrated handle to carry and reposition as needed.
-
Inspect rails, wing nut, and all fasteners before use.
FAQs
Q: What roof pitch range does the 65014 guardrail support?
A: It supports five adjustable settings from 4/12 to 16/12.
Q: What is the maximum distance between guardrail brackets?
A: 8 ft maximum spacing.
Q: How much does each bracket weigh?
A: Approximately 6 lb per unit.
Q: What materials are used in construction?
A: Steel with pre-galvanized rail tube and zinc-plated bracket.
Q: What OSHA requirement does it meet?
A: It meets OSHA 1926.502 (b)(1) for steep slope guardrails.
