Price: $294.95
Item #TDE-71094
Write a review!
Description

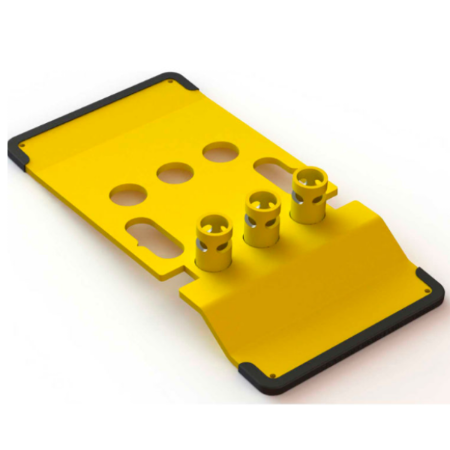

The Tie Down 71094 Socket Guardrail Base Assembly is a non-penetrating guardrail base engineered for rooftop edge safety without drilling into the roof substrate. It is the lightest guardrail base in the United States at approximately 58 lb and features nesting/storage capable plates, toe board slots, and handle holes for easier handling. Designed for both temporary and permanent applications, it meets OSHA 1910 and 1926.502 standards and installs without tools, offering over 30% faster deployment.
Key Features
-
Weighs about 58 lb, making it the lightest guardrail base in the U.S.
-
Non-penetrating design—installs without drilling into roof substrate
-
Toe board slots and integrated handle holes for safer handling
-
Plates nest and stack for compact storage and transport
-
Meets OSHA 1910.29 and 1926.502 compliance
Specifications
- SKU: 71094
-
Product name: Yellow Socket Guardrail Base Assembly
-
Weight: 55.70 lb (approximately 58 lb marketed)
-
Color / finish: Yellow (powder coated)
-
Length: 29.00 in
-
Width: 14.50 in
-
Height: 5.00 in
-
Compliance: OSHA 1910.29, 1926.502
-
Warranty: 1-Year Limited
-
Design features: toe board slots, handle holes, stackable / nestable plates
-
Installation: tool-free set up, non-penetrating placement
-
Application types: suitable for both permanent and temporary guardrail systems
How To
- Position the base assembly at the desired guardrail location on the roof edge.
-
Align the socket to accept the guardrail uprights.
-
Slide guardrail posts into the socket base until fully seated.
-
Use toe board slots to insert toe board if required.
-
Use handle holes to maneuver and adjust the base during setup.
-
Inspect seating stability and alignment before allowing personnel access.
FAQs
Q: How much does the 71094 base weigh?
A: Approximately 55.70 lb (marketed as about 58 lb).
Q: Does the 71094 base penetrate the roof?
A: No. It is a non-penetrating design and installs without drilling.
Q: What standards does it meet?
A: It is compliant with OSHA 1910.29 and 1926.502 for guardrail systems.
Q: What handling features are included?
A: The base includes toe board slots and integrated handle holes to assist handling and installation.
Q: Can the base plates nest or stack?
A: Yes — the plates are designed to nest and stack for compact storage and transport.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
