Must be ordered in box quantities of 10 units
$35.60 per Strut / $356.00 per Box of 10
Price: $35.60
Item #OMG-PGSTRUT6-BK
Write a review!
Description

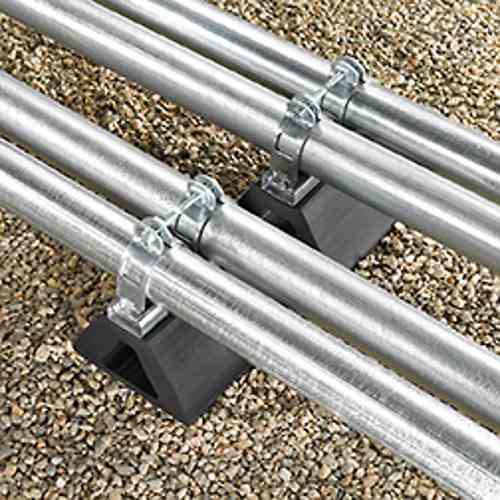

The PGSTRUT6-BK is a fixed-height, strut-model PipeGuard from OMG designed to support rooftop pipes, conduit, or copper tubing up to 5-inches in combined diameter. Its EPDM base protects the roof membrane, while the galvanized strut channel accommodates single or multiple pipes using strut clamps sold separately. At 4-inches height and 6-inches width, it offers excellent stability and high load performance (800 lbs), ideal for commercial solar conduit or mechanical plumbing runs.
Key Features
-
designed to support pipes up to 5 inches in total diameter
-
fixed height of 4 inches off roof surface to minimize profile
-
base made of heavy-duty EPDM to prevent damage to membrane
-
includes 1 5⁄8-inch galvanized strut channel for single or multi-pipe mounting
-
high load-rating (800 lbs per support) for robust performance
Specifications
- item number: PGSTRUT6-BK
-
material: heavy-duty black EPDM base with galvanized strut channel
-
compatible pipe size: up to 5 inches diameter (single or multiple pipes)
-
height: fixed 4 inches above roof surface
-
width: 6 inches
-
maximum load capacity: 800 lbs per unit
-
box quantity: 10 units per box
-
box weight: 25 lbs
How To
- Place the PGSTRUT6-BK on the roof surface where needed, making sure the base sits flat.
-
Position the pipe(s) on the strut channel portion.
-
Attach strut clamps (sold separately) to secure pipe(s) within the channel.
-
Verify pipe(s) alignment and ensure there is room for thermal expansion.
-
Check that the height is correct (4 inches) and support is stable.
-
Periodically inspect clamps and guard for loosening, shifting or material fatigue.
FAQs
Q: What maximum pipe diameter can PGSTRUT6-BK handle?
A: Up to 5 inches total diameter for single or combined pipes.
Q: How high does this Strut model lift the pipe?
A: Fixed 4 inches above the roof surface.
Q: What is the load capacity of this unit?
A: 800 lbs per support.
Q: What material is the base, and what part is galvanized?
A: Basis is heavy-duty EPDM rubber; the strut channel is galvanized steel.
Q: Does PGSTRUT6-BK include clamps?
A: No; strut clamps are sold separately.
