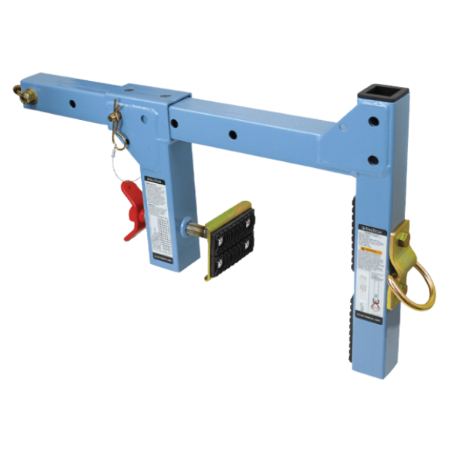

FallTech 7460A - Adjustable Parapet Wall Anchor

This anchor is designed for secure attachment to parapet walls without penetrating the structure. It clamps onto parapets from ½″ to 15″ thick and requires a minimum height of 9″. Protective rubber pads prevent damage to surface material. The anchor includes a primary D-ring for fall arrest, restraint and suspension applications and an additional D-ring for optional tie-back use.

Key features:

• Tool-free clamp-on installation with no fasteners required
• Adjustable to fit parapet wall thicknesses from ½″ to 15″ and minimum height of 9″
• Protective rubber pads protect parapet surfaces from damage
• Primary D-ring for fall arrest/ restraint/ suspension plus optional tie-back D-ring

• SKU: 7460A
• Fits parapets: thickness ½″ to 15″; minimum height 9″
• Static strength: minimum 5,000 lb
• ANSI user capacity: 130 to 310 lb max
• OSHA user capacity: 130 to 425 lb max
• Construction: powder-coated tubular steel frame
• Adjustment clamp: stainless steel
• Tie-back ring: alloy steel
• Compliance: OSHA 1926.502 and 1910.66

Q: Can this anchor be used on parapet walls thinner than ½″ or thicker than 15″?
A: No — it is specified to fit parapet walls between ½″ to 15″ thick; installing on walls outside that range may not provide adequate clamp engagement.

Q: How do the protective rubber pads help during installation?
A: They prevent the anchor’s frame from marring or damaging the parapet wall surface while still maintaining a secure clamped connection.

Q: When should the optional tie-back D-ring be used?
A: Use the additional D-ring when a tie-back anchorage is required by your fall-protection plan, such as when a horizontal lifeline is installed or when repositioning is needed.

Q: What inspection should be done before each use?
A: Before each use verify that the clamp secures the parapet wall fully, the rubber pads are intact, both D-rings are free of deformation or corrosion, and the parapet wall thickness and height remain within the specified range.
