Package Quantity: 250 per box
Price: $497.05
Item #OMG-XHD016
Write a review!
Description

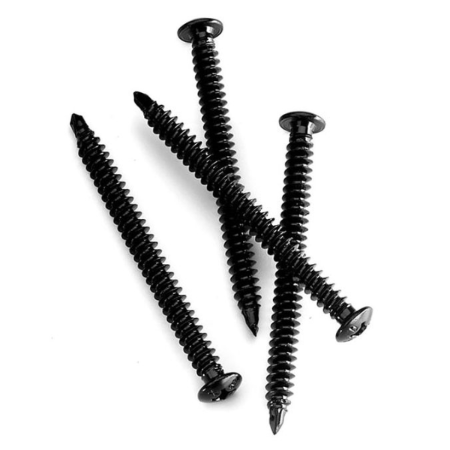

The OMG XHD016 is a 16-inch #15 Extra Heavy Duty roofing fastener designed for very thick roof insulation and membrane assemblies installed into light gauge steel, OSB, plywood, and aluminum decks. Its oversized shank and threads maximize pull-out strength. Deep buttress threads reduce pull-out and back-out, while the miniature drill point provides quick penetration. The CR-10 coating ensures superior corrosion protection.
Key Features:
-
Oversized shank and threads provide high pull-out resistance
-
Deep buttress thread design helps prevent pull-out and back-out
-
Miniature drill point delivers fast penetration into substrates
-
#3 Phillips truss head for reliable installation with screw guns
-
CR-10 corrosion-resistant coating, FM and Miami-Dade approved
Specifications
- SKU / Model: XHD016
-
Thread diameter: 0.265 in (6.73 mm)
-
Shank diameter: 0.202 in (5.13 mm)
-
Head diameter: 0.435 in (11.04 mm), #3 Phillips truss
-
Thread pitch: 13 threads per inch (full thread)
-
Point type: miniature drill point
-
Coating: CR-10 corrosion-resistant coating (FM 4470 and EAD 030351-00-0402 compliant)
-
Length: 16 in (406 mm)
-
Weight per box: ~63 lbs (28.5 kg)
How To
- Select the fastener length by adding insulation and membrane thickness plus embedment requirement.
-
Drill a pilot hole if needed depending on deck conditions.
-
Align the fastener perpendicular to the deck with plate if required.
-
Drive the fastener using a #3 Phillips bit until head is flush and a slight depression forms; avoid overdriving.
-
Confirm insulation boards and plates are flat and secure.
-
Perform field pull tests to validate anchorage strength.
FAQs
Q: What substrates can XHD016 be installed in?
A: It is designed for light gauge steel (20 GA and lighter), OSB, plywood, and aluminum decks.
Q: How many fasteners come in a box of XHD016?
A: 500 per box.
Q: Does XHD016 have FM and Miami-Dade approval?
A: Yes, it meets FM 4470 requirements and is Miami-Dade accepted.
Q: What embedment depths are required for installation?
A: At least ¾ in through steel or aluminum flute, ¾ in through OSB/plywood underside, and minimum 1 in into wood plank.
Q: What corrosion protection is applied to XHD016?
A: It features the CR-10 corrosion-resistant coating for long-term protection against rust.
