Package Quantity: 500 per box
Price: $602.89
Item #OMG-XHD010B
Write a review!
Description

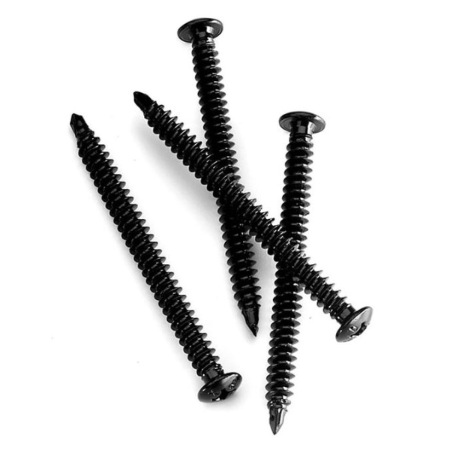

The OMG XHD010B is a 10-inch #15 Extra Heavy Duty roofing fastener designed for thick insulation and membrane assemblies on steel, OSB, plywood, or aluminum decks. It features oversized shank and thread diameters for superior pull-out strength, deep buttress threads for resistance against pull-out and back-out, and a miniature drill point for easy penetration. The CR-10 coating ensures long-lasting corrosion resistance.
Key Features:
-
Oversized shank and threads provide high pull-out resistance
-
Deep buttress thread profile resists pull-out and back-out
-
Miniature drill point allows quick penetration into substrates
-
#3 Phillips truss head for secure driving with screw guns
-
CR-10 corrosion-resistant coating, FM and Miami-Dade approved
Specifications
- SKU / Model: XHD010B
-
Thread diameter: 0.265 in (6.73 mm)
-
Shank diameter: 0.202 in (5.13 mm)
-
Head diameter: 0.435 in (11.04 mm), #3 Phillips truss
-
Thread pitch: 13 threads per inch (full thread)
-
Point type: miniature drill point
-
Coating: CR-10 corrosion-resistant coating (FM 4470 and EAD 030351-00-0402 compliant)
-
Length: 10 in (254 mm)
-
Weight per box: ~76 lbs (34.47 kg)
How To
- Select fastener length based on insulation and membrane thickness plus embedment requirement.
-
Drill a pilot hole if required for substrate type.
-
Position fastener perpendicular to deck with plate if used.
-
Drive with a #3 Phillips bit until seated flush with slight depression; avoid overdriving.
-
Confirm insulation boards and plates remain flat and secure.
-
Conduct pull tests in representative areas to confirm performance.
FAQs
Q: What substrates can XHD010B be installed in?
A: It is approved for light gauge steel (20 GA and lighter), OSB, plywood, and aluminum decks.
Q: How many fasteners are packaged per box?
A: 1,000 per box.
Q: Does XHD010B meet FM and Miami-Dade requirements?
A: Yes, it is FM approved and Miami-Dade accepted.
Q: What embedment depths are required for installation?
A: At least ¾ in through steel or aluminum flute, ¾ in through OSB/plywood underside, and minimum 1 in into wood plank.
Q: What corrosion protection is used on XHD010B?
A: CR-10 corrosion-resistant coating designed to minimize rust and extend durability.
