Package Quantity: 500 per box
Price: $424.97
Item #OMG-CRHD9B
Write a review!
Description

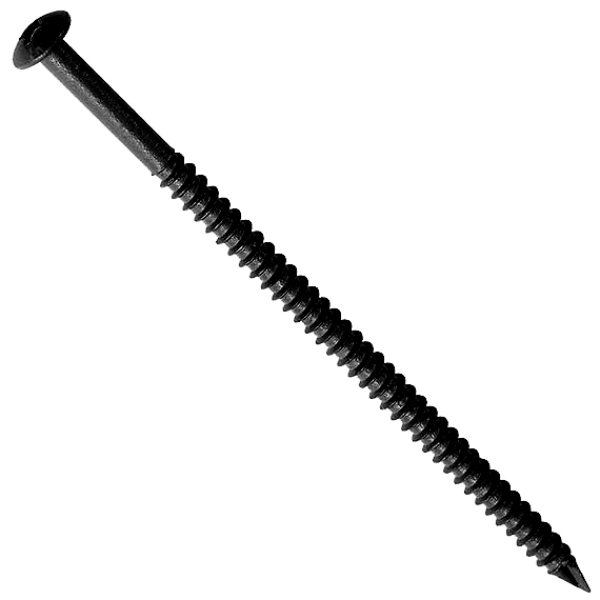

The OMG CRHD9B is a 9-inch #14 heavy duty roofing fastener used to secure insulation and membranes to common roof decks. Deep thread geometry delivers strong pull-out resistance. A 30° spade point speeds penetration, and the CR-10 finish provides corrosion resistance.
Key Features:
-
Deep thread profile for high pull-out resistance
-
30° spade point for fast starts and penetration
-
CR-10 corrosion-resistant coating for durability
-
#3 Phillips truss head compatible with standard screw guns
-
9-inch length accommodates thicker assemblies
Specifications
- SKU / Model: CRHD9B
-
Thread diameter: 0.245 in (6.22 mm)
-
Shank diameter: 0.190 in (4.82 mm)
-
Head diameter: 0.435 in (11.04 mm), truss Phillips #3
-
Thread pitch: 10 threads per inch
-
Point type: 30° spade point
-
Coating: CR-10 corrosion-resistant coating
-
Length: 9 in (230 mm)
-
Threaded length: 4 in (102 mm)
-
Minimum embedment (steel): ¾ in (20 mm)
-
Minimum embedment (wood): 1 in (25 mm)
-
Minimum embedment (concrete): 1 in (25 mm)
-
Pilot hole: 3⁄16 in (5 mm), drilled at least ½ in (13 mm) deeper than embedment
How To
- Determine required fastener length using assembly thickness plus minimum embedment.
-
Drill a 3⁄16 in (5 mm) pilot hole at least ½ in (13 mm) deeper than the embedment depth as required.
-
Place the fastener so the head sits flush with the plate, insulation, or membrane surface.
-
Drive using a #3 Phillips bit until a slight depression forms around the plate; do not overdrive.
-
Verify plates and boards are flat and secure, then perform representative pull tests.
FAQs
Q: What corrosion protection does CRHD9B use?
A: CR-10 coating provides corrosion resistance suitable for roofing environments.
Q: Which substrates are compatible?
A: Steel, wood, and structural concrete when pilot drilled and embedded to the minimum requirements.
Q: How many fasteners are in each box?
A: 500 per box.
Q: What pilot hole size is recommended?
A: 3⁄16 inch (5 mm), drilled at least ½ inch deeper than the embedment depth.
Q: Do I need to conduct pull tests?
A: Yes, pull tests are recommended to confirm anchorage in the actual substrate.
