Package Quantity: 250 per box
Price: $508.84
Item #OMG-CRH16
Write a review!
Description

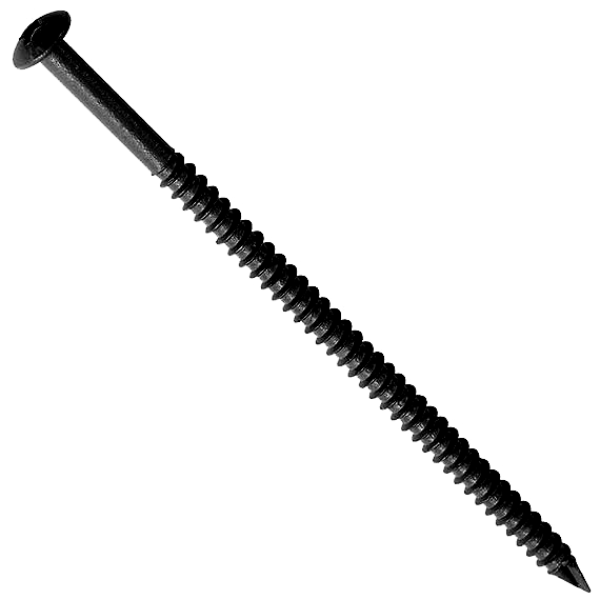

The OMG CRH16 is a 16-inch #14 heavy duty roofing fastener designed for extra-thick roof insulation and membrane systems. Its deep thread design provides high pull-out resistance. A 30° spade point ensures fast starts and penetration, while the CR-10 finish offers long-lasting corrosion resistance.
Key Features:
-
Deep thread profile for high pull-out strength in roof decks
-
30° spade point allows rapid penetration into substrates
-
CR-10 corrosion-resistant coating reduces rust and extends service life
-
#3 Phillips truss head compatible with screw guns
-
16-inch length supports exceptionally thick roofing assemblies
Specifications
- SKU / Model: CRH16
-
Thread diameter: 0.245 in (6.22 mm)
-
Shank diameter: 0.190 in (4.82 mm)
-
Head diameter: 0.435 in (11.04 mm), truss Phillips #3
-
Thread pitch: 10 threads per inch
-
Point type: 30° spade point
-
Coating: CR-10 corrosion-resistant coating
-
Length: 16 in (406 mm)
-
Threaded length: 4 in (102 mm)
-
Minimum embedment (steel decks): ¾ in (20 mm)
-
Minimum embedment (wood decks): 1 in (25 mm)
-
Minimum embedment (concrete decks): 1 in (25 mm)
-
Pilot hole: 3⁄16 in (5 mm), drilled at least ½ in (13 mm) deeper than embedment
How To
- Determine fastener length according to insulation and membrane thickness plus minimum embedment.
-
Drill a 3⁄16 in (5 mm) pilot hole at least ½ in (13 mm) deeper than embedment depth.
-
Insert the fastener so the head sits flush with the surface of insulation, plate, or membrane.
-
Drive with a #3 Phillips bit until a slight depression appears around the plate; avoid overdriving.
-
Verify plates and insulation are level and secure.
-
Perform representative pull tests to confirm anchorage.
FAQs
Q: Why would I select CRH16 over shorter fasteners?
A: CRH16 is designed for extremely thick roof assemblies while maintaining required embedment depth.
Q: What coating is applied to CRH16?
A: The CR-10 corrosion-resistant coating, standard for OMG heavy duty fasteners.
Q: Which substrates are compatible?
A: Steel decks, wood decks, and structural concrete, with proper embedment and pilot drilling.
Q: How many fasteners are packaged per box?
A: 500 per box.
Q: Are pull tests necessary?
A: Yes, pull tests are always recommended to verify substrate conditions and performance.
