Package Quantity: 500 per box
Price: $487.67
Item #OMG-CRH10B
Write a review!
Description

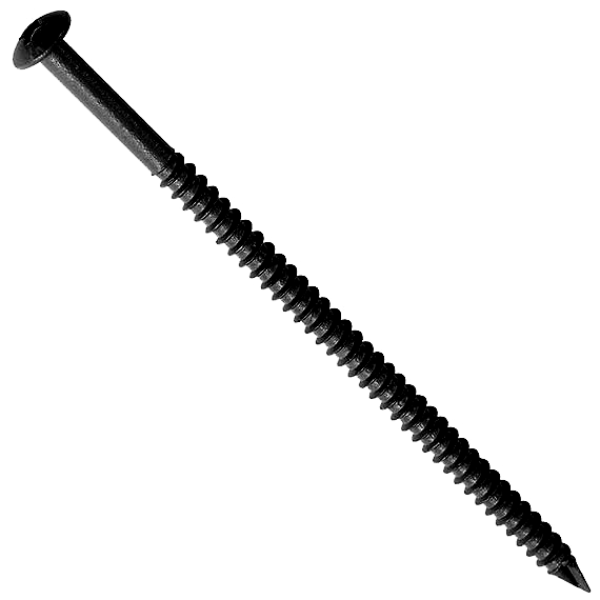

The OMG CRH10B is a 10-inch #14 heavy duty roofing fastener engineered to secure insulation and membranes to structural decks. It has deep threads to enhance pull-out resistance. The CR-10 finish provides corrosion protection, and its spade point enables effective penetration.
Key Features:
-
Deep thread profile for high pull-out resistance
-
30° spade point for swift penetration
-
CR-10 corrosion-resistant coating to protect from environmental exposure
-
#3 Phillips truss head compatible with standard roofing screw guns
-
10-inch length supports thick roof assemblies
Specifications
- SKU / Model: CRH10B
-
Thread diameter: 0.245 in (6.22 mm)
-
Shank diameter: 0.190 in (4.82 mm)
-
Head diameter: 0.435 in (11.04 mm), truss Phillips #3
-
Thread pitch: 10 threads per inch
-
Point type: 30° spade point
-
Coating: CR-10 corrosion-resistant coating
-
Length: 10 in (255 mm)
-
Threaded length: 4 in (102 mm)
-
Minimum embedment (steel decks): ¾ in (20 mm)
-
Minimum embedment (wood decks): 1 in (25 mm)
-
Minimum embedment (concrete decks): 1 in (25 mm)
-
Pilot hole: 3⁄16 in (5 mm), drilled at least ½ in (13 mm) deeper than embedment
How To
- Determine required fastener length by summing insulation + membrane thickness plus the embedment requirement.
-
Drill a 3⁄16 in (5 mm) pilot hole at least ½ in (13 mm) deeper than the embedment depth.
-
Position the fastener so the head is flush with the membrane, insulation, or plate surface.
-
Drive the fastener using a #3 Phillips bit until a slight depression forms around the plate; avoid overdriving.
-
Ensure the plate and insulation lie flat and stable before final driving.
-
Conduct pull tests at representative locations to validate anchorage performance.
FAQs
Q: What corrosion protection does CRH10B use?
A: It uses CR-10 coating, designed to reduce red rust and satisfy roofing corrosion standards.
Q: On which substrates can CRH10B be used?
A: It is usable with steel decks, wood decks, and structural concrete, given proper embedment and pilot drilling.
Q: How many fasteners come per box?
A: 500 per box.
Q: What pilot hole size is required for CRH10B?
A: A 3⁄16 in (5 mm) pilot hole drilled at least ½ in (13 mm) deeper than embedment depth.
Q: Should pull tests be performed?
A: Yes, pull tests are recommended to confirm substrate anchorage and fastener performance.
