Package Quantity: 1,000 per box
Price: $360.13
Item #OMG-RGDP008B
Write a review!
Description

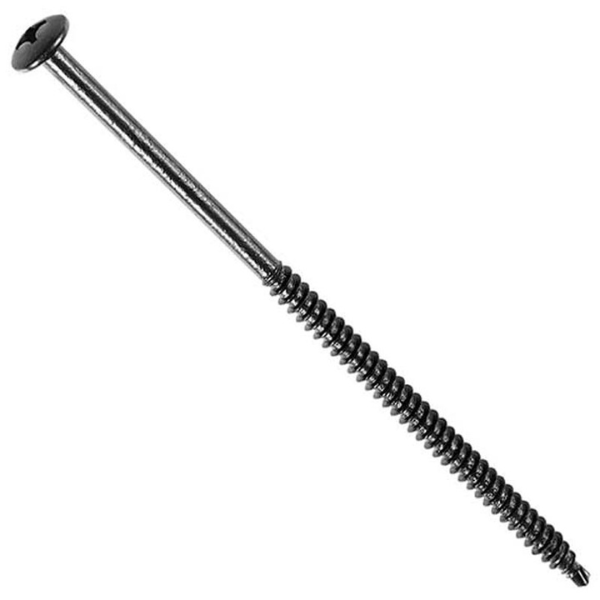

The OMG RGDP008B is an 8" #12 Standard RoofGrip Drill-Point fastener designed to attach roof insulation and membranes to steel (18–24 gauge) and approved wood decks. It uses deep buttress threads to resist pull-out forces. Its sharp drill-point allows for retrofit or new installation, and the CR-10 coating offers durable corrosion protection.
Key Features:
-
Deep buttress threads for superior pull-out performance
-
Drill-point design enabling penetration in retrofit or new construction
-
#3 Phillips truss head for compatibility with common screw guns
-
CR-10 corrosion-resistant coating that satisfies FM 4470 and EAD 030351
-
Factory Mutual and Miami-Dade accepted in qualifying systems
Specifications
- SKU / Model: RGDP008B
-
Thread diameter: 0.220 in (5.58 mm)
-
Head diameter: 0.435 in (11.04 mm), #3 Phillips truss
-
Thread pitch: 12.5 threads per inch (buttress thread)
-
Point type: Drill-point, full thread
-
Coating: CR-10 corrosion-resistant
-
Length: 8 in (200 mm)
-
Threaded length: 4 in (102 mm)
-
Weight per box: ~50 lbs
How To
- Compute total fastener length needed: insulation + membrane + embedment depth.
-
Align the fastener perpendicular to the deck with a screw gun and #3 Phillips bit.
-
Drive until a slight depression forms in the insulation or around the plate; avoid overdriving.
-
Ensure the pressure plate does not rotate and that proper snugness is achieved.
-
In rigid cover board assemblies, monitor torque to prevent deck stripping.
-
Perform pull tests in field locations to validate anchorage.
FAQs
Q: What deck types is RGDP008B appropriate for?
A: Steel (18–24 gauge) and approved wood decks.
Q: What embedment is required?
A: At least ¾ inch into steel flutes; 1 inch into wood decks.
Q: Is RGDP008B FM / Miami-Dade approved?
A: Yes, it carries approvals in qualifying systems.
Q: What corrosion protection is applied?
A: CR-10 corrosion-resistant coating.
Q: Can RGDP008B be used in retrofit (overlay) scenarios?
A: Yes, the drill-point tip allows penetration through membranes and insulation in retrofit applications.
