FREE SHIPPING to commercial addresses with a dock AND a forklift!
If the address is missing a dock, forklift, OR is residential,
a $99.00 fee will be applied.
Was: $6,127.20
Price: $6,127.20Sale: $6,127.20
Item #168-WL16000HE-03/B
Write a review!
Description

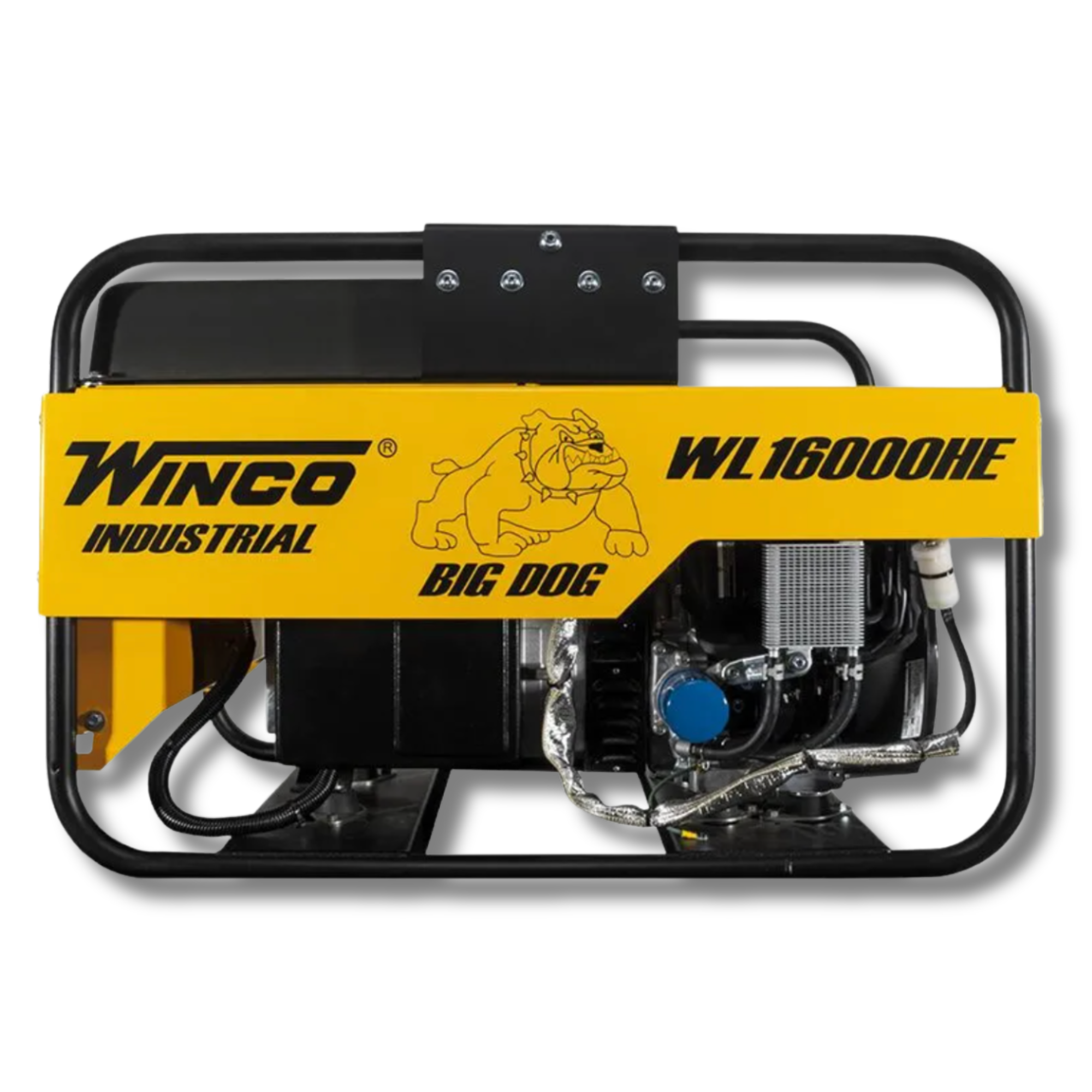

The Winco WL16000HE is a high-output portable generator designed for demanding applications. Delivering 16,000 watts surge and 14,000 watts continuous, it is powered by a Honda iGX800 fuel-injected V-twin engine. Built with a heavy-duty wrap-around tubular steel cradle and equipped with YourGen metering, this generator combines power, safety, and durability.
Key Features
-
16,000 watts surge / 14,000 watts continuous
-
Honda iGX800 fuel-injected V-twin engine
-
Wrap-around tubular steel cradle with powder-coat finish
-
YourGen meter with LED readout and load bar
-
Low oil protection system for engine safety
Specifications
- SKU: WL16000HE (WL16000HE-03/A variant)
-
Product type: Portable generator
-
Starting watts: 16,000 W
-
Running watts: 14,000 W
-
Running current: 116 A @ 120 V / 58 A @ 240 V
-
Voltage: 120/240 V, single phase
-
Voltage regulation: Capacitor ±5%
-

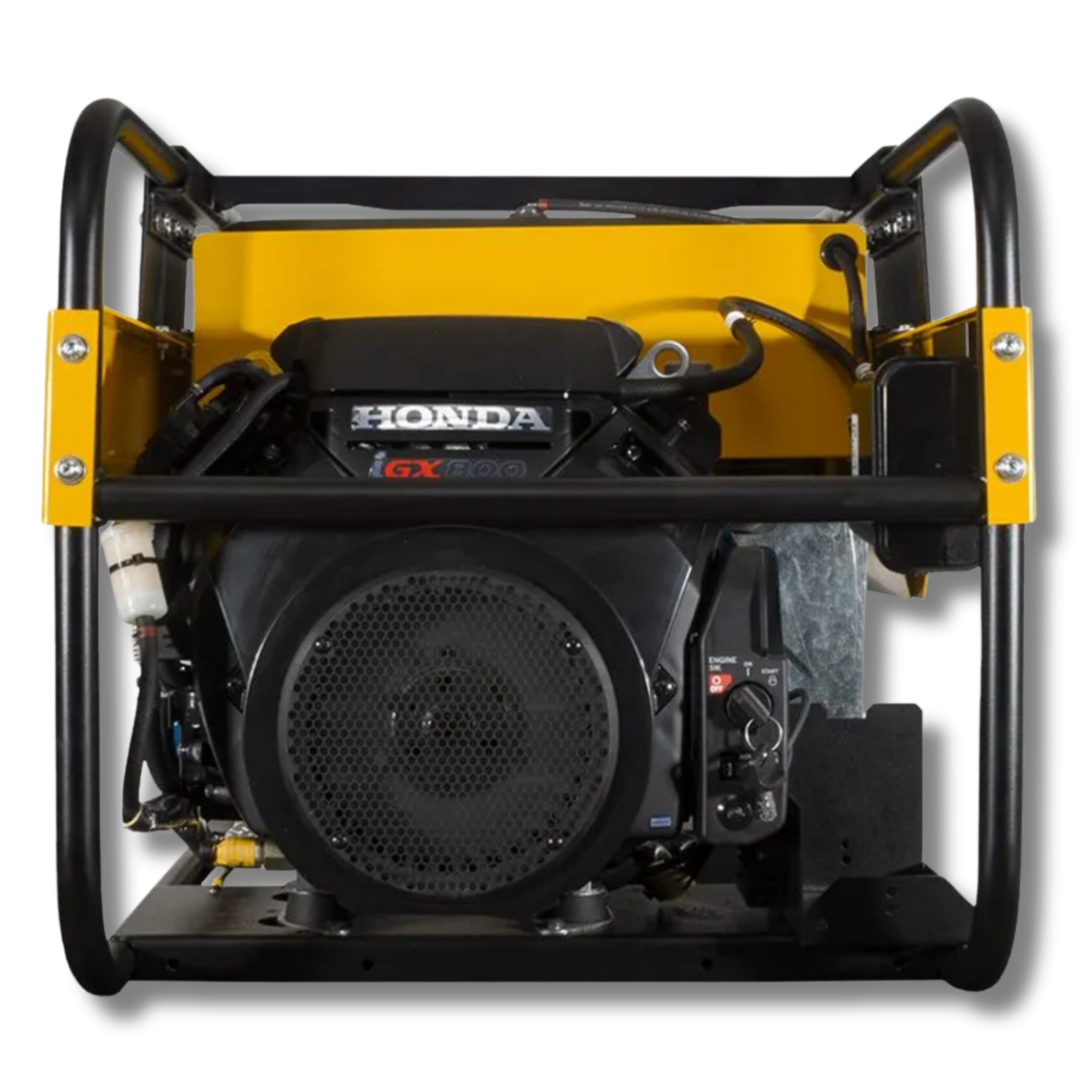

Engine: Honda iGX800, OHV V-twin, EFI
-
Starter: Electric
-
Displacement: 779 cc
-
Fuel: Gasoline
-
Fuel tank: 15 gallons
-
Full load run time: 7 hours
-
Oil capacity: 2.1 quarts
-
Noise level: 82 dB at 7 m
-
Shipping dimensions: 49.5 in × 27 in × 30 in
-
Shipping weight: 504 lbs
-
Frame: 1.25 in diameter 14-gauge steel wrap-around tubular frame
-
Receptacles: three 120 V NEMA 5-20R GFCI, one 50 A CS6369 120/240 V, two 30 A L6-30R GFCI
-
Circuit protection: 60 A main breaker, GFCI outlets
How To
- Position the generator on a firm, level surface with at least 2 feet clearance on all sides.
-
Fill the fuel tank with gasoline and check the oil level.
-
Connect load devices to the appropriate receptacles (120 V or 240 V).
-
Start the engine using the electric start switch.
-
Allow the generator to stabilize for one minute before applying load.
-
To shut down, disconnect all loads, switch off the engine, and allow it to cool.
FAQs
Q: What is the running wattage of the WL16000HE?
A: The continuous running output is 14,000 watts.
Q: What engine powers this generator?
A: It is powered by a Honda iGX800 fuel-injected V-twin engine.
Q: What is the shipping weight of this model?
A: The shipping weight is 504 lbs.
Q: What are the shipping dimensions?
A: The shipping dimensions are 49.5 in × 27 in × 30 in.
Q: What types of outlets are available on the WL16000HE?
A: It has three 120 V NEMA 5-20R GFCI outlets, one 50 A CS6369 120/240 V outlet, and two 30 A L6-30R GFCI outlets.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
