WADE - WP3000 DF2 Extension Ring, 299585

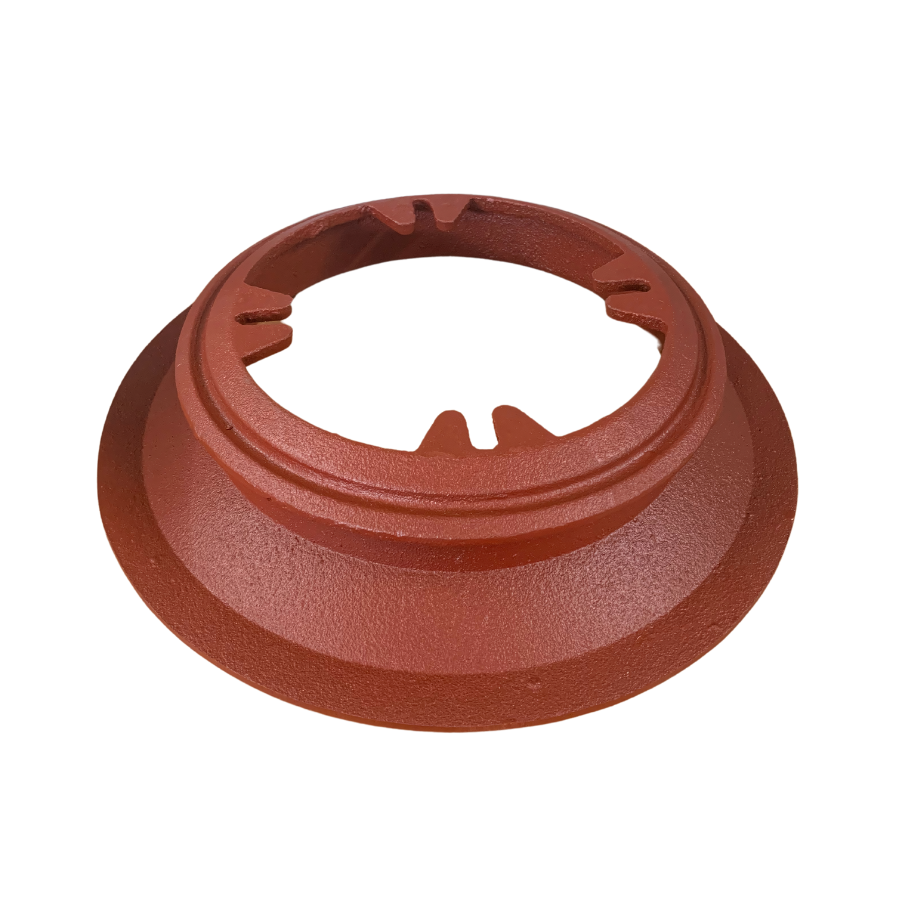

The WADE WP3000 DF2 Extension Ring (model 299585) is a robust cast iron component crafted for use with Wade 3000 series roof drains. Engineered to provide precise vertical adjustment, this extension ring ensures the drain assembly sits flush with roofing materials and insulation, maintaining optimal drainage performance in commercial roofing applications.

Key Features:

• Cast iron construction for resilience and longevity
• Compatible with Wade 3000 series roof drains
• Enables precise height adjustment during installation
• Red color finish for easy identification on-site

• Model: WP3000 DF2 Extension Ring (299585)
• Manufacturer: Wade (WADE Drains)
• Material: Cast iron
• Finish: Red (for visual identification)
• Compatibility: Wade 3000 series roof drain systems
• Function: Adjusts drain height to align with roofing and insulation layers
• Application: Commercial and industrial roofing installations needing height adjustment

• Confirm compatibility with Wade 3000 series roof drain assembly.
• Remove existing dome or flashing components as necessary.

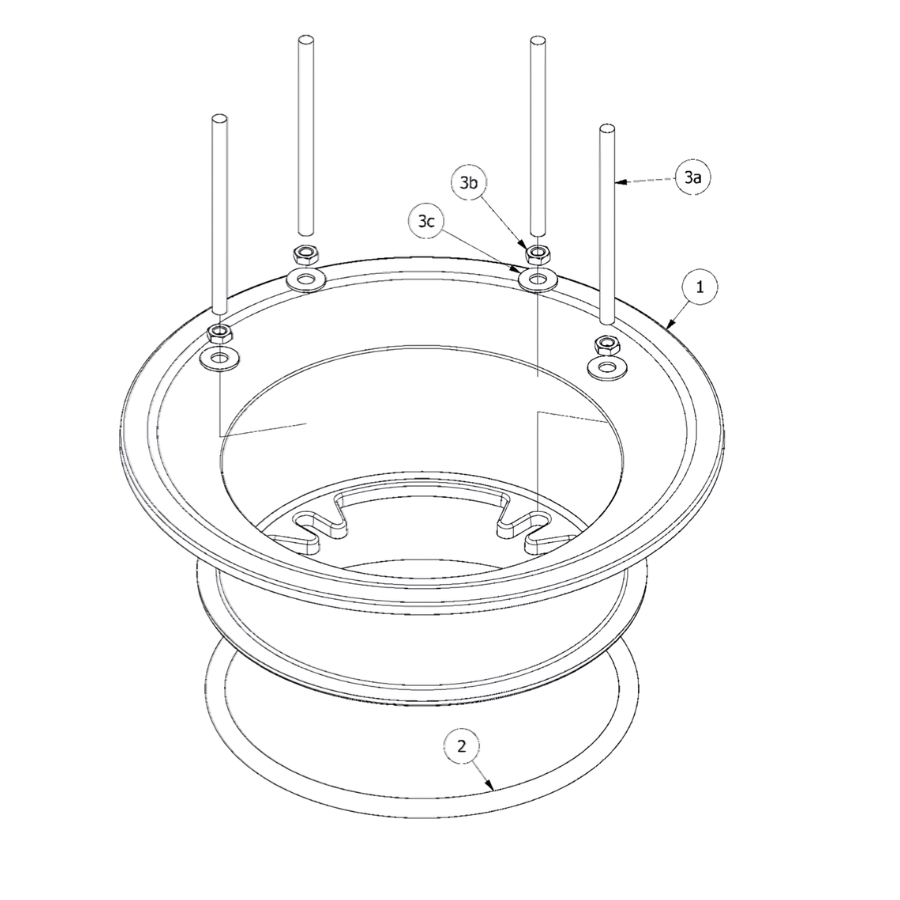

• Place the WP3000 DF2 extension ring atop the drain body.
• Install roofing materials or insulation over the extension so the flange sits flush.
• Reattach the dome, flashing ring, and secure components per standard installation.
• Ensure the drain opening is level with the roof surface and properly aligned.

Q: What is the purpose of the WP3000 DF2 Extension Ring?
A: It raises the drain height to align with thicker roofing or insulation layers.

Q: What material is the extension ring made from?
A: High-durability cast iron.

Q: Is the ring compatible with all Wade drains?
A: It is specifically designed for Wade 3000 series roof drains.

Q: What does the red finish indicate?
A: It aids quick identification during installation and maintenance.
