New!
*Free Freight Terms Do Not Apply*
Price: CALL
Item #TRA-18129030K
Write a review!
Description

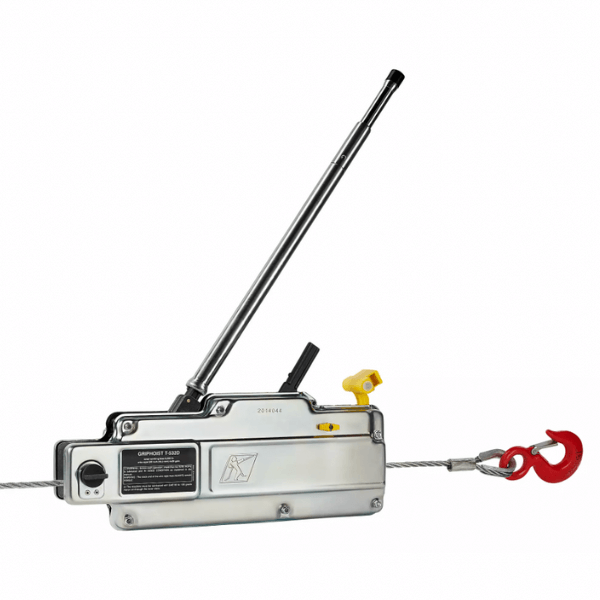

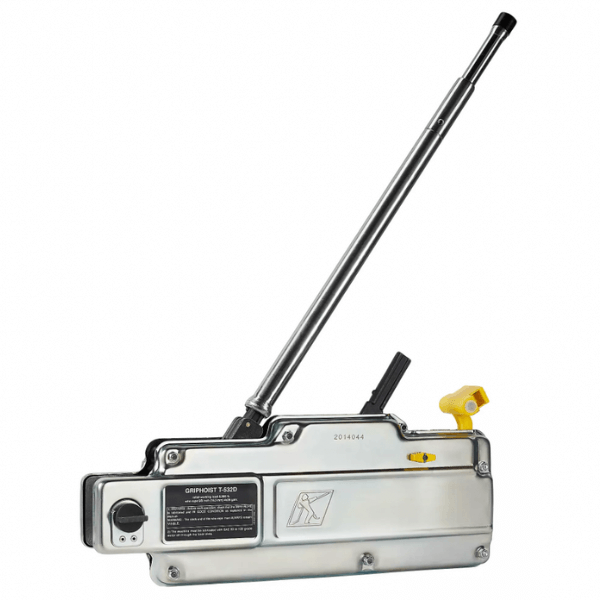

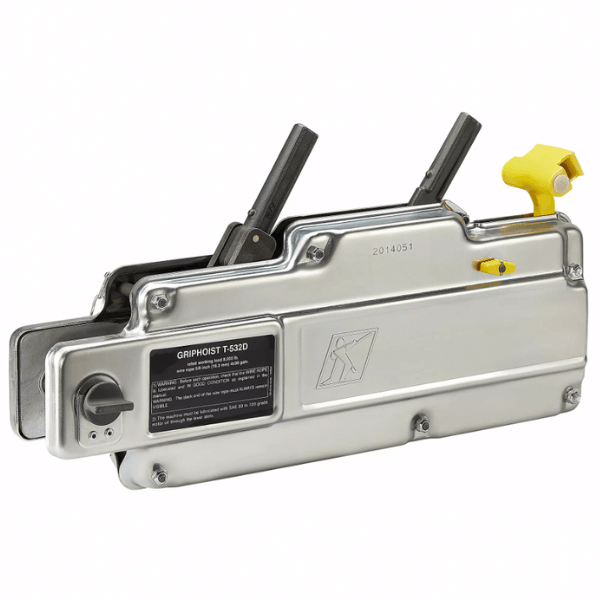

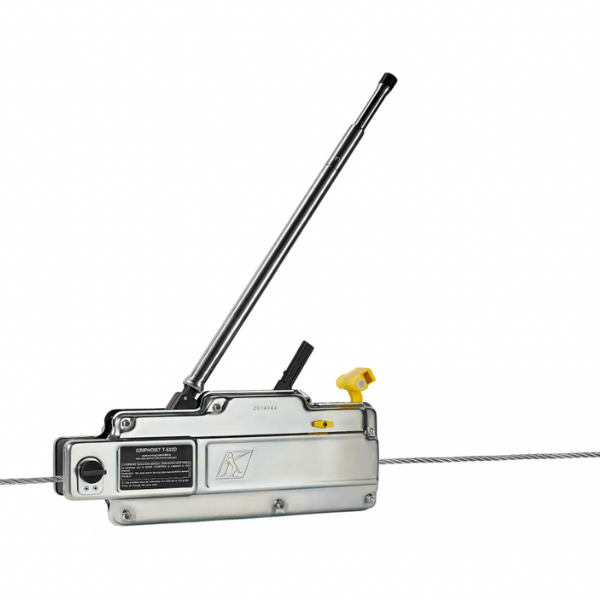

The Tractel T532D Griphoist Tirfor Wire Rope Hoist is a manually operated hoist designed for heavy-duty lifting and pulling tasks in industrial, construction, and utility settings. It is rated for a 4 ton (8,000 lb) capacity and comes with a 30 ft Maxiflex wire rope assembly that supports shorter-range heavy lifting or pulling. The hoist operates without electrical power and allows straight-through rope travel for precise load control. Its portable, versatile configuration supports use in horizontal, vertical, and angled orientations.
Key features:
• Manual wire rope hoist built for heavy lifting, pulling, and tensioning applications
• 4 ton rated load capacity with built-in overload shear pin protection
• Supplied with a 30 ft Maxiflex wire rope assembly
• Straight-through rope operation with continuous pull lever system
Specifications
• SKU: 18129030K
• Product type: T532D Griphoist Tirfor wire rope hoist
• Rated capacity: 4 ton (8,000 lb)
• Wire rope length: 30 ft
• Wire rope diameter: 5/8 in
• Wire rope type: Maxiflex wire rope
• Unit weight: approximately 51 lb
• Operation: manual lever-actuated continuous pull
• Safety system: built-in overload shear pins
• Orientation: suitable for horizontal, vertical, and angled applications
• Included components: hoist unit and 30 ft wire rope assembly
FAQs
Q: What advantage does choosing a 30 ft rope provide?
A: A 30 ft rope is useful when the working distance is shorter and a more compact rigging setup is preferred for controlled lifting and pulling.
Q: Is electrical power required to operate this hoist?
A: No, it is manually operated with a lever and does not use electrical power.
Q: Can this hoist be used in multiple orientations?
A: Yes, it supports horizontal, vertical, and angled pulling or lifting configurations.
Q: Is this hoist model intended for portable field use?
A: Yes, it is designed as a portable, manually operated hoist suitable for temporary jobsite and field applications.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
![]()
