- Features a compact 4-foot working length specifically designed to reduce fall distance in tight-clearance work zones where a standard 6-foot lanyard is impractical
- Includes the patented ViewPack® energy absorber cover with an integrated inspection window for rapid visual verification of the shock pack's integrity
- Constructed with heavy-duty 1-inch polyester webbing providing a 5,000 lb minimum static strength and excellent durability against wear and tear
- Equipped with high-strength plated alloy steel snap hooks for both harness and anchorage connections, featuring 3,600 lb gate strength
- Utilizes a polyester tear-away energy absorber engineered to limit average arrest forces to 900 lbs and maximum arrest forces to 1,800 lbs
- Fully compliant with ANSI Z359.13-2013 and OSHA 1926.502/1910.66 regulations, supporting a standard user capacity of 130 to 310 lbs
Price: $55.60
Item #FALLTECH-8254
Write a review!
Description

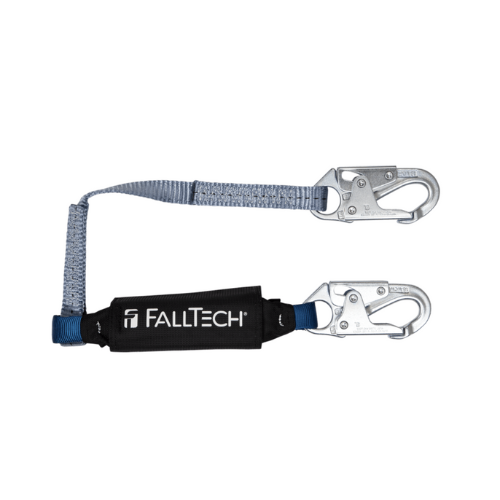

This single-leg energy absorbing lanyard is built with 1″ polyester webbing and designed for situations with limited fall clearance. It features a ViewPack® cover with inspection window and steel snap hooks at both harness and anchor ends. The 4-foot length makes it suited for tight-clearance work zones where standard longer lanyards are impractical.
Key features:
-
Heavy-duty 1″ polyester webbing throughout for high durability
-
Patented ViewPack® cover with inspection window to monitor the internal energy absorber
-
Steel snap hooks at both ends for secure harness and anchor connection
-
4′ working length ideal for restricted fall-clearance applications
Specifications
- SKU: 8254
-
Webbing: polyester; 5,000 lb minimum static strength
-
Energy absorber: polyester tear-away
-
Connectors (snap hooks): plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength
-
Static strength: 5,000 lb minimum
-
ANSI Lanyard Class: 6′ free fall
-
Max. Arrest Distance: 48″
-
Average Arrest Force: 900 lb
-
Maximum Arrest Force: 1,800 lb
-
ANSI User Capacity: 130 to 310 lb max.
-
OSHA User Capacity: 130 to 310 lb max.
-
Compliance: ANSI Z359.13-2013; OSHA 1926.502 / 1910.66
Additional Information
Q: Why would a 4-foot lanyard be chosen instead of a common 6-foot model?
A: A 4-foot length reduces fall distance in areas with limited clearance, helping meet fall-clearance requirements where longer lengths may not suffice.
Q: What benefit does the ViewPack® cover provide to users?
A: The inspection window allows quick visual verification of the energy absorber condition without disassembling the pack, improving job-site safety and accountability.
Q: How can I verify this lanyard is still fit for use?
A: Before each use inspect the webbing for cuts, abrasions or fraying; check snap hooks for deformation, corrosion or gate failure; and ensure the ViewPack® window shows no activation or tear-away event.
Q: Does the 900 lb average arrest force mean lower protection than other models?
A: No — the 900 lb rating refers to the force transmitted during an average fall event; lower impact force improves user comfort without compromising system performance when used properly.
