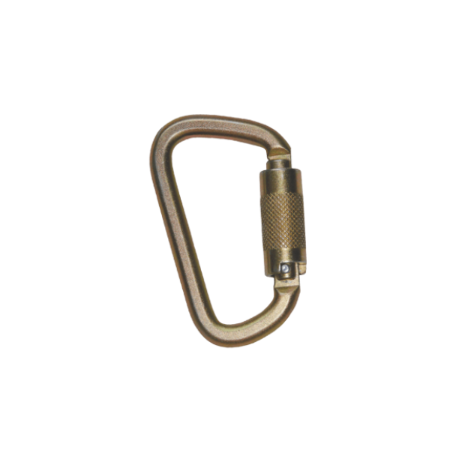

FallTech 8445 - Alloy Steel Connecting Carabiner, Open Gate Capacity, 7/8"

This carabiner is built from forged alloy steel and is designed to provide a secure connection in fall-protection systems. It features a 7/8″ open gate capacity, self-closing and double-locking gate mechanism for one-hand operation. The inside dimensions are 3-1/4″ x 1-3/8″, making it suitable for a range of connecting hardware. It complies with ANSI Z359.12-2009 and is rated for use in fall-arrest applications.

Key features:

• Self-closing and double-locking gate function with 7/8″ open capacity
• Forged alloy steel construction for durability and strength
• One-hand operation even when wearing gloves
• Inside dimensions: 3-1/4″ x 1-3/8″

• SKU: 8445
• Material (connector): plated alloy steel; minimum 5,000 lb static strength with 3,600 lb gate strength
• Inside dimensions: 3-1/4″ x 1-3/8″
• Gate opening capacity: 7/8″
• Compliance: ANSI Z359.12-2009; OSHA 1926.502 & 1910.66
• ANSI user capacity: 130 to 310 lb max
• OSHA user capacity: 310 to 425 lb max
• Compact Twist Lock
• 3,600 lbs. Gate

Q: What benefit does the double-locking gate provide on this carabiner?
A: It reduces the risk of accidental gate opening by ensuring the gate is both closed and locked before connection is counted as secure.

Q: Can this carabiner be operated easily while wearing gloves?
A: Yes — the one-hand operation design is specifically intended for use even when wearing gloves, allowing quick connection in glove-required environments.

Q: When might this carabiner not be the correct choice?
A: If your system requires a larger gate opening or different load rating (for example multi-user tie-off or specialized rigging hardware), you may need a different connector model rated accordingly.

Q: What inspection steps should I follow before each use?
A: Check the carabiner body for cracks or deformation, ensure the gate opens and closes properly and locks fully, verify that ratings remain legible, and replace it if any damage or abnormal wear is found.
