- Features a high-capacity adjustable design specifically engineered to fit larger structural steel I-beam flanges ranging from 6 inches to 16 inches wide
- Compatible with a variety of beam profiles with flange thicknesses from 0.5 inches to 1.25 inches for maximum jobsite flexibility
- Constructed from a specialized blend of an aluminum bar, steel jaws, and stainless steel springs to provide a lightweight 4-pound solution without sacrificing strength
- Engineered for smooth trailing movement along the beam, allowing the anchor to follow the worker's path and minimize potential swing-fall hazards
- Provides a secure 5,000-pound minimum breaking strength rated for personal fall arrest, restraint, or work positioning applications
Price: $375.18
Item #GUA-00103
Write a review!
Description

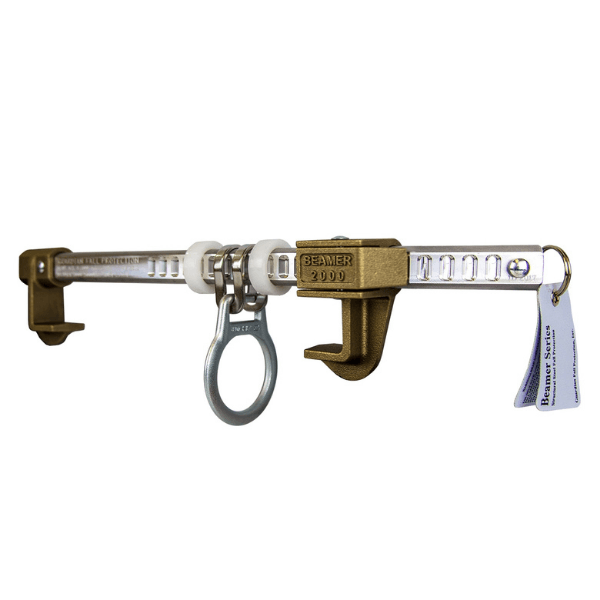

The Guardian Fall Protection Beamer 2000 Fall Arrest Anchor (00103) is a reusable beam anchor engineered for secure fall arrest tie-off on structural I-beams. It adjusts to fit flange widths from 6 to 16 inches and flange thicknesses from 0.5 to 1.25 inches, making it ideal for a wide variety of steel erection, welding, and construction applications. Built from aluminum, steel, and nylon components, the Beamer 2000 installs quickly, travels smoothly along beams, and can be repositioned without tools. With a 5,000 lb minimum breaking strength and OSHA/ANSI compliance, this anchor is a trusted choice for workers needing reliable steel beam fall protection.
Key Features:
-
Adjustable I-beam anchor fits 6–16 in flange widths
-
Works with flange thicknesses from 0.5–1.25 in
-
Reusable, lightweight, and easy to reposition
-
Provides smooth trailing movement along beams
-
Meets OSHA 1910, 1926 Subpart M, and ANSI Z359.18 standards
Specifications
- Model: 00103
-
Type: Adjustable Beam Anchor (Fall Arrest)
-
Material: Aluminum bar, steel jaws, nylon bushings, stainless springs
-
Flange Width Range: 6–16 in
-
Flange Thickness Range: 0.5–1.25 in
-
Capacity: 1 user, 130–420 lb (including tools)
-
Minimum Breaking Strength: 5,000 lb
-
Weight: approx. 4 lb
-
Standards: OSHA 1910; OSHA 1926 Subpart M; ANSI Z359.18
-
Includes: (1) Beamer 2000 Fall Arrest Anchor
How To
- Select an I-beam with flange width 6–16 in and thickness 0.5–1.25 in.
-
Place the Beamer 2000 over the beam flange.
-
Adjust the movable clamp to fit snugly on the flange.
-
Lock the clamp securely per manufacturer’s instructions.
-
Connect a fall arrest lanyard or SRL to the anchor’s D-ring.
-
Inspect the anchor and beam before each use for OSHA compliance.
FAQs
Q: What flange sizes does the Guardian 00103 fit?
A: It adjusts to flanges 6–16 in wide and 0.5–1.25 in thick.
Q: Is the Beamer 2000 reusable?
A: Yes, it is reusable and can be repositioned easily.
Q: What is the maximum capacity?
A: One user, up to 420 lb including tools and equipment.
Q: How much does it weigh?
A: The anchor weighs approximately 4 lb.
Q: Is the Guardian 00103 OSHA compliant?
A: Yes, it meets OSHA 1910, 1926 Subpart M, and ANSI Z359.18 standards.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
![]()
