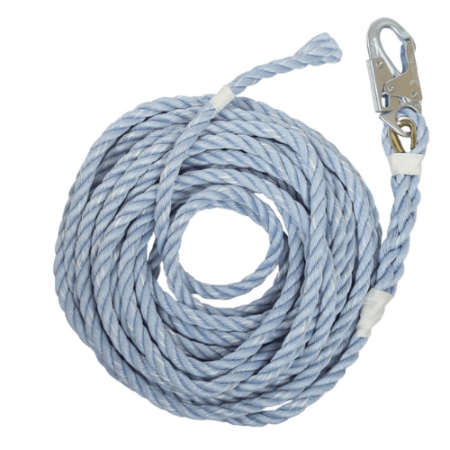

FallTech 8149 - 50' Construction-grade Vertical Lifeline w/ Back-spliced End

This vertical lifeline is designed for construction job-site fall-protection applications. It features a 5/8″ copolymer 3-strand twisted rope for low elongation, abrasion, UV, and chemical resistance. One end is fitted with an alloy steel snap hook for anchorage, and the trailing end is back-spliced to facilitate connection with rope grabs or adjusters. The lifeline complies with applicable ANSI and OSHA standards for fall-arrest systems.

Key features:

• 5/8″ copolymer 3-strand twisted rope for enhanced durability and wear resistance
• Steel thimble and splice-protecting shrink tubing on the rope assembly
• Alloy steel snap hook for anchorage connection
• Back-spliced trailing end designed for use with rope grabs and adjusters

• SKU: 8149
• Rope: 5/8″ copolymer 3-strand twisted rope; construction-grade
• Connector: plated alloy steel snap hook; minimum 5,000 lb static strength with 3,600 lb gate strength
• Static strength (rope end assembly): 5,000 lb minimum
• ANSI user capacity: 130 to 310 lb maximum
• OSHA user capacity: 130 to 310 lb maximum
• Compliance: ANSI Z359.15-2014; OSHA 1926.502 / 1910.66

Q: What is the benefit of the back-spliced end on this lifeline?
A: The back-splice provides a strong termination point for connecting rope grabs or adjusters, avoiding loose ends and reducing the risk of fraying or hockles.

Q: Why is a 5/8″ copolymer 3-strand rope used instead of standard polyester?
A: The copolymer construction offers enhanced abrasion, UV and chemical resistance while maintaining flexibility and low elongation — key for vertical lifeline performance.

Q: How should I inspect this vertical lifeline before each use?
A: Check the rope for visible damage (cuts, abrasions, deformities), ensure the snap hook gate works properly and locks, verify the thimble and splice protection are intact, and ensure the rope assembly length and termination are correct.

Q: Can this lifeline be used with any rope grab or adjuster device?
A: Yes — the lifeline’s back-spliced end is designed to work with compatible rope grabs or trailing adjusters rated for 5/8″ rope; you must verify compatibility and device ratings before use.
