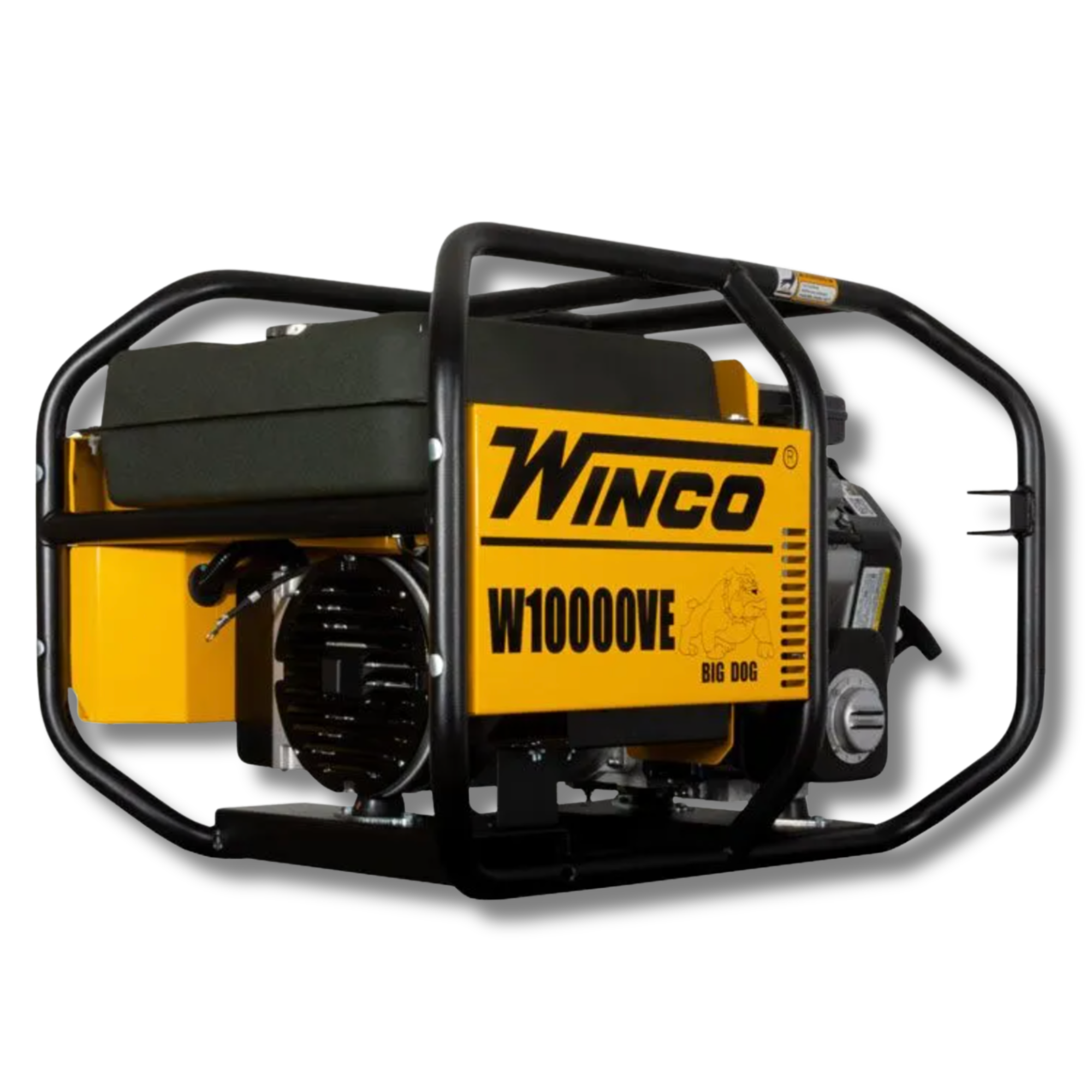

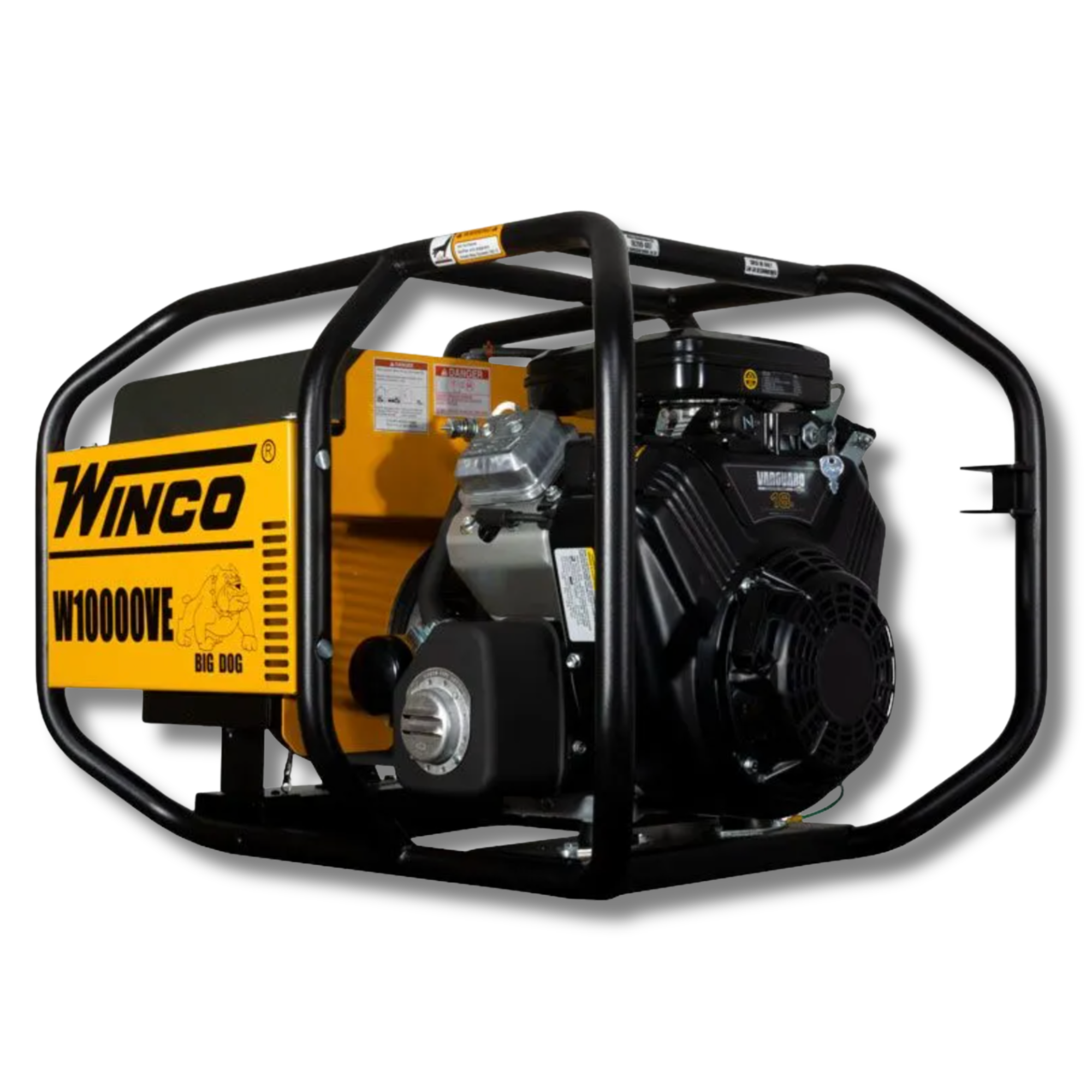

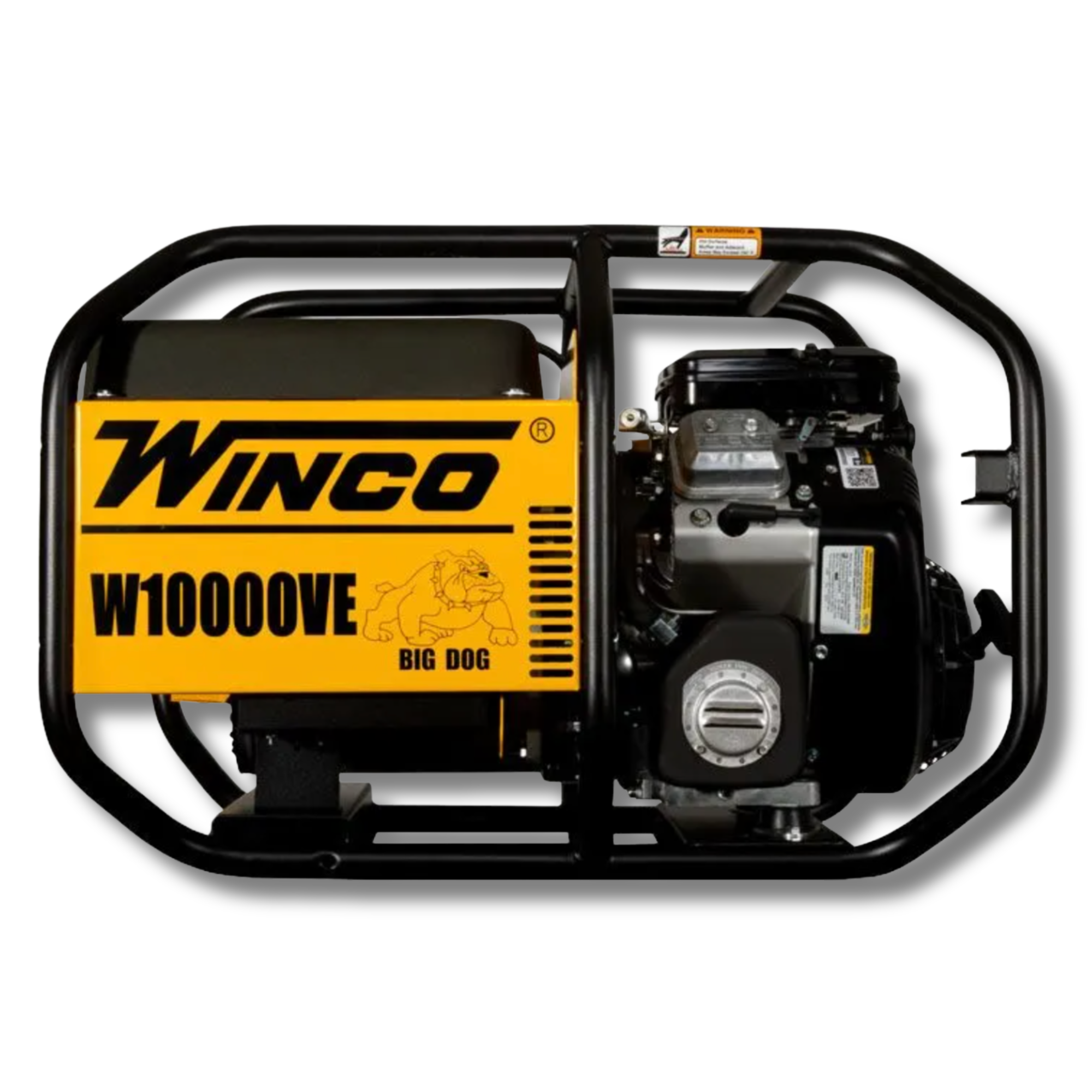

Winco Power Systems W10000VE - Portable Generator, 10000W

The Winco W10000VE portable generator is built for heavy-duty applications, offering 10,000 watts of surge capacity and 9,600 watts of continuous power. It is powered by a Briggs & Stratton Vanguard 570 cc V-twin engine, features a stout wrap-around tubular steel frame, and includes advanced control systems like the YourGen meter and automatic voltage regulation for reliable performance.

Key Features

• 10,000 watts surge / 9,600 watts continuous output
• Vanguard 570 cc V-twin engine with low-oil protection
• Automatic voltage regulation (AVR) maintaining output at ±1 %
• Rugged 14-gauge tubular steel cradle frame
• Full load tested; includes YourGen meter and GFCI receptacles

• Model: W10000VE-03/B
• Starting watts: 10,000 W
• Running watts: 9,600 W
• Running current: 80 A @ 120 V / 40 A @ 240 V
• Voltage: 120/240 V, single-phase
• Voltage regulation: AVR ±1 %
• Frequency regulation: ±3 %
• Main breaker: 40 A 240 V (GFCI)

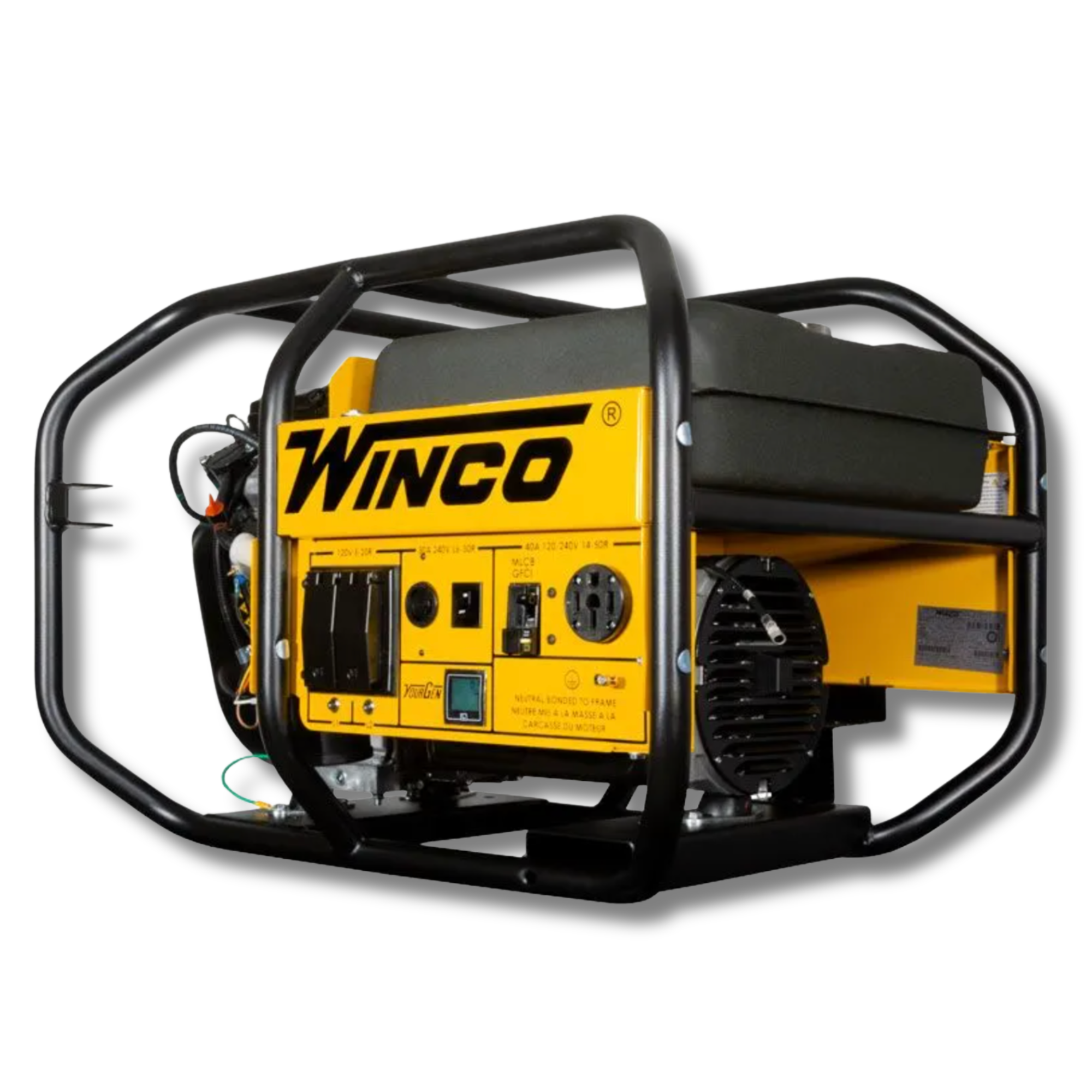

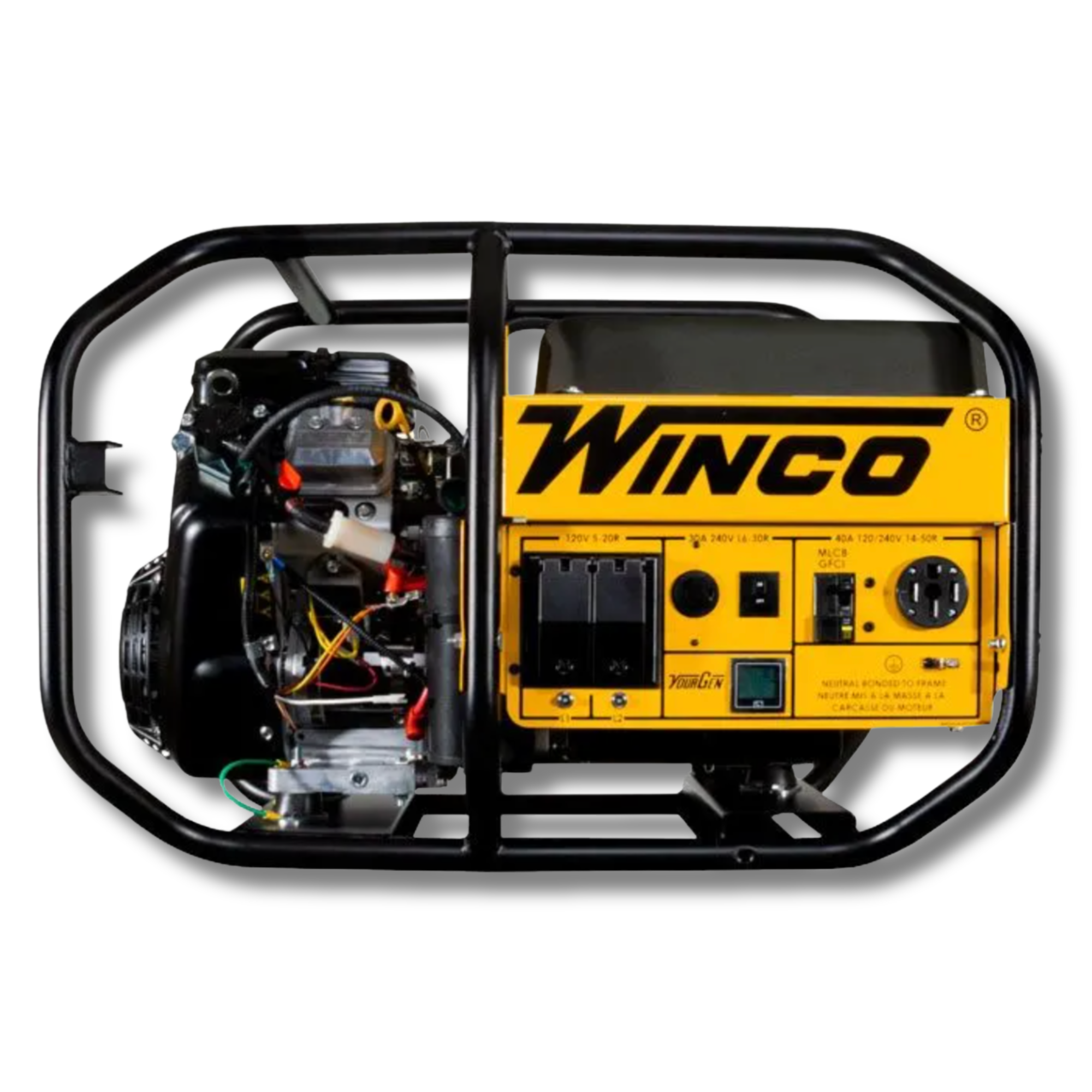

• Receptacles: two NEMA 5-20R (120 V GFCI), one NEMA 14-60R (120/240 V GFCI), one NEMA L6-30R (240 V GFCI)
• Frame: 1.25" diameter, 14-gauge tubular steel

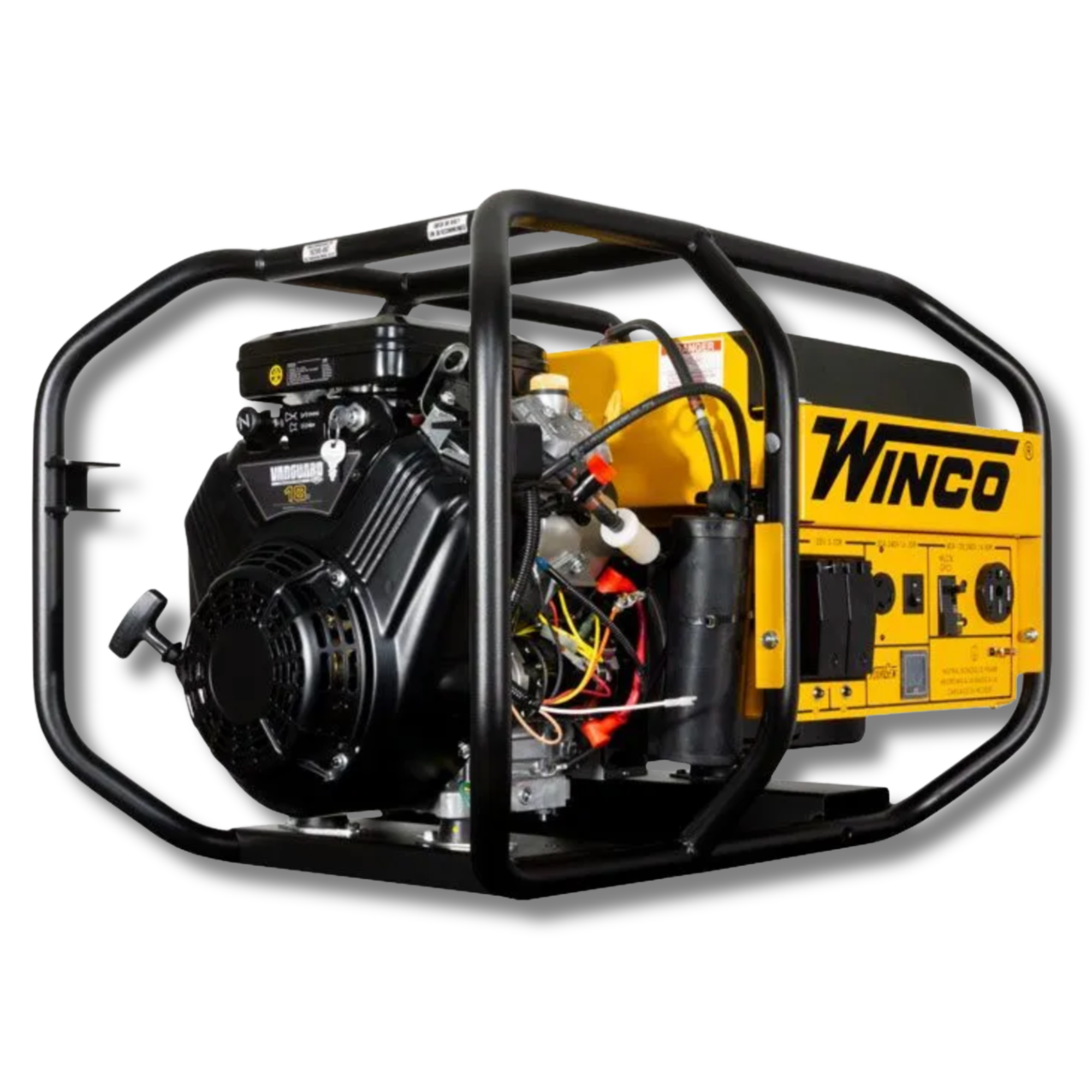

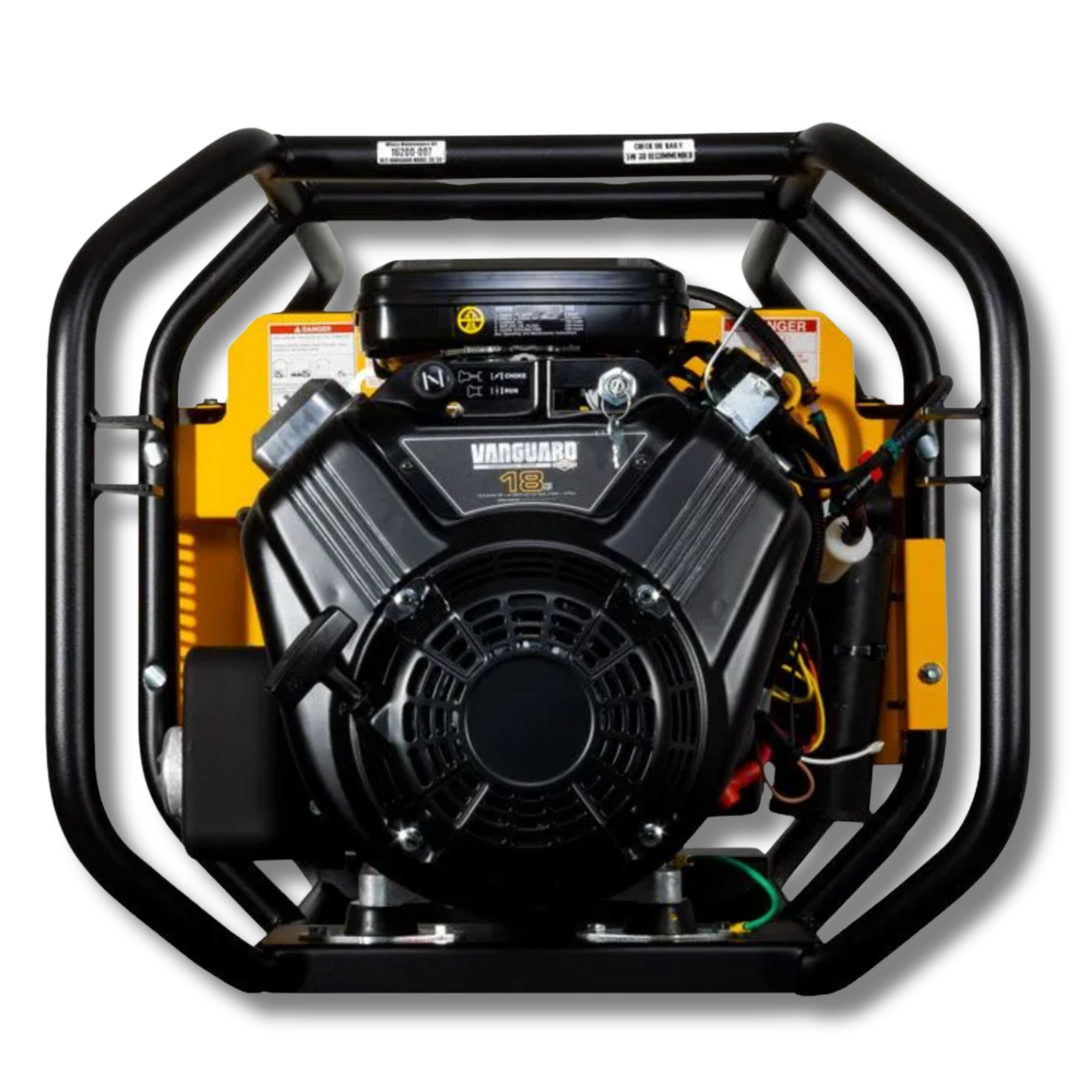

• Engine: Briggs & Stratton Vanguard 570 cc V-twin
• Starter: Electric & recoil
• Engine speed: 3,600 RPM
• Displacement: 570 cc OHV
• Oil capacity: 2.4 quarts
• Fuel tank: 7 gallons
• Full-load runtime: 4.3 hours
• Fuel consumption (gal/hr): 1.64 @ 100 %; 1.34 @ 75 %; 1.01 @ 50 %; 0.77 @ 25 %
• Noise: 82.8 dB at full load, 81.3 dB no-load (at 7 m)
• Total harmonic distortion: <6 %
• Dimensions (assembled): 34.3 in × 24.6 in × 23.4 in
• Shipping dimensions: 36 in × 26 in × 24 in
• Net weight: 284 lbs
• Ship weight: 298 lbs
• Warranty: 3 years commercial

• Place the generator on a level, stable surface with sufficient clearance.
• Add engine oil and verify the level is correct before starting.
• Fill the fuel tank and ensure fuel valve is open.
• Connect loads to appropriate receptacles (120 V / 240 V)
• Use electric start (or recoil backup) to start the engine.
• Let the generator stabilize, then apply load gradually.
• To shutdown: remove load, turn off engine, and allow unit to cool before transport.

Q: What is the continuous running wattage of W10000VE?
A: It delivers 9,600 watts continuous.

Q: What engine powers this model?
A: It’s powered by a Briggs & Stratton Vanguard 570 cc V-twin engine.

Q: What are the dimensions and weights?
A: Assembled dimensions are 34.3 × 24.6 × 23.4 inches; net weight is 284 lbs; ship weight is 298 lbs.

Q: What protections and regulation does it have?
A: Features include low-oil shutdown, automatic voltage regulation ±1 %, and GFCI circuit protection.

Q: What outlets does this generator include?
A: Two 120 V GFCI duplex outlets (NEMA 5-20R), one 120/240 V twist-lock (NEMA 14-60R), and one 240 V GFCI outlet (NEMA L6-30R).
