- 60-gallon flammable liquid safety cabinet with 180° manual-close, self-latching doors
- Reinforced 18-gauge double-wall steel construction with a 1-1/2" insulating air space
- FM-Approved and compliant with OSHA and NFPA Code 30 standards
- Two adjustable galvanized steel shelves rated up to 350 lbs UDL, plus dual 2" vent ports with fire baffles
- Flush-mounted handle with key lock, 3-point stainless steel latch system, welded construction, and a 2" raised leakproof sill
Price: $2,193.50
Item #330-6010X
Write a review!
Description

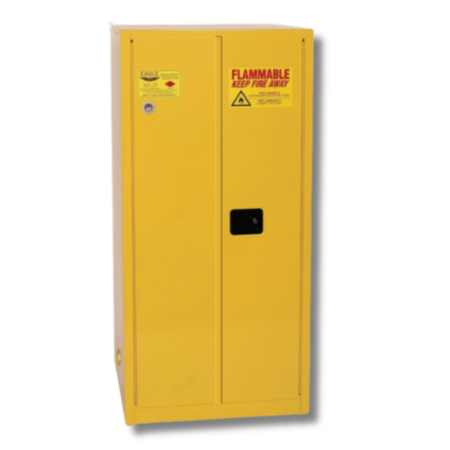

The Eagle 6010X Flammable Liquid Safety Cabinet is designed for the safe storage of flammable liquids in industrial, laboratory, and maintenance environments. The cabinet is constructed from 18-gauge steel with reinforced double-wall construction and a 1-1/2 inch insulating air space between the walls to help reduce fire risk.
This 60-gallon cabinet features self-closing double doors with a three-point latching system and a lockable handle to help secure stored materials. Two adjustable galvanized steel shelves help organize containers and direct spills toward the cabinet’s leak-proof sump, while internal vents with fire baffles allow ventilation when required.
Key Features
- 60-gallon flammable liquid storage cabinet
- 18-gauge steel construction with reinforced double-wall design
- 1-1/2 in insulating air space between cabinet walls
- Self-closing double doors with three-point latch system
- Two adjustable galvanized steel shelves
- Shelf capacity of 350 lb (UDL) per shelf
- Built-in leak-proof sump with raised door sill
- Two internal vents with threaded fittings and fire baffles
- High-gloss yellow powder-coat finish with warning labels
- Grounding connection and locking handle
Specifications
Model: 6010X
Capacity: 60 Gallons
Material: 18-Gauge Steel
Door Style: Self-Closing
Number of Doors: 2
Number of Shelves: 2 Adjustable Shelves
Shelf Capacity: 350 lb (UDL)
Exterior Dimensions: 34 in W × 34 in D × 65 in H
Interior Dimensions: 30.75 in W × 30.34 in D × 60.5 in H
Net Weight: 331 lb
Compliance: FM Approved, OSHA compliant, NFPA Code 30
FAQs
Q: Why would someone choose a self-closing cabinet instead of manual close?
A: Self-closing cabinets automatically shut the doors when released, helping ensure the cabinet remains closed after use.
Q: What is the purpose of the leak-proof sump inside the cabinet?
A: The sump at the base of the cabinet helps contain spills if a container leaks or is accidentally tipped.
Q: Why do flammable storage cabinets include vents?
A: The vents allow the cabinet to be connected to ventilation systems if required by facility safety procedures or local regulations.
