45-gallon flammable liquid safety cabinet with two self-closing doors
Reinforced 18-gauge double-wall steel construction with a 1-1/2" insulating air space
FM-Approved and compliant with OSHA and NFPA Code 30 standards
Concealed self-close mechanism with self-indexing doors for unobstructed access and secure closure
Two adjustable galvanized steel shelves rated up to 350 lbs UDL, plus dual 2" vent ports, a 3-point stainless steel locking system with key lock, and a 2" raised leakproof sill
Price: $1,837.66
Item #330-4510X
Write a review!
Description

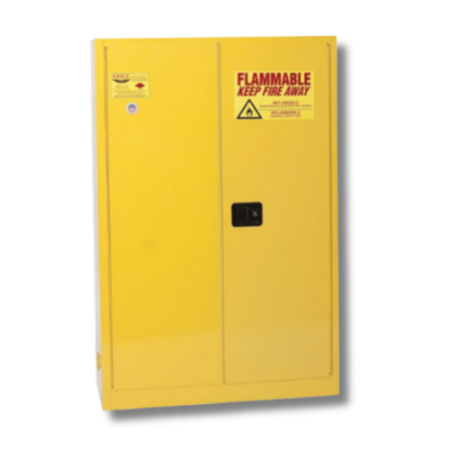

The Eagle 4510X Flammable Liquid Safety Cabinet is designed for storing flammable liquids in industrial, laboratory, and maintenance environments. Constructed from 18-gauge steel, the cabinet features reinforced double-wall construction with a 1-1/2-inch air space between the walls to help reduce fire risk and protect stored materials.
This 45-gallon cabinet includes two adjustable galvanized steel shelves and self-closing double doors that automatically shut when exposed to high heat. A built-in leak-proof sump and raised door sill help contain spills, while internal vents with fire baffles allow safe ventilation when required.
Key Features
- 45-gallon flammable liquid storage cabinet
- 18-gauge steel construction with reinforced double-wall design
- 1-1/2 in insulating air space between cabinet walls
- Self-closing double doors with three-point latching system
- Two adjustable galvanized steel shelves
- Shelf load capacity of 350 lb (UDL)
- Built-in leak-proof sump with raised door sill
- Two internal vents with fire baffles and threaded fittings
- High-gloss yellow powder-coat finish with warning labels
- Grounding connection for static control
Specifications
Model: 4510X
Capacity: 45 Gallons
Material: 18-Gauge Steel
Door Style: Self-Closing
Number of Doors: 2
Number of Shelves: 2 Adjustable Shelves
Shelf Capacity: 350 lb (UDL)
Exterior Dimensions: 43 in W × 18 in D × 65 in H
Interior Dimensions: 39.5 in W × 14.56 in D × 60.5 in H
Net Weight: 267 lb
Compliance: FM Approved, OSHA compliant, NFPA Code 30
FAQs
Q: How is a self-closing safety cabinet different from a manual-close cabinet?
A: Self-closing cabinets automatically shut the doors when exposed to high heat, while manual-close cabinets must be closed by the user.
Q: Why do flammable liquid cabinets have a sump at the bottom?
A: The sump is designed to help contain leaks or spills from containers stored inside the cabinet.
Q: Why do safety cabinets include internal vents?
A: The vents allow the cabinet to be connected to ventilation systems when required by facility safety procedures or local regulations.
