- Forms a full double-lock standing seam in a single pass for panel heights of 1 inch or 1-1/2 inches
- Features an adjustable height configuration to accurately match specific roof panel systems
- Powered by a 115 V single-phase electric motor with a seaming speed of approximately 30 feet per minute
- Lightweight 40 lb design with a spring-loaded handle for easy portability and job-site operation
- Supports multiple materials including 24 gauge steel, 0.032 inch aluminum, and 20 oz copper
- Compatible with both painted and unpainted metal surfaces and can be converted to single-lock use with optional rolls
Price: $4,750.00
Item #ESE-K9DL
Write a review!
Description

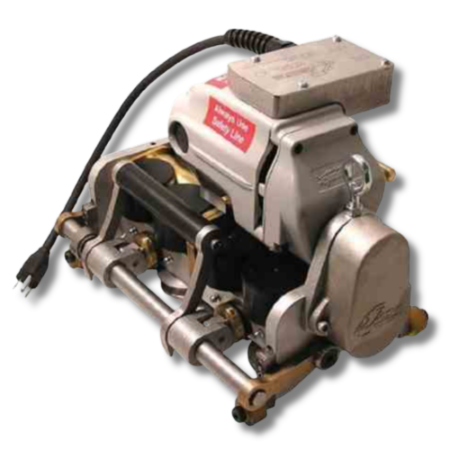

The ESE Machines K9DL Double Lock Power Seamer is a powered tool engineered to form a double-lock standing seam in one pass on panels with leg heights of 1″ or 1-1/2″. The machine is lightweight at about 40 lbs, runs on a 115 V single phase motor drawing 7 amps, and can be converted for single-lock use with optional rolls. It is designed for both painted and unpainted metal roofing surfaces and manufactured in the USA.
Key features:
-
Rolls a full double-lock standing seam in a single pass for 1″ or 1-1/2″ panel heights
-
Adjustable height configuration (1″ or 1-1/2″ leg height) to match roof panel systems
-
Lightweight portability (~40 lbs) with spring-loaded handle and electric motor (115 V, 7 amps)
-
Made in the USA and compatible with both coated and bare metal surfaces
***Please see images for profiles seamable by the ESE Machines K9 Double Lock Power Seamer***
Specifications
SKU: K9DL
Product type: Double Lock Power Seamer
Compatible panel leg heights: 1″ or 1-1/2″ (adjustable)
Maximum material gauges: steel up to 24 gauge; aluminum up to 0.032″ (optional 0.040″); copper up to 20 oz.
Power requirements: Electric motor, 115 V, 7 amps, single phase
Speed: up to ~30 feet per minute seam speed
Weight: approximately 40 lbs
Application context: For use on standing-seam roofing systems where full double-lock seams are required; machine can be converted to single-lock with optional rolls.
Origin: Made in USA
Additional Information
Q: What panel leg heights can the K9DL handle?
A: It supports panels with leg heights of 1″ or 1-1/2″ by adjusting the machine height setting.
Q: Can the K9DL be used for single-lock seams?
A: Yes — the unit can be converted to single-lock seaming with optional rolls.
Q: What are the material thickness limits for the K9DL?
A: It handles steel up to 24 gauge, aluminum up to 0.032″ (optional 0.040″ version), and copper up to 20 oz.
Q: Is this machine suitable for painted or coated metal surfaces?
A: Yes — it is designed for use with both painted/coated and bare metal surfaces.
