Price: $194.50
Item #TDE-13801
Write a review!
Description

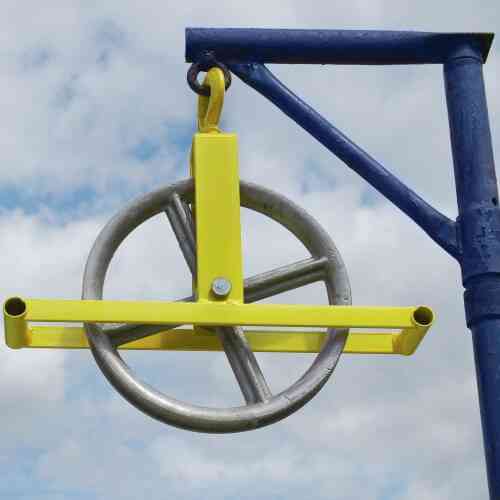

The Tie Down 13801 Hoisting Wheel With Hook is a durable aluminum wheel designed to raise jobsite materials using any extension ladder or scaffold setup. It accommodates rope diameters from ½ in to 1 in and is rated to hoist up to 300 lb. The unit includes two locking pins for secure operation and is useful for painters, roofers, electricians, and siding contractors.
Key Features
-
12 in aluminum hoist wheel with hook
-
Rated for lifting loads up to 300 lb
-
Accepts rope sizes from ½ in to 1 in
-
Comes with two locking pins for secure use
-
Can be mounted to extension ladders or scaffolding
Specifications
- SKU: 13801
-
Product name: 12 in Aluminum Hoisting Wheel With Hook
-
Wheel diameter: 12 in
-
Material: aluminum and coated steel components
-
Rope compatibility: ½ in to 1 in rope
-
Load rating: 300 lb
-
Weight: ~8 lb
-
Packaging dimensions: 5 in × 5 in × 5 in
-
Warranty: 1 Year Limited
-
Application: hoisting materials via ladder or scaffold
-
Country of origin: China
How To
- Mount the wheel to the extension ladder or scaffold in a stable position.
-
Thread the rope (½ in to 1 in) through the wheel and attach to the load.
-
Secure the rope on the hook and engage both locking pins.
-
Raise the material by pulling the rope steadily through the wheel.
-
Once at height, lock the rope and release the load carefully.
-
After use, remove the wheel and inspect pins and components for wear.
FAQs
Q: What rope sizes can 13801 accommodate?
A: It works with rope diameters from ½ in to 1 in.
Q: What is the maximum load rating?
A: It is rated to hoist up to 300 lb.
Q: What mounting options exist for this hoisting wheel?
A: It can be mounted to extension ladders or scaffolding.
Q: How many locking pins are included?
A: Two locking pins are provided.
Q: What is the weight of the unit?
A: Approximately 8 lb.
