Price: $146.83
Item #GUA-00610
Write a review!
Description

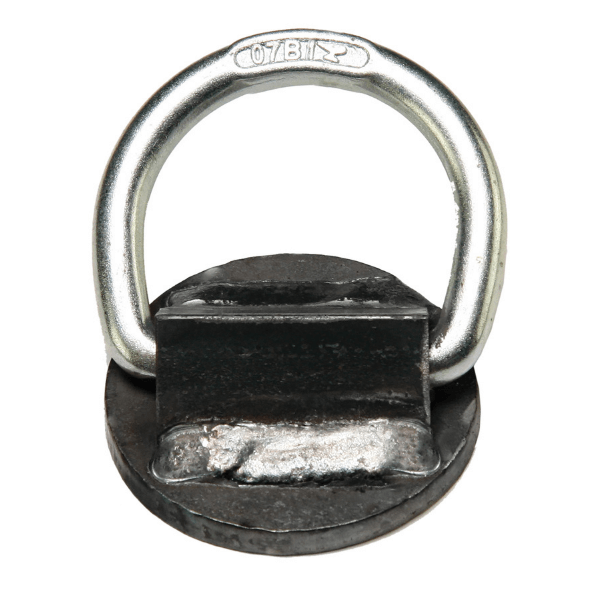

The Guardian Fall Protection CB-1-W Weld-On Wall Anchor (00610) is a permanent anchorage connector engineered for welding onto steel wall structures. Made from heavy-duty steel, this anchor delivers a secure and permanent tie-off point for fall arrest, restraint, or work positioning systems. Its weld-on design ensures maximum stability and durability for long-term safety solutions in industrial and commercial environments. Built for reliability under tough conditions, the Guardian 00610 CB-1-W is OSHA and ANSI compliant, making it a trusted choice for professional fall protection.
Key Features:
-
Permanent weld-on wall anchor for steel structures
-
Heavy-duty steel construction for long-term durability
-
Provides a fixed tie-off point for fall protection systems
-
Designed for industrial and commercial applications
-
OSHA and ANSI compliant
Specifications
- Model: 00610
-
Type: CB-1-W Weld-On Wall Anchor
-
Material: High-strength steel
-
Dimensions: Base plate approx. 6 in × 6 in; D-ring height approx. 2 in
-
Weight: Approx. 4–5 lb
-
Capacity: 1 user, 130–420 lb (per OSHA/ANSI)
-
Application: Permanent weld-on installation to steel wall surfaces
-
Compliance: OSHA 1910.140, OSHA 1926.502, ANSI Z359.18
-
Includes: (1) CB-1-W Weld-On Wall Anchor
How To
- Select a suitable steel wall surface that meets structural requirements.
-
Position the CB-1-W base plate flat against the steel surface.
-
Weld the base plate fully around all edges to ensure permanent attachment.
-
Allow welds to cool and visually inspect for proper bonding.
-
Attach lanyard, SRL, or lifeline to the anchor’s D-ring.
-
Inspect welds and anchor regularly for integrity.
FAQs
Q: What material can the CB-1-W be welded to?
A: It is designed specifically for steel wall surfaces.
Q: Is this a permanent anchor?
A: Yes, the weld-on design creates a permanent attachment point.
Q: What material is the CB-1-W made from?
A: Heavy-duty high-strength steel.
Q: How many users can tie off to it at once?
A: It is rated for one user, 130–420 lb.
Q: Is the CB-1-W OSHA and ANSI compliant?
A: Yes, it meets OSHA 1910.140, OSHA 1926.502, and ANSI Z359.18 standards.
