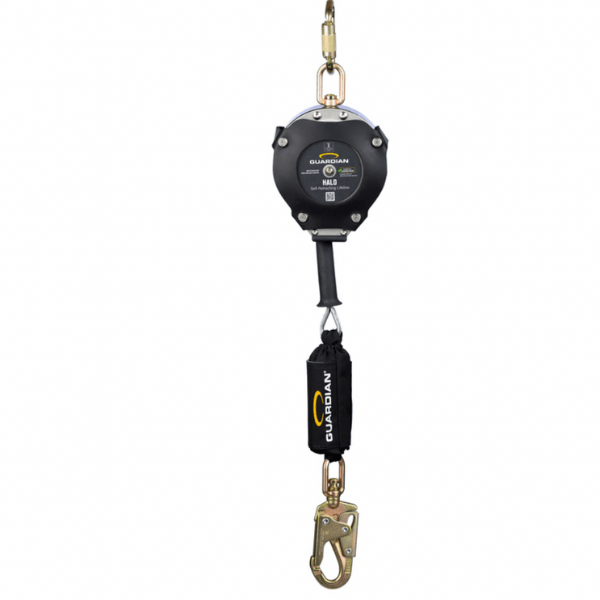

    The original SRL-LE from Guardian

    The Halo Class 2 Self-Retracting Lifeline is part of Guardian’s strongest lineup of SRLs in the industry. This anchored Class 2 SRL is recognized throughout the industry for its superior performance. Packed full of useful features, the Halo SRL includes a QR code for instant access to product specifications and instructions, and a protective shock pack cover with integrated fall clearance charts. Built for max durability with a metal housing, this SRL is designed to take on our customer's toughest tasks.

    Features:

      • Carabiner included
      • Compact and lightweight design for easy transport around the jobsite
      • Swivel top connection point helps reduce lifeline snagging or tangling
      • Integrated fall clearance charts to calculate fall clearance anytime..anywhere
      • Digitally enabled QR code on the housing label for easy access to manuals, labels, and product specifications.
      • Stainless steel lifeline available
    • QR Code: Digitally enabled QR code on the housing links to the website product page for instant access to the instruction manual, technical data sheet, compliance documentation, and other important product information.
    • Cable Diameter: Increased by 10% to handle our customer’s toughest tasks.
    • Fall Clearance Chart Integration: Integrated fall clearance charts for the Class 2 SRLs to calculate fall clearance anytime… anywhere!
    • Increased Strength: A minimum 10% increase in dynamic strength and up to a 20% increase in static strength.
    • Shock Pack Design: 30% reduction in the Class 2 shock pack size for a more compact and sleeker design.

    Performance:

    LE USE: A LE application is one where the lifeline of the lifeline could potentially come into contact with the edge of the fall hazard, cutting or severely damaging it. OSHA defines a "Leading Edge" as a walking/working surface (horizontal and vertical surface) with an unprotected side or edge which is 6 feet (1.8 m) or more above a lower level. However, the industry has also adopted the term "Leading Edge" for products, in reference to what's actually considered "Sharp Edges". This is derived from the ANSI standard referencing an edge with a radius of no more than .005". At an edge this sharp, and/or an application where the tie-off anchor is at foot level, non-LE lifelines are susceptible to being cut or severely damaged in the occurrence of a fall - particularly one with potential for swing.

    • Max. Arrest Force: 1,800 lbs.
    • Max. Arresting Distance: 1,800 lbs.
    • Fall Clearance: 17’ - 21’

    Non-LE USE:
    • Max. Arrest Force: 1,800 lbs.
    • Max. Deceleration Distance: 54”
    • Fall Clearance: 9’
    • Class B SRL

    Applications:

    Personal Fall Arrest:
    Halo Cable SRL-LEs may be used in Personal Fall
    Arrest applications to support:
    - Maximum1 Personal Fall Arrest System (PFAS)
    - Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs.
    - Maximum permitted free fall is 6’
    - SRL may be positioned no more than 6’ below harness dorsal D-ring
    - Applicable D-rings: Dorsal

    Restraint:
    Halo Cable SRL-LEs may be used in Restraint applications. Restraint systems:
    - Prevent workers from reaching the leading edge of a fall hazard
    - Always account for fully deployed length of SRL. Structure must withstand loads applied
    in the directions permitted by the system of at least 1,000 lbs
    - No free fall is permitted
    - May only be used on surfaces with slopes up to 4/12 (vertical/horizontal)
    - Applicable D-rings: Dorsal, Chest, Side, & Shoulder

    Specifictions

    Applicable Standards: ANSI Z359.14-14, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910

    Worker Capacity Range: LE Use: 130-310 lbs. / Non-LE Use: 130-420 lbs.

    Materials: Aluminum & Steel

    Product weight

    15.72LB / 6.80KG

    Product length

    9.5'' / 22.86CM

    Product height

    15'' / 38.10CM

    Removal of Recertification

    Guardian Fall Protection customers,

    As a result of Guardian’s continued manufacturing success with our Retractable Lifeline Division, Guardian is proud to announce that we will no longer require a mandatory two year recertification on any SRL manufactured after October 1st, 2009.

    Consult all local applicable standards for fall protection equipment. As a general guideline, OSHA and ANSI do not require a mandatory recertification frequency. Guardian’s Policy requires that the unit shall be inspected before each use and at least once annually by a competent person. If this unit fails inspection then the SRL shall be sent to an authorized service center for inspection/maintenance.

    Ed Marquardt,

    Guardian Fall Protection

    FAQs

    Q1: When will Halo Cable ANSI Z359.14-2021 SRLs Launch?
    A1: We anticipate ALL SKUs to be available by the end of Q4 2023. The Halo Class 1 SRLs will be launched throughout the last two weeks of October and the Halo Cable Class 2 SRLs will be launched in November 2023.

    Q2: Will my customer need to dispose of their current Halo Cable SRL and purchase the new unit to be compliant with ANSI?
    A2: No, your customer will not need to purchase a new Halo Cable Class 1/Class 2 SRL to be ANSI compliant. All units that were manufactured and marked to the previous ANSI Z359.14-2014 standard will remain ANSI compliant and can be used provided the product passes all inspections in accordance with the manufacturer user instructions. Only new SRLs that are manufactured and marked as meeting ANSI after the effectivity date of ANSI Z359.14-2021 will need to meet all requirements of the new 2021 standard to be ANSI compliant.

    Q3: Will the part number change because of the new standard?
    A3: No. The part number will not be changing due to the new 2021 standard for the Halo Cable SRL. We did not change the part number to make this transition as seamless as possible for our customers.

    Q4: If the part numbers are not changing, will my customers receive mixed orders with SRLs that are marked to the new and previous standard?
    A4: No. Guardian has developed a comprehensive inventory plan that will ensure that no orders will be filled with a mix of products that meet the new and previous standard.

    Q5: Will returns be permitted for SRLs that were manufactured to the previous version of the standard?A5: No. Guardian will continue to support our customers by offering repair and recertification service for SRLs that require repair but will not accept returns because a product was manufactured and marked to the previous version of ANSI Z359.14.

    Q6: If I send in my Halo Cable SRL ANSI Z359.14-2014 in for repair, will Guardian repair the SRL to be ANSI Z359.14-2021 compliant?
    A6: No. At this time, Guardian will be not retrofitting Halo SRLs to be 2021 compliant when sent into Guardian for repair. The units will be repaired to the standard that the SRL reflects on the back of the housing label.
