- Heavy-Duty Forged Cast Iron: Cast from commercial-grade iron to deliver exceptional structural strength, ensuring high crush resistance and long-term durability in demanding industrial roofing applications.
- Watertight Membrane Compression: Engineered to anchor and compress roofing membranes or flashing flatly against the drain body flange, eliminating gaps to establish an absolute watertight seal.
- Signature Green Protective Coating: Finished with a durable, weather-resistant green Duco coating that protects the underlying metal from rust, corrosion, standing water, and typical jobsite grime.
- Precise Josam 414 Bolt Geometry: Features an exact 13-1/4" outside diameter with a specialized bolt pattern, measuring 10-1/2" bolt-to-bolt at 180-degrees and 7-1/2" between adjacent bolt positions for a perfect flush fit.
Price: $369.95
Item #316-010350
Write a review!
Description

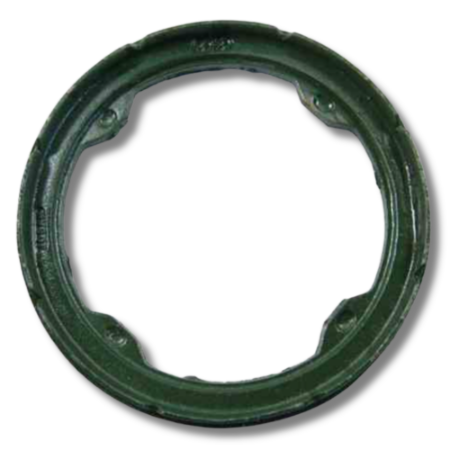

The Josam 414 Cast Iron Clamp Ring is manufactured from coated cast iron in a green finish and is designed for use with Josam 414 series roof drains. It features an outside diameter of 13-1/4 inches and bolt-to-bolt spacings of 10-1/2 inches (180°) and 7-1/2 inches. The ring secures roofing membrane or flashing to the drain body to maintain a watertight seal.
Key Features
-
Material: cast iron
-
Color: green
-
Outside diameter: 13-1/4 inches
-
180° bolt-to-bolt diameter: 10-1/2 inches
-
Bolt-to-bolt spacing: 7-1/2 inches
Specifications
Manufacturer: Josam Company
Model/SKU: 414
Material: Cast iron (coated)
Color: Green
Outside diameter: 13-1/4 inches
180° bolt-to-bolt diameter: 10-1/2 inches
Bolt-to-bolt spacing: 7-1/2 inches
Quantity: Kits sold individually
Gate: Not included (sold separately)
How To
- Remove any existing clamp ring from the Josam 414 series drain body.
-
Ensure the drain flange and surrounding membrane or flashing are clean and correctly positioned.
-
Place the 414 Cast Iron Clamp Ring over the drain body aligning the bolt holes with the body’s bolt pattern.
-
Secure the ring using the appropriate bolts or fasteners per manufacturer instructions, ensuring even compression of the membrane or flashing.
-
Inspect the installation to confirm the ring is seated evenly and the membrane or flashing is secured without gaps or lifting.
FAQs
Q: What is the outside diameter of the 414 Cast Iron Clamp Ring?
A: The outside diameter is 13-1/4 inches.
Q: What are the bolt-to-bolt dimensions for the 414 ring?
A: The ring’s 180° bolt-to-bolt diameter is 10-1/2 inches and the bolt-to-bolt spacing is 7-1/2 inches.
Q: Does this ring include the drain dome or drain body?
A: No. The 414 Cast Iron Clamp Ring is sold as an individual component and does not include the dome or drain body.
