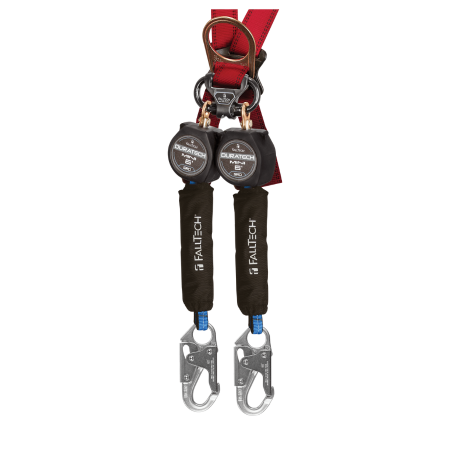

FallTech 72706TB1 - DuraTech® Mini Class 1 Personal SRL-P w/ Steel Snap Hooks, Includes Steel Dorsal Connecting Carabiner, 6'

The FallTech 72706TB1 DuraTech Mini 6-ft Twin-Leg Personal SRL-P is engineered for compact fall-arrest applications with twin-leg configuration and full tie-off capability. It features internal locking pawls, ViewPack® external energy absorbers, a long-wearing Dyneema/Polyester blended web lifeline, alloy steel snap hook anchorage connectors, and an alloy steel dorsal connecting carabiner with alignment clip. The nylon housing is impact resistant and the device allows anchorage up to 5 ft below the dorsal D-ring for users weighing up to 310 lb. It complies with ANSI Z359.14-2021 for Class 1 SRL-P.

Key features:

• Twin-leg SRL-P for 100% tie-off and dual attachment legs
• 6-ft working length web lifeline designed for overhead or near-dorsal D-ring install
• Internal locking pawls and ViewPack® external energy absorber for smooth deceleration
• Compacted nylon housing with swivel-eye to minimize leg twisting and enhance durability

• SKU: 72706TB1
• Product type: DuraTech Mini Twin-Leg Personal SRL-P (6-ft)
• Web lifeline: Dyneema®/Polyester blend; minimum 4,500 lb static strength
• Static strength: Minimum 3,600 lb
• ANSI SRL Class/Type: Class 1 SRL-P
• Avg. arrest force: Approximately 900 lb maximum
• Max. arrest force: 1,800 lb maximum
• Max. arrest distance: 54 inches (or as noted “up to 54″”)
• Connector (anchorage & dorsal): Plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength
• Anchor installation range: Accepts tie-off up to 5 ft below the dorsal D-ring without edge hazard for users up to 310 lb
• Working length: 6 ft
• Compliance: ANSI Z359.14-2021; CSA Z259.2.2-2017; OSHA 1926.502 & 1910.66

Q: What does the twin-leg configuration mean for model 72706TB1?
A: Twin-leg configuration means the unit provides dual attachment legs allowing 100% tie-off and continuous connection during transitions between anchor points.

Q: What is the working length of this SRL-P device?
A: The working length is 6 ft.

Q: Can this SRL be anchored below the dorsal D-ring?
A: Yes, it allows anchorage up to 5 ft below the dorsal D-ring for users weighing up to 310 lb without edge hazard.

Q: What type of web lifeline does the 72706TB1 use and why is it significant?
A: It uses a Dyneema®/Polyester blended web lifeline rated at minimum 4,500 lb static strength, offering durability and abrasion resistance in demanding environments.
