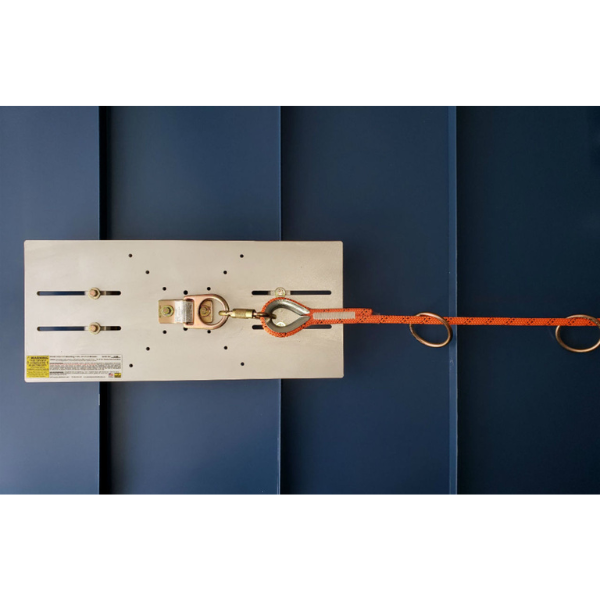

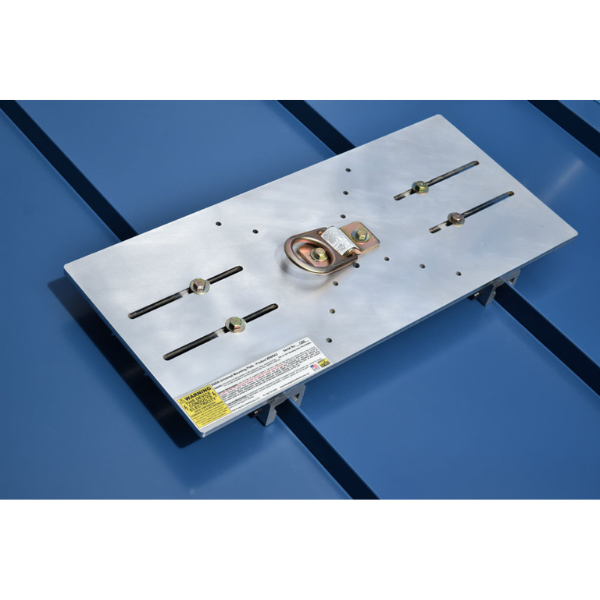

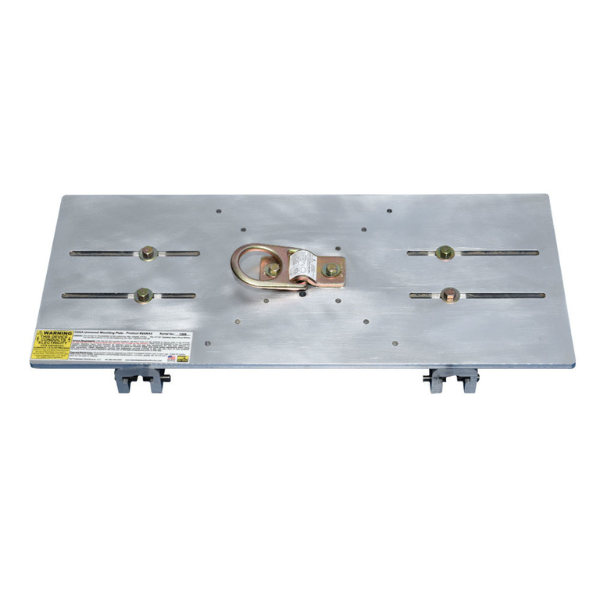

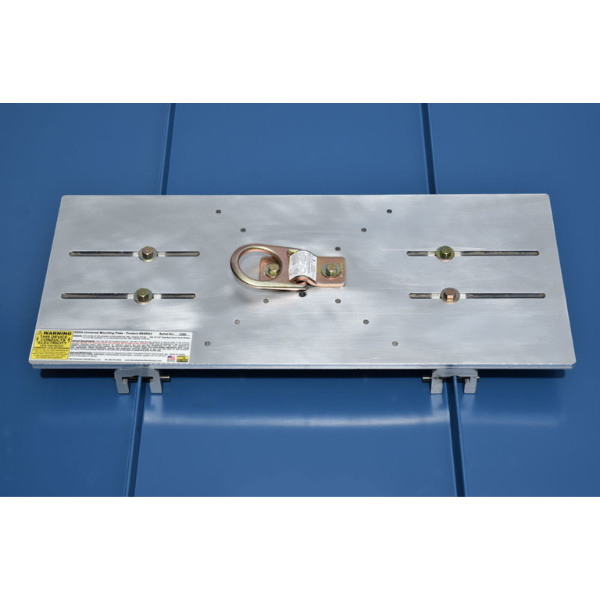

The SSRA3 Universal Mounting Plate was engineered as a secure non-penetrating mounting solution for various equipment on standing seam roof systems. Constructed of 6061-T6 Aluminum and professionally tested to over 10,000 lbs., far beyond the strength of any roofing system. The SSRA3 is pre-drilled to accept the FallTech 7395A / 7395D Rotating SRD anchor and self retracting devices up to 65 ft. However, up to 12 additional mounting holes may be drilled to accept a wide range of equipment.

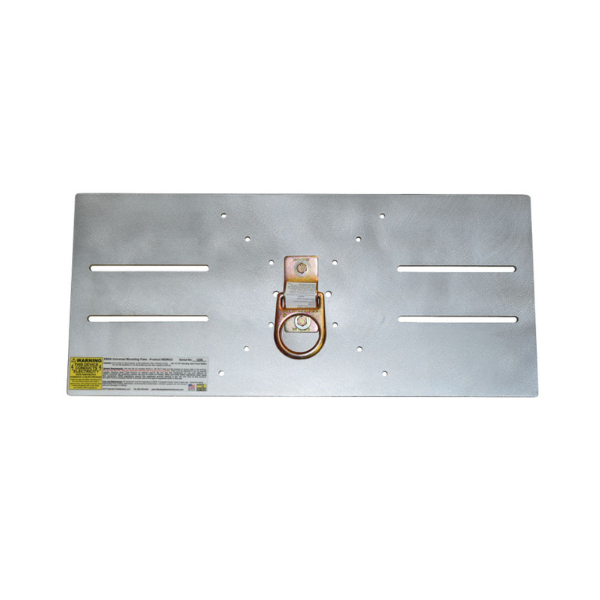

Overall plate dimension are 12 in. x 27 in. with a 11 in. x 12 in. mounting area between the slide grooves. The SSRA3 plate will fit all compatible standing seams 12 in. - 24 in. wide.
- (1) 6061-T6 Aluminum Plate
- (12) Grade 8, 1/4-20x1-1/4" Bolts
- (12) Grade 8, Hex Nuts
- (24) Grade 8, Flat Washers
- (12) Grade 8, Lock Washers
- (4) Grade 8, 3/8-16x1" Top Bolts
- (4) Grade 8, 3/8" Flat Washers
