New!
Price: $1,668.95
Item #SW-023-24004
Write a review!
Description

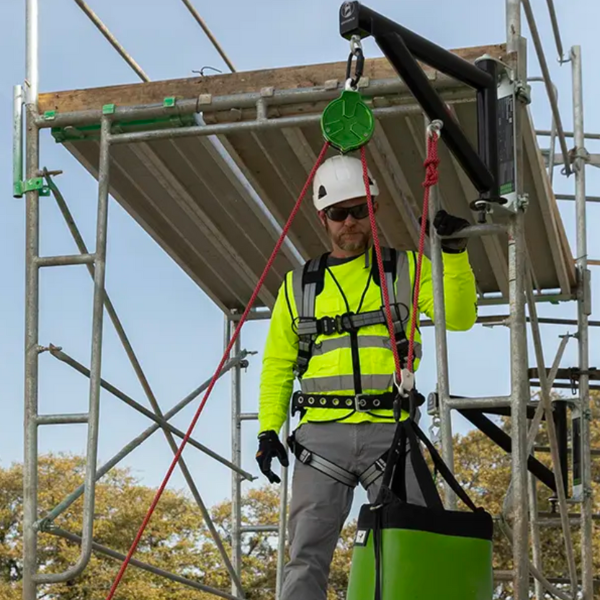

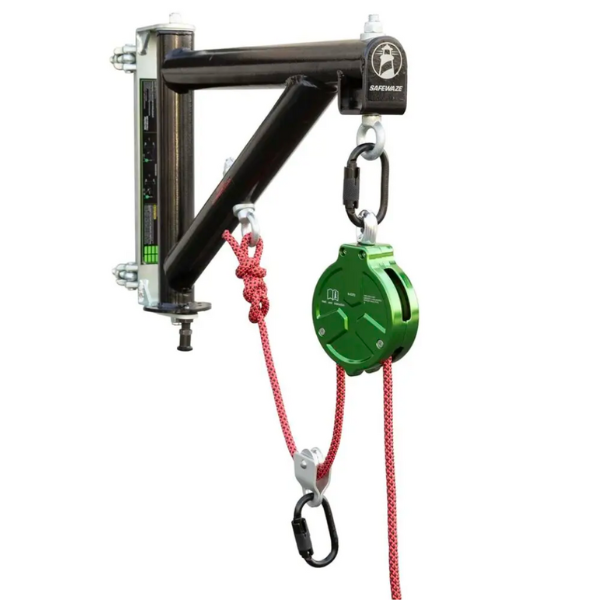

The SafeWaze SW‑023‑24004 Mounted Material Lift System is a scaffold-mounted anchor point designed to streamline and safeguard material lifting on the jobsite. Easily clamped to vertical scaffolding posts (1.6″–2″ diameter), it enables smooth, dual-mode lifting via 1:1 or 2:1 mechanical advantage. Features like a rope-lock mechanism, horizontal swivel pivot, and included triple-lock carabiners enhance user safety by preventing dropped loads and reducing fall risk. Compatible with optional rope and pulley accessories, this system offers versatile, secure material handling.
Specifications
- Model Number: SW‑023‑24004
-
Product Type: Mounted Material Lift System (Scaffold Anchor)
-

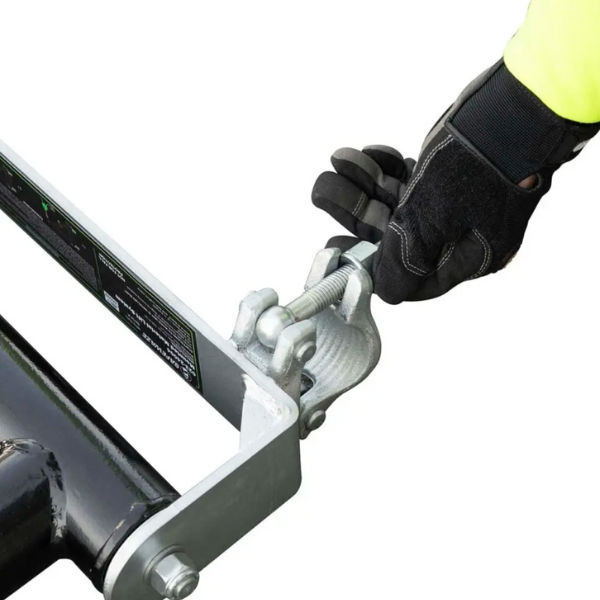

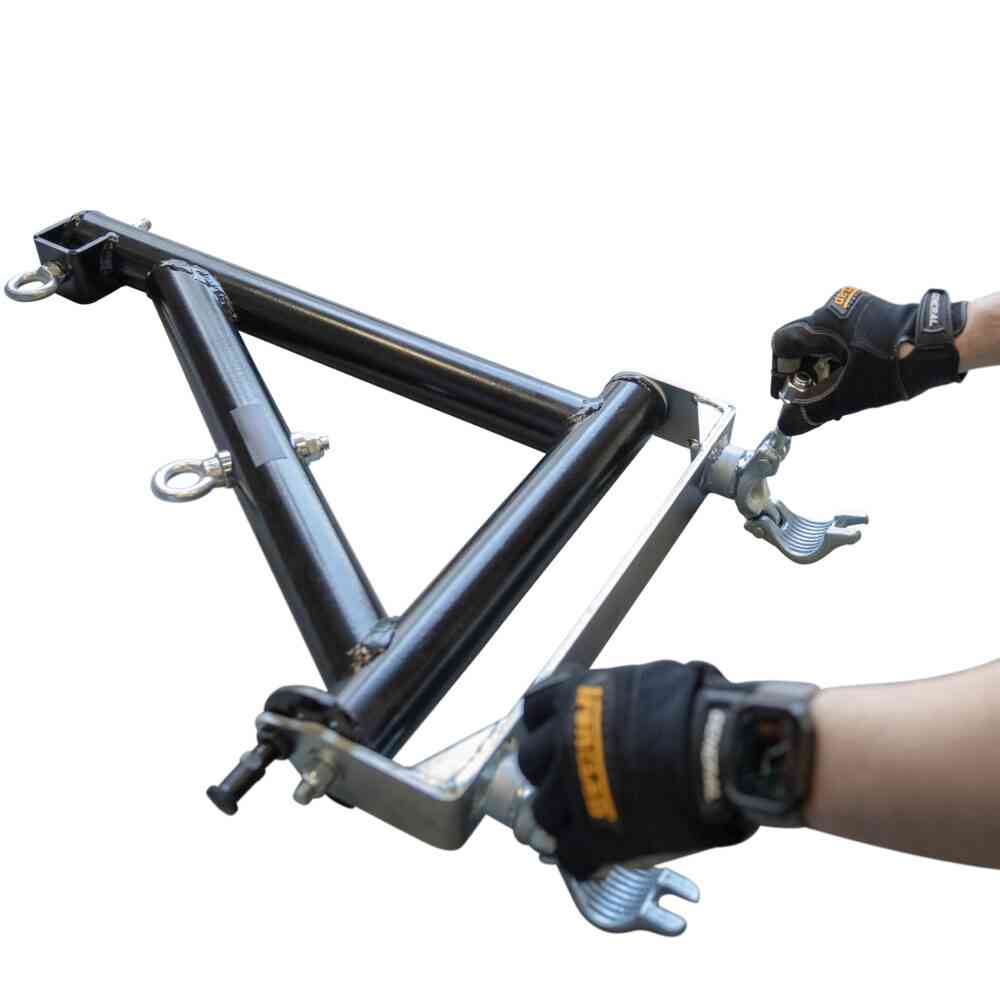

Clamping Capacity: Scaffolding tubes with diameters from 1.6″ to 2″
-

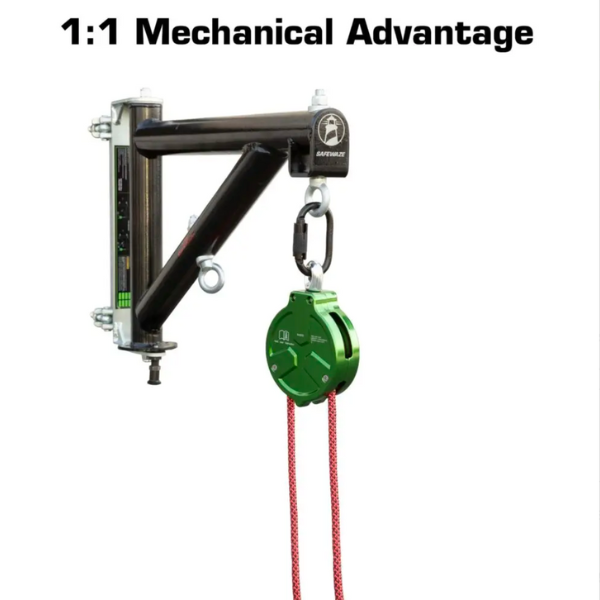

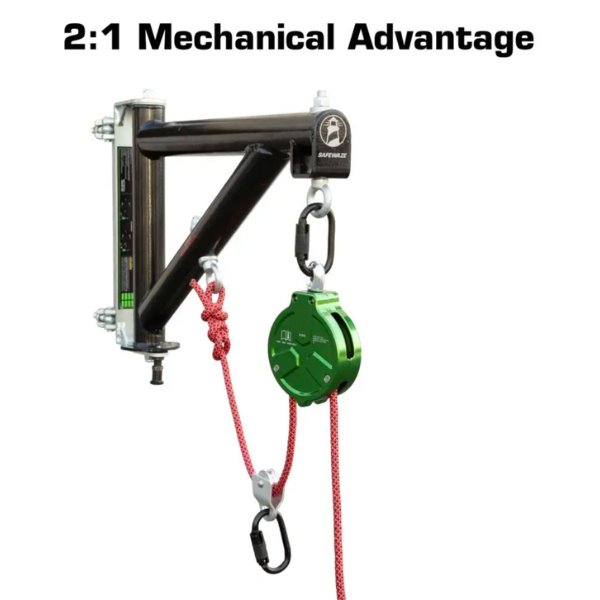

Mechanical Setup: 1:1 or 2:1 mechanical advantage configurations
-
Safety Features: Integrated rope-lock to prevent load drops; horizontal swivel with locking function to reduce swing and fall hazards
-
Included: Two triple-lock carabiners
-
Materials: Steel components and aluminum pulley frame
-
Dimensions: 40″ × 18″ × 2.4″
-
Weight: 35.1 lb
-
Working Load Limit (WLL): 500 lb (226.8 kg)
