SafeWaze Latitude Pro Arc Flash 7' Single Web SRL-P: Carabiner, Class I

The SafeWaze Latitude Pro Arc Flash 7′ Single Web SRL‑P brings ANSI and OSHA-certified overhead fall protection to high-heat environments. Featuring Kevlar® flame-resistant webbing, a translucent side-payout housing for visual inspection, and a sealed internal braking system, each unit offers reliable fall arrest without relying on external shock packs. Equipped with a 9013 Behind‑the‑Web mounting bracket and swivel top carabiner, this Class I SRL is available with four connector options: steel snap hook, steel rebar hook, aluminum snap hook, or aluminum rebar hook—ideal for welding, arc flash zones, and hot-work applications.

• Product Series: SafeWaze Latitude Pro Arc Flash 7′ Single Web SRL‑P

• SRL Classification: Class I (overhead anchorage only)

• Rated Length: 7 ft (2.1 m)

• Webbing Material: Kevlar® webbing, 20 mm wide

• Housing Material: Clear/translucent resin side-payout housing

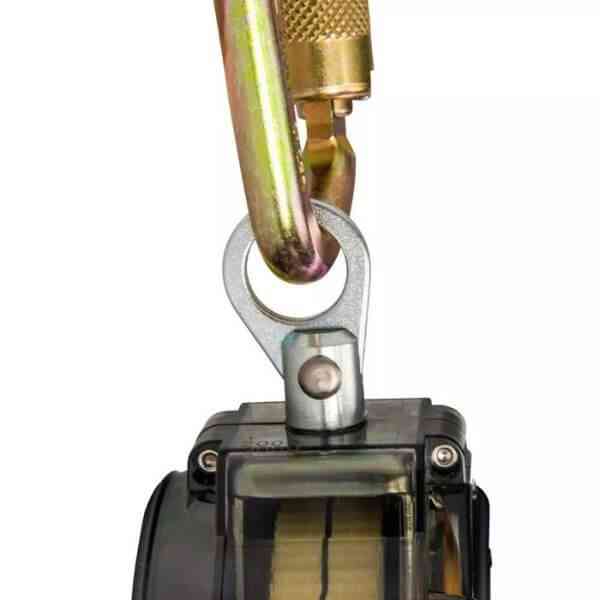

• Top Connector: Swivel steel carabiner with 9013 Behind‑the‑Web bracket

• Working Load Capacity: ANSI-rated 130–310 lb; OSHA overhead use up to 420 lb

• Average Arrest Force: ≤ 1,350 lb

• Maximum Arrest Force: ≤ 1,800 lb

• Maximum Arrest Distance: ≤ 24 in

• Braking System: Internal centrifugal design (no external shock pack)

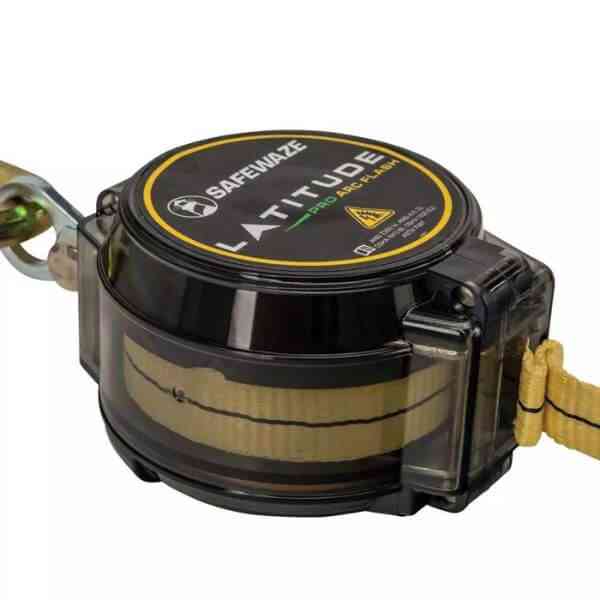

• Inspection Feature: Resin housing permits visibility of reserve line, braking mechanism, and webbing

• Standards Compliance: ANSI Z359.14‑2021; ANSI A10.32; OSHA 1910.140 / 1926.502; ASTM F887 (arc-rated)

• Connector Variants with Weight:

  • 020‑5200 – Steel Snap Hook: 3.0 lb

  • 020‑5201 – Steel Rebar Hook: 3.0 lb

  • 020‑5202 – Aluminum Snap Hook: 3.0 lb

  • 020‑5203 – Aluminum Rebar Hook: 3.6 lb

Q: What is the Latitude Pro Arc Flash 7' Single Web Self-Retracting Lifeline used for?

A: The Latitude Pro Arc Flash Self-Retracting Lifeline is designed for use in environments with extreme heat, such as arc flash situations, hot work, and welding. It provides fall protection while withstanding high temperatures and harsh conditions.

Q: What makes this lifeline suitable for extreme heat environments?

A: The lifeline features trusted Kevlar® webbing and a Nomex® flame-resistant label cover, which offer excellent resistance to heat and flames. Additionally, its high-strength semi-sealed assembly protects internal components from debris, extending the product's life in harsh environments.

Q: How does the internal braking system work?

A: The revolutionary internal braking system is exclusive to Safewaze and eliminates the need for an external shock pack. It provides reliable fall arrest by engaging a braking mechanism within the housing, offering enhanced safety and performance.
