Price: $329.40
Item #SW-022-5308
Write a review!
Description

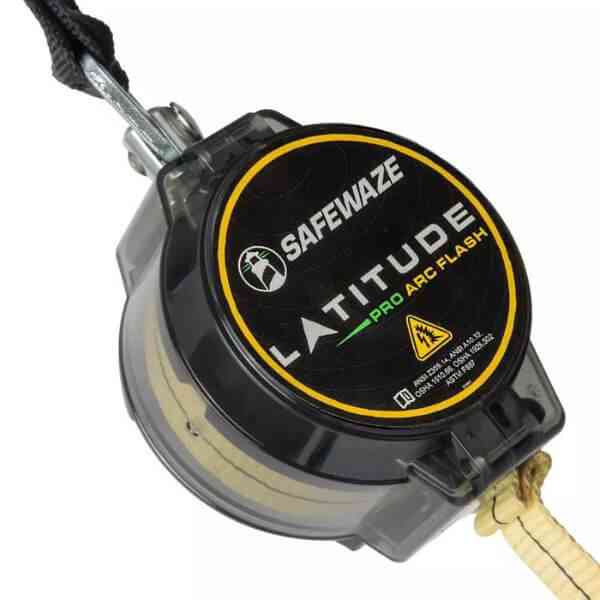

The SafeWaze 022‑5308 Latitude Pro Arc Flash 7′ Single‑Web SRL‑P is built for arc flash and hot-work environments, combining Kevlar® webbing, a non‑conductive soft loop attachment, and a dielectric snap hook. Housed in a translucent resin casing with side-payout design, it features an internal centrifugal braking system—eliminating the need for an external shock absorber. The unit pivots freely via a 360/180° swivel, enhancing mobility. Designed to deliver safety, visibility, and arc-rated reliability in extreme environments.
Specifications
- Product Type: Self-retracting lifeline (SRL-P), single leg
-
Working Length: 7 ft
-
Lifeline Material: Kevlar® webbing with Nomex® label cover
-
Housing: Translucent high-impact polymer
-
Top Connector: Swivel steel carabiner
-
Bottom Connector: Aramid soft loop with dielectric snap hook
-
Unit Weight: Approx. 2.5 lb
-
Breaking Strength: ≥ 5,000 lb
-
Gate Strength: ≥ 3,600 lb
-
User Capacity:
-
ANSI: 130–310 lb
-
OSHA: Up to 420 lb (overhead anchorage)
-
Performance Classifications:
-
Class A (≤ 24 in arrest distance)
-
Class B (≤ 54 in arrest distance when anchored up to 2 ft below D-ring)
-
Fall Clearance:
-
Class A: Minimum 5 ft 9 in
-
Class B: Minimum 7 ft 6 in
-
Applications: Arc flash, hot work, electrical environments
-
Standards Compliance: ANSI Z359.14-2021, ANSI A10.32, ASTM F887, OSHA 1910.140, OSHA 1926.502
