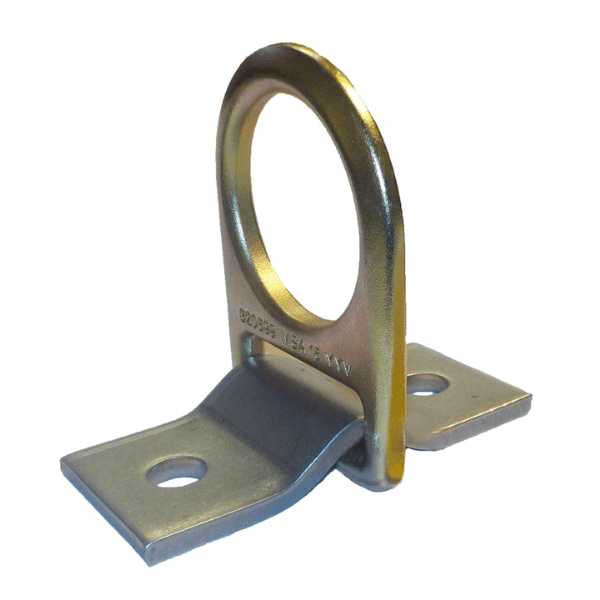

SafeWaze FS888 Bolt on D-Ring Anchor

Built for permanent or semi-permanent tie-off points, the FS888 creates a dependable anchorage on compatible structural members. The low-profile plate bolts directly to approved steel or concrete (per the installation instructions/engineer guidance) and presents a smooth D-ring connection for fast, clean clip-ins. Tough construction and clear labeling make inspections straightforward so crews can get to work—with confidence—at height.

Features

• Bolt-on anchor plate that creates a fixed D-ring tie-off point on qualified structures.
• Smooth, snaphook-friendly D-ring for quick connections and reduced gate wear.
• Rugged, corrosion-resistant steel construction designed for harsh jobsite conditions.
• Low-profile footprint to help minimize snag hazards along walk paths and ladders.
• Versatile mounting orientations (overhead, vertical, or horizontal) when the structure and fasteners are rated accordingly.
• Clear product labeling and serial ID to support inspections and recordkeeping.
• Compliance-minded design intended to meet OSHA and applicable ANSI anchorage requirements when installed per instructions (verify exact standards on the label/manual).
• Uses rated installation fasteners specified by the manufacturer or a qualified person (ensure structure capacity meets or exceeds required loads).

• Product Type: Bolt-on or weldable anchorage point
• Material: Zinc-plated steel plate with forged steel D-ring
• Mounting Method:
  • Bolt-on with two ½″ Grade 5 bolts
  • Weld-on (D-ring must not be welded directly)
• Dimensions: ¼″ x 2″ x 4½″
• Anchor Hole Diameter: ½″
• Minimum Breaking Strength: 5,000 lb
• User Capacity:
  • ANSI: 130–310 lb
  • OSHA: Up to 420 lb (overhead anchorage)
• Use Applications: Fall arrest, fall restraint, work positioning, rescue
• Free-Fall Distance: Up to 6 ft (fall arrest use only)
• Unit Weight: Approximately 1.2 lb
• Compliance: ANSI Z359.1, ANSI A10.32, OSHA 1910.140, OSHA 1926.502

Q: What is the purpose of the Free Moving D-Ring Anchor?

A: The Free Moving D-Ring Anchor is designed for use as a single point anchorage system on steel applications. It provides a secure attachment point for fall protection equipment and allows for free movement of the D-ring after installation.

Q: How can the anchor be installed?

A: The anchor can be either bolted or welded onto steel surfaces. This flexibility allows for different installation methods based on the application and structural requirements.

Q: What materials is the anchor made from?

A: The anchor features a zinc-plated steel D-ring and a forged steel plate. These materials are chosen for their strength and durability.
