Safewaze - 025-4129, Standing Seam HLL Anchor

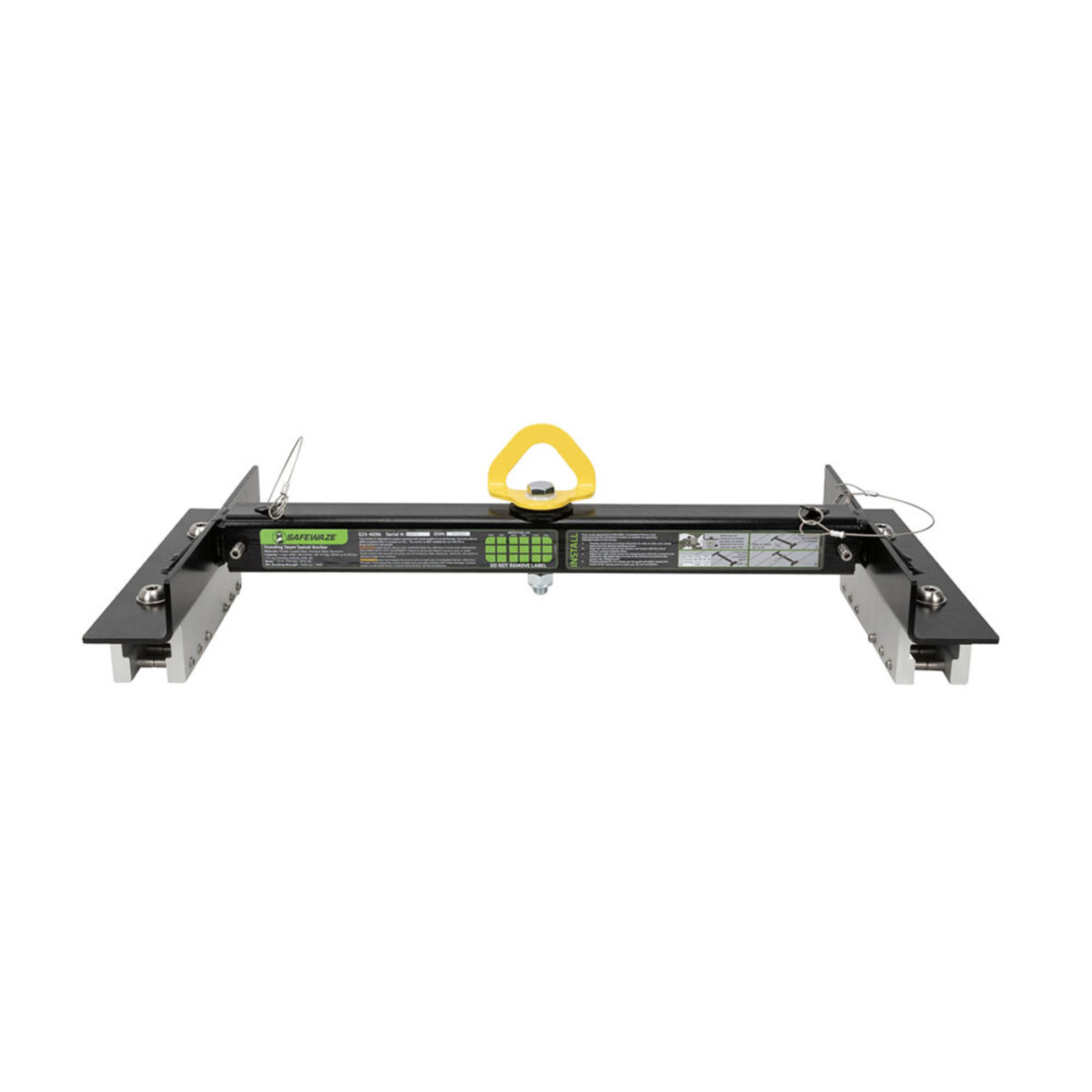

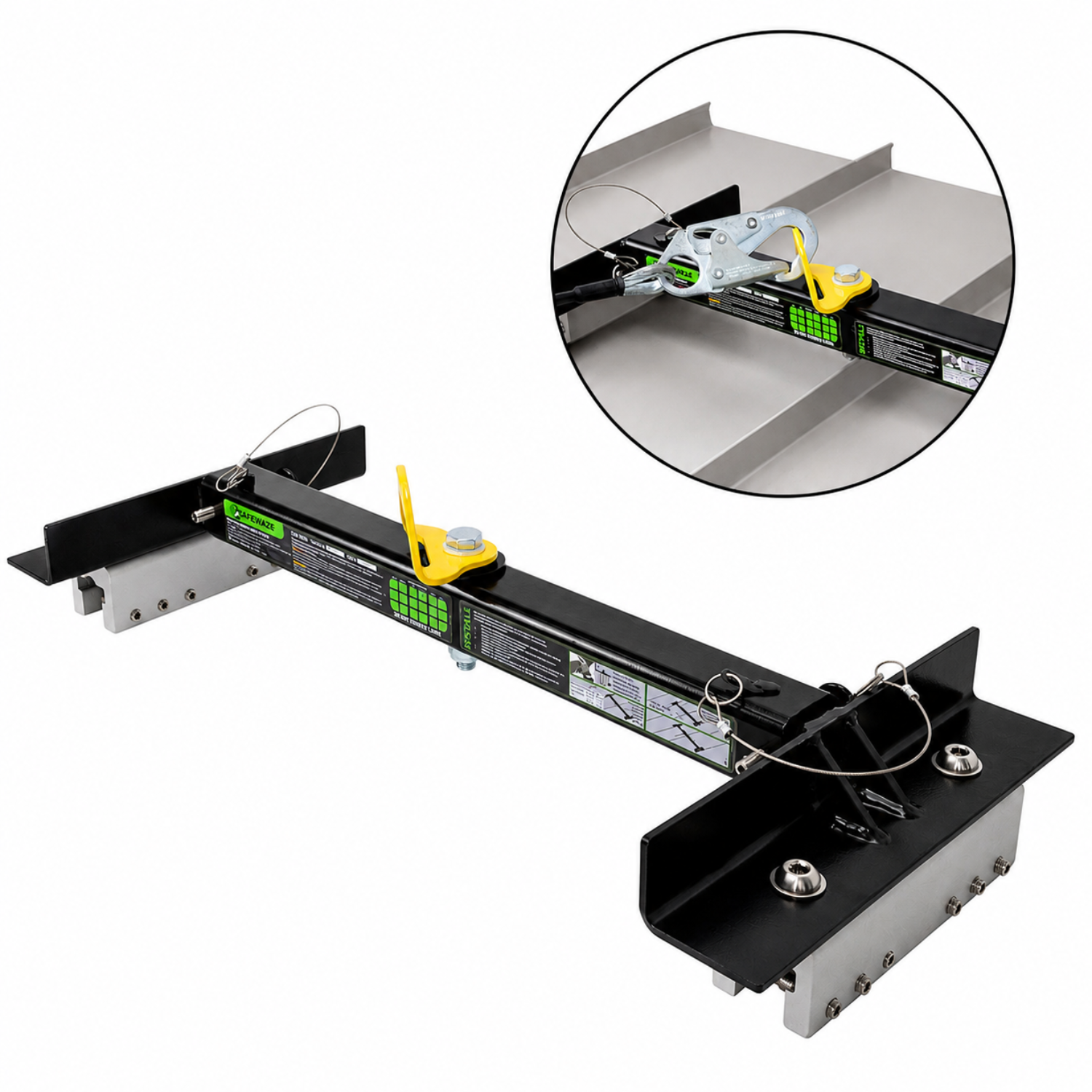

The Safewaze 025-4129 Standing Seam HLL Anchor is a reusable, non-penetrating anchor designed for flat or pitched standing seam roofs with a minimum roof gauge of 26. It provides a fall arrest connection point for standing seam roof applications and is built with an adjustable cross arm that spans 24" to 40" to fit a range of seam spacing.

This anchor includes a 360-degree swivel D-ring that can be used with SRLs, energy absorbing lanyards, VLLs, and HLLs. The system can be used as a single-point anchor for 1 user, or as part of an HLL span for up to 2 users per span when configured properly.

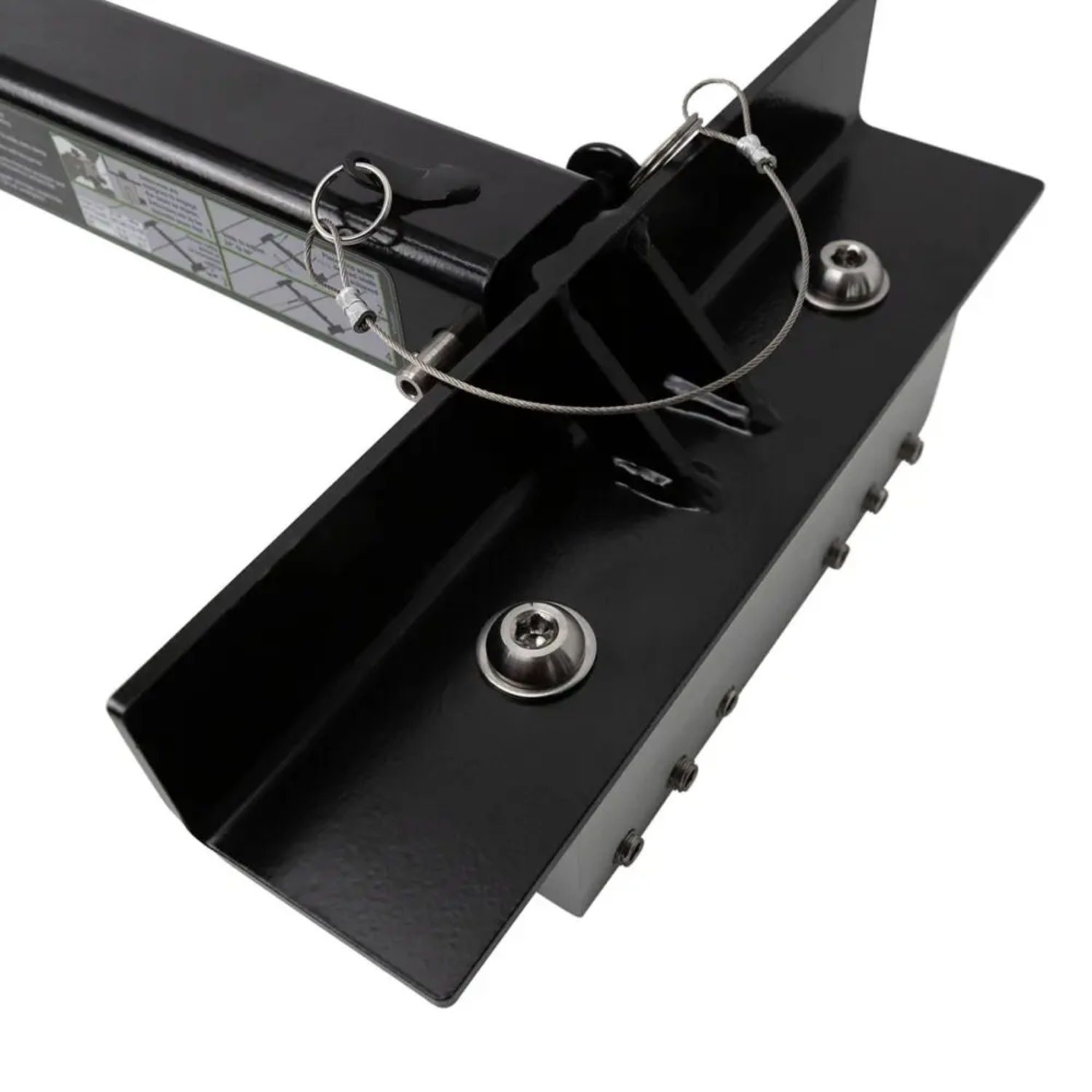

The 025-4129 includes two aluminum clamps, each with twelve stainless steel set screws. Nylon-tipped screws are available separately. The anchor is constructed from powder coated steel and stainless steel, with aluminum and stainless steel clamp components. It has a minimum breaking strength of 5,000 lbs. and is OSHA compliant to 1926.502, 1910.140, and 1910.66.

Key features:

• Reusable non-penetrating standing seam roof anchor
• Designed for flat or pitched standing seam roofs
• Minimum roof gauge: 26
• Adjustable cross arm spans 24" to 40"

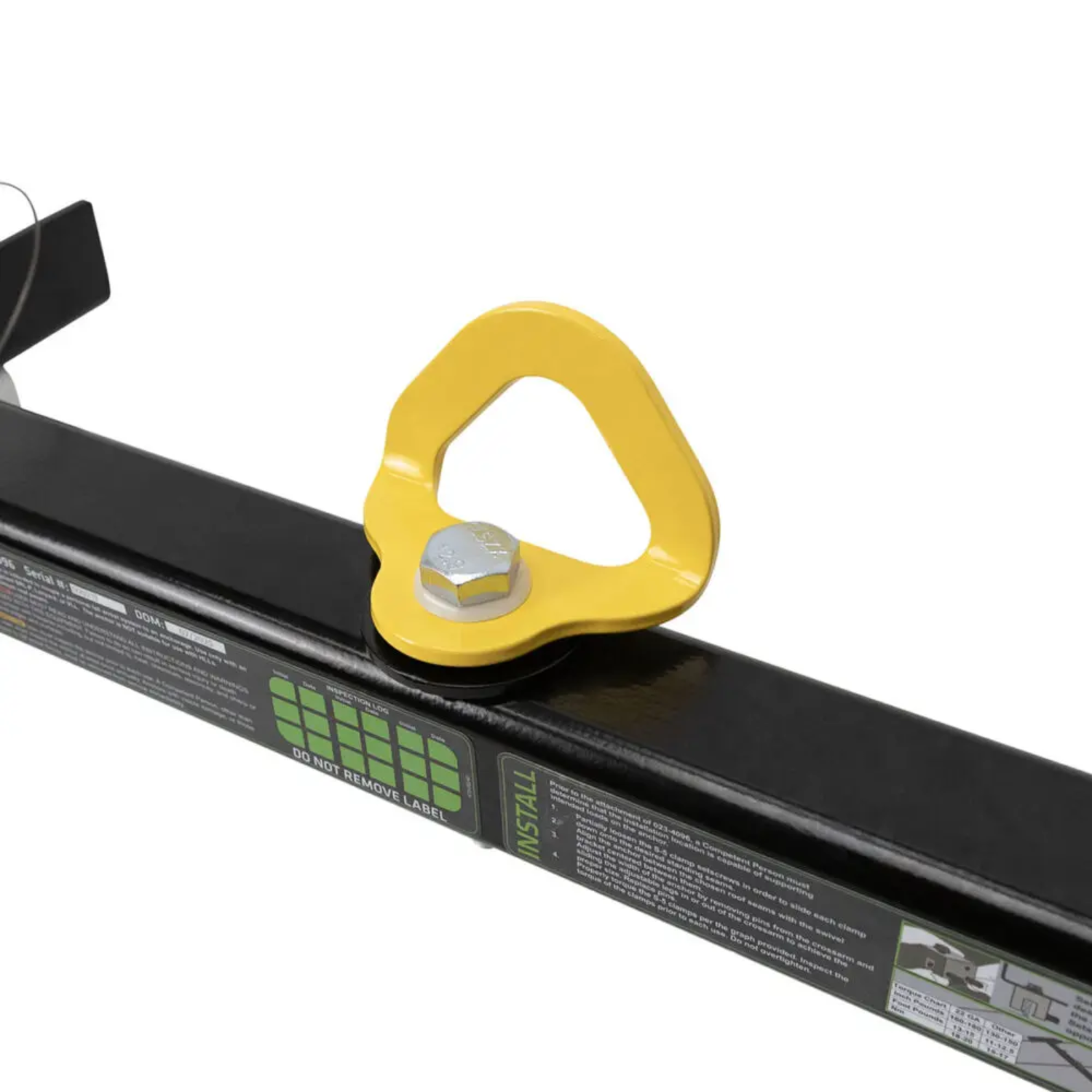

• 360-degree swivel D-ring connection point
• Can be used with SRLs, energy absorbing lanyards, VLLs, and HLLs
• Includes two aluminum clamps
• Each clamp includes twelve stainless steel set screws
• Nylon-tipped screws available separately
• System capacity: 1 user as a single-point anchor
• System capacity for HLL use: 2 users per span
• Minimum breaking strength of 5,000 lbs. / 22 kN
• OSHA compliant to 1926.502, 1910.140, and 1910.66

• Brand: Safewaze
• Manufacturer item number: 025-4129
• Product type: Standing seam HLL anchor
• Anchor style: Reusable non-penetrating roof anchor
• Roof compatibility: Flat or pitched standing seam roofs
• Minimum roof gauge: 26
• Cross arm adjustment range: 24"–40"
• Fall arrest point: D-ring
• D-ring type: 360-degree swivel D-ring
• Compatible connection equipment: SRLs, energy absorbing lanyards, VLLs, HLLs
• Included clamps: 2 aluminum clamps
• Included set screws: 12 stainless steel set screws per clamp
• System capacity as single point: 1 user
• System capacity for HLLs: 2 users per span
• ANSI user weight capacity: 130–310 lbs. / 59–141 kg
• OSHA user weight capacity: Up to 420 lbs. / 191 kg
• Minimum breaking strength: 5,000 lbs. / 22 kN
• Item weight: 24.9 lbs. / 11.3 kg
• Anchor material: Powder coated steel, stainless steel
• Clamp material: Aluminum, stainless steel
• OSHA compliance: 1926.502, 1910.140, 1910.66
