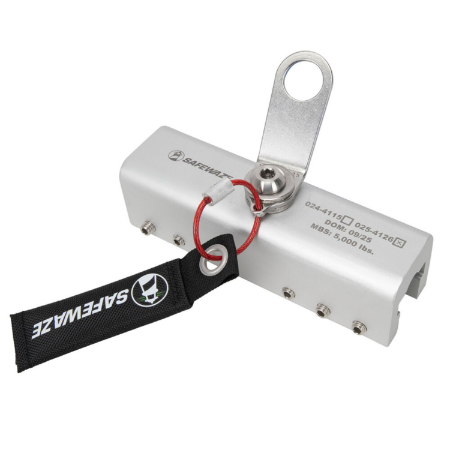

The Safewaze 025-4126 Standing Seam Bar Anchor is a reusable, non-penetrating anchor point designed for standing seam roof applications. It installs onto compatible standing seams using stainless steel set screws with nylon tips, helping provide a secure fall protection connection point without penetrating the roof panel.
This anchor includes a 360° swivel D-ring connection point for use with compatible SRLs, energy absorbing lanyards, and VLLs. The swivel D-ring helps support worker movement around the anchor while maintaining a dedicated attachment point for personal fall arrest or restraint applications.
The 025-4126 is designed to accommodate a wide range of standing seams and may be used on sloped or flat standing seam roofs with a minimum roof gauge of 26. The anchor body is aluminum, the D-ring is stainless steel, and the set screws are stainless steel with nylon tips.
This anchor is rated for one user maximum and has a minimum breaking strength of 5,000 lbs. It is OSHA compliant to 1926.502, 1910.140, and 1910.66. This anchor is not for use with horizontal lifeline systems and is not for material hauling.
Key features:
-
Reusable non-penetrating anchor point for standing seam roofs
-
Designed for sloped or flat standing seam roofs with minimum gauge 26
-
Accommodates a wide range of standing seam profiles
-
360° swivel D-ring connection point
-
Compatible with SRLs, energy absorbing lanyards, and VLLs
-
Includes 12 stainless steel set screws with nylon tips
-
Aluminum anchor body
-
Stainless steel D-ring
-
1 user maximum
-
Minimum breaking strength of 5,000 lbs. / 22 kN
-
OSHA compliant to 1926.502, 1910.140, and 1910.66
-
Not for use with HLLs
-
Not for material hauling
