Safewaze - 024-4109, Reach Anchor Assembly

The Safewaze 024-4109 Reach Anchor Assembly is a portable anchorage system designed to let workers remotely connect to an elevated anchor point before entering an at-height work area. It helps provide an anchorage option for the first worker needing fall protection in a location where an overhead or elevated connection point is available.

The Reach Anchor Assembly uses a two-stage setup. First, the reach anchor is connected to the elevated anchor point without the added weight of an SRL. After the anchor is secured, the SRL or compatible personal fall arrest equipment can be raised and attached. This helps make setup easier when working from a safer position.

This system can connect to I-beams up to 12", pipes, and other pre-established anchor points. It includes a telescoping pole, magnetic quick connector base, and hook attachment. The anchor is designed with self-tightening jaws and a safety toggle to help prevent accidental disengagement. It also includes corrosion-resistant aluminum components for strength and jobsite durability.

The Safewaze Reach Anchor Assembly is rated for one user and has a minimum breaking strength of 5,000 lbs. It is compatible with energy absorbing lanyards, SRLs, and VLLs when used according to manufacturer instructions.

Key features:

• Proprietary remote anchorage system for elevated anchor points
• Helps workers establish an anchor before entering an at-height work area
• Connects to I-beams up to 12"
• Can connect to pipes and other pre-established anchor points
• Compact, lightweight, and portable
• Two-stage installation helps attach the anchor first, then raise PFAS equipment
• Remote release using telescoping pole and attachments

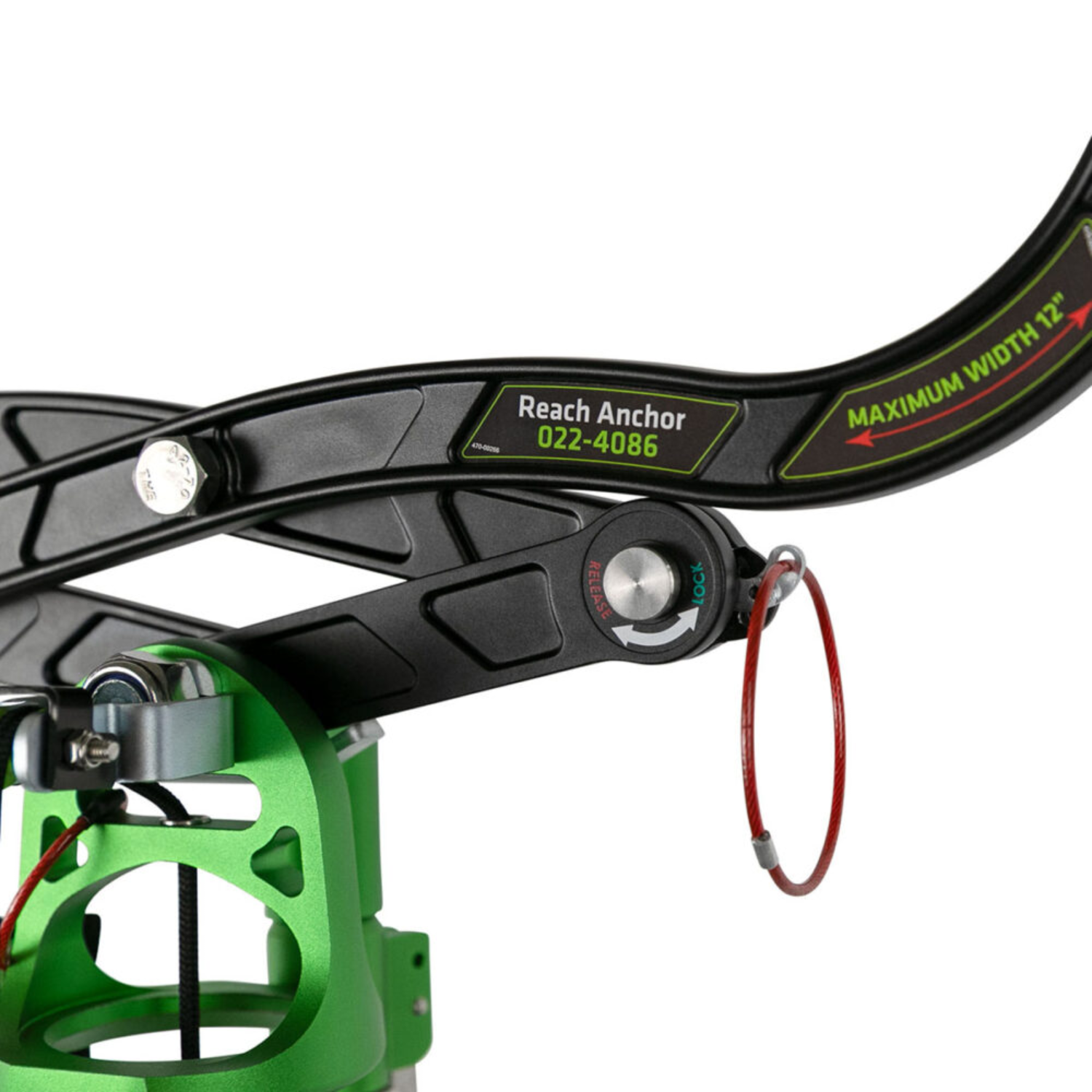

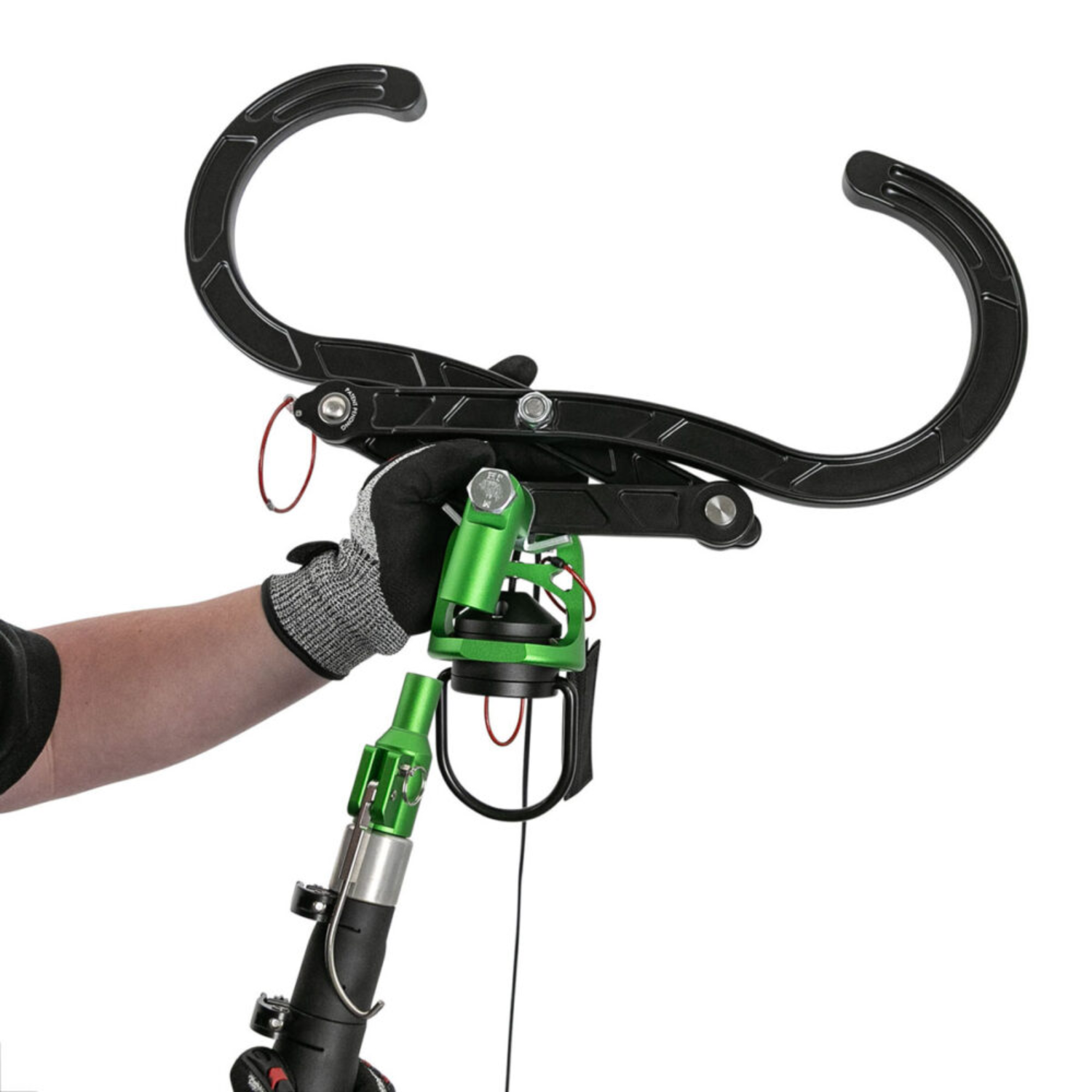

• Self-tightening jaws help secure the anchor
• Safety toggle helps prevent accidental disengagement
• Corrosion-resistant premium-grade aluminum components

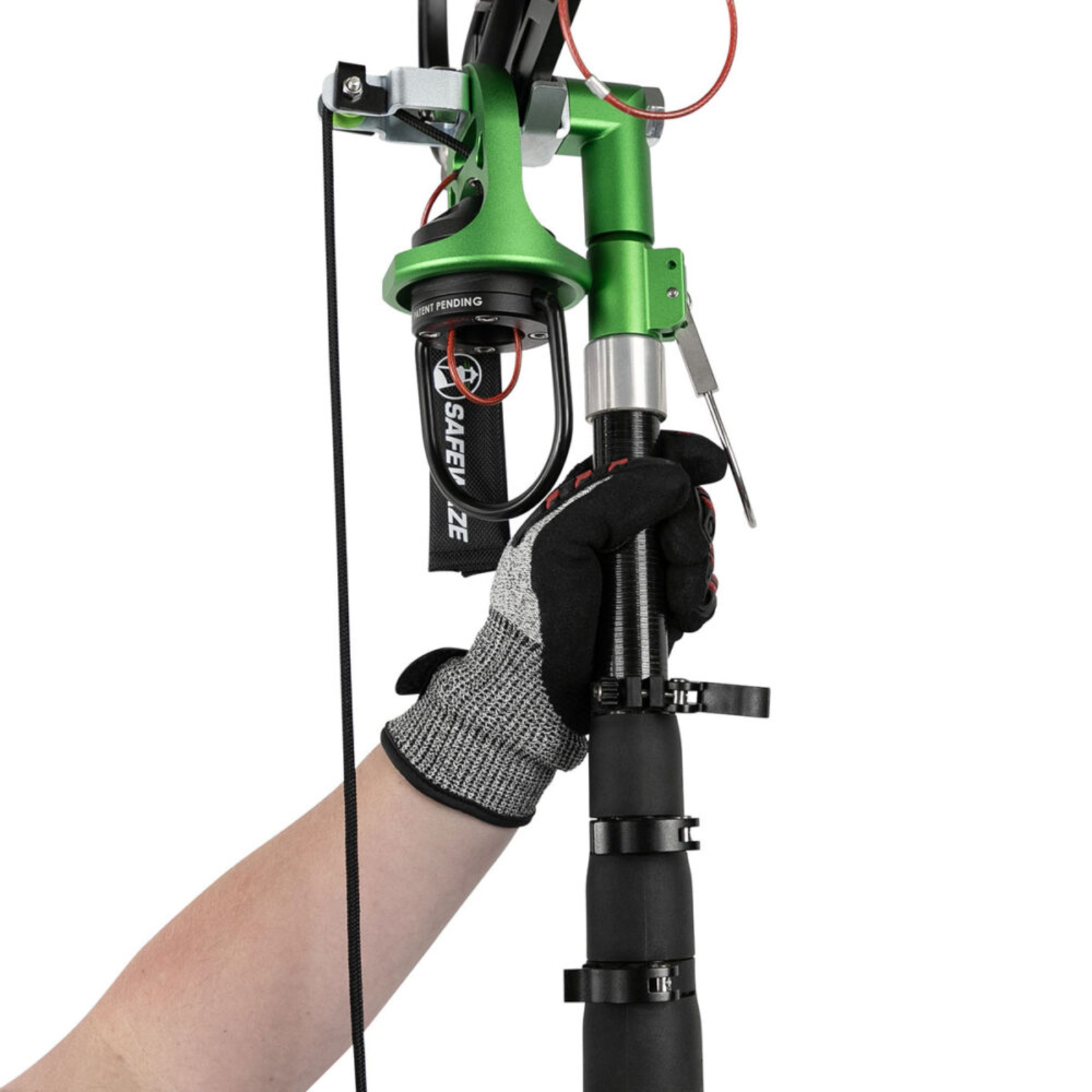

• Includes telescoping pole

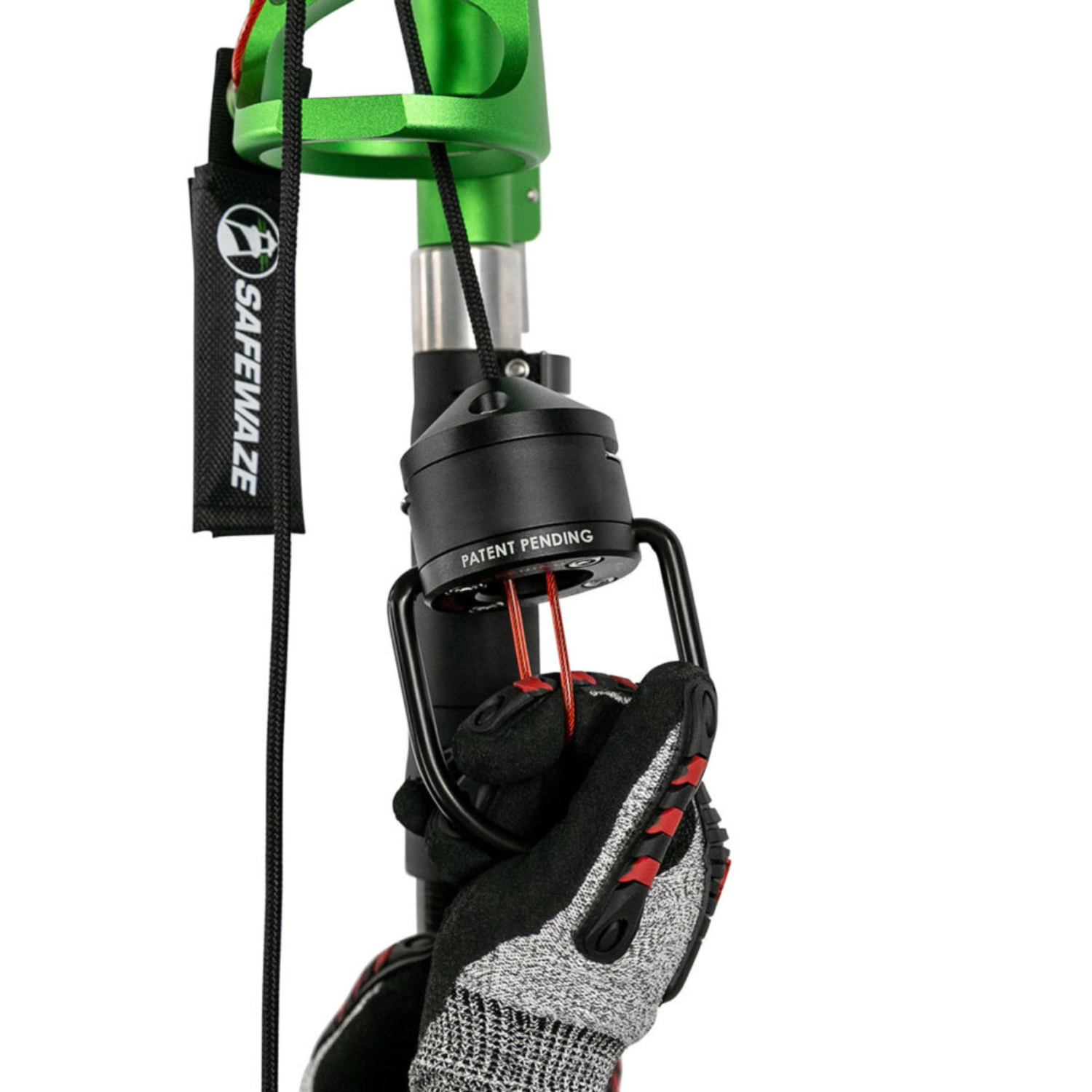

• Includes magnetic quick connector base

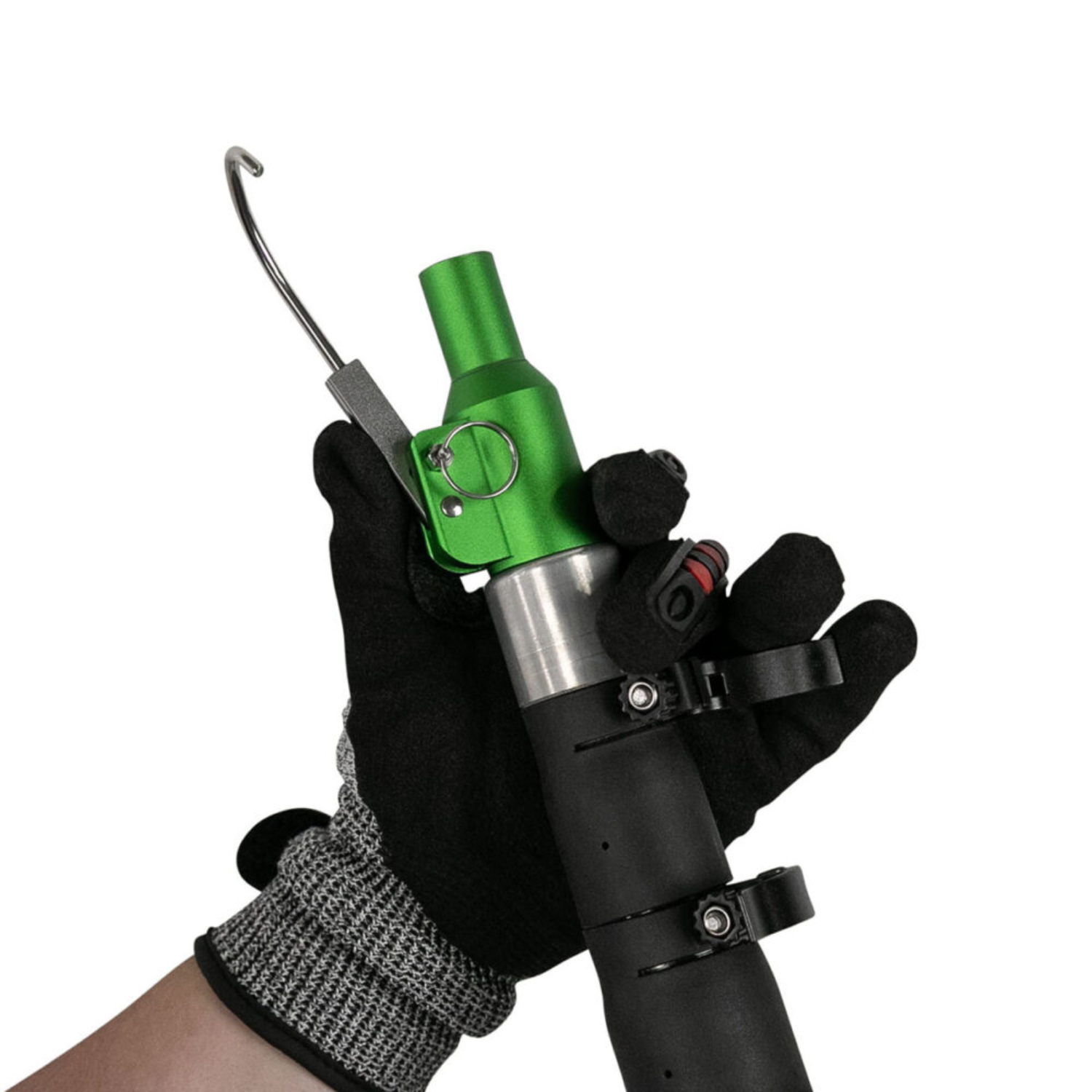

• Includes hook attachment
• Compatible with energy absorbing lanyards, SRLs, and VLLs
• Minimum breaking strength of 5,000 lbs. / 22 kN
• ANSI Z359.18-2017 Type A
• OSHA compliant to 1926.502, 1910.140, and 1910.66

• Brand: Safewaze
• Manufacturer item number: 024-4109
• Product type: Reach anchor assembly
• Anchor style: Remote elevated anchorage system
• Compatible anchor points: I-beams up to 12", pipes, and other pre-established anchor points
• Maximum install height: 20 ft from working surface
• Attachment point: D-ring
• Compatible connection equipment: Energy absorbing lanyards, SRLs, and VLLs
• Minimum breaking strength: 5,000 lbs. / 22 kN
• Working load limit: 1,000 lbs. / 4.4 kN
• ANSI user weight capacity: 130–310 lbs. / 59–141 kg
• OSHA user weight capacity: Up to 420 lbs. / 191 kg
• ANSI compliance: Z359.18-2017 Type A
• OSHA compliance: 1926.502, 1910.140, 1910.66
• Materials: Aluminum, stainless steel, steel, nylon, polyester rope, fiberglass pole with aluminum head
• Anchor dimensions: 27.2" x 8.9" x 6.3" / 690 mm x 225 mm x 160 mm
• Item weight: 10.3 lbs. / 4.7 kg

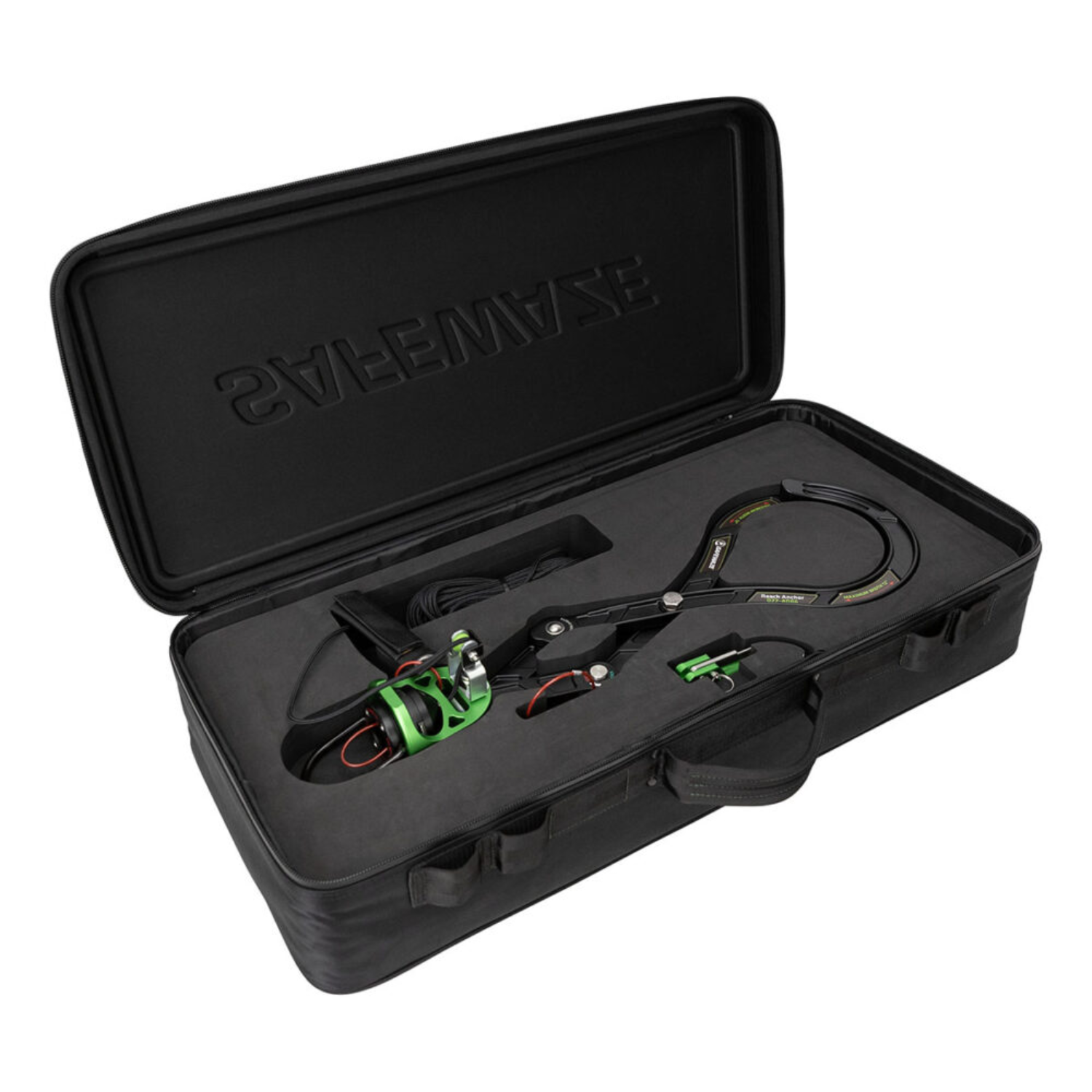

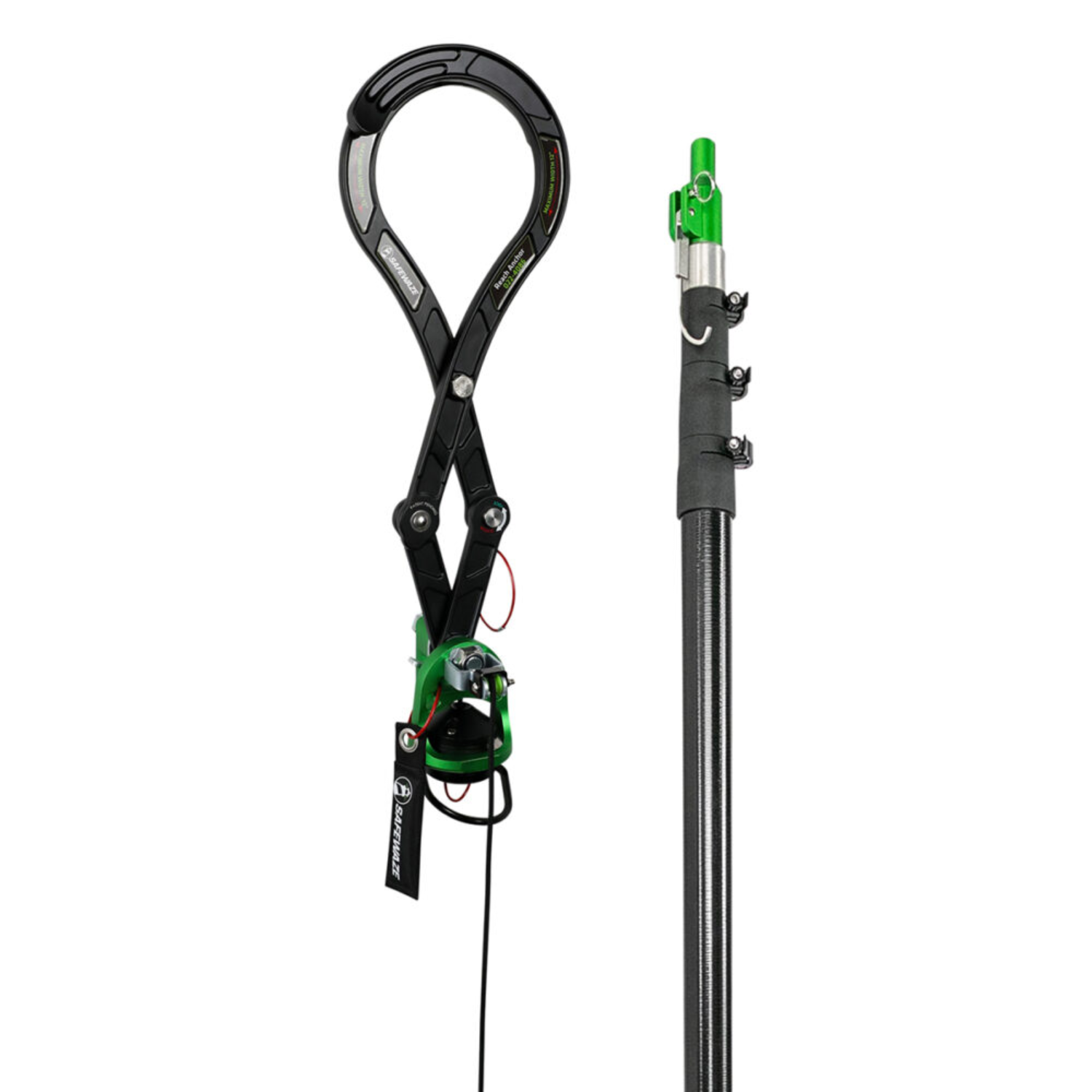

• Included components: Reach anchor, telescoping pole, pole head attachment, carrying case
