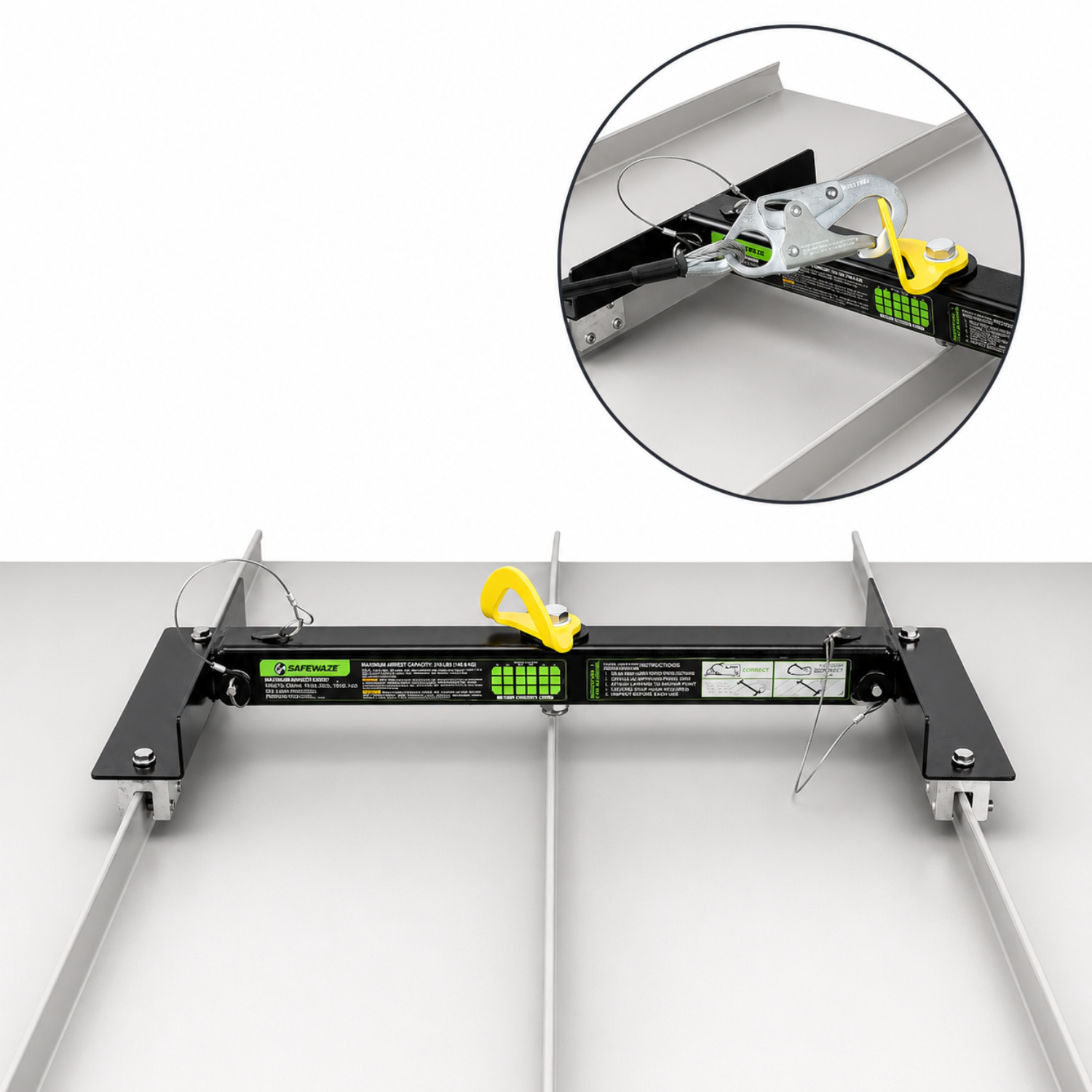

Safewaze - 023-4096, Standing Seam Swivel Anchor

The Safewaze 023-4096 Standing Seam Swivel Anchor is a reusable, non-penetrating anchor point designed for flat or pitched standing seam roofs with a minimum roof gauge of 26. It attaches to a variety of standing seam profiles using four S-5-U clamps and provides a dedicated fall arrest connection point without penetrating the roof panel.

The anchor features an adjustable crossarm that spans 24" to 40" and locks with detent pins, allowing it to fit different standing seam spacing. A 360° swivel D-ring connection point supports worker movement around the anchor and is designed for use with SRL-Ps, energy absorbing lanyards, and VLLs.

The 023-4096 is rated for one user maximum and has a minimum breaking strength of 3,600 lbs. It is OSHA compliant to 1926.502, 1910.140, and 1910.66. This anchor is not for use with HLLs.

Key features:

• Reusable non-penetrating anchor point
• Designed for flat or pitched standing seam roofs
• Minimum roof gauge: 26
• Equipped with four S-5-U clamps
• Attaches to a variety of standing seam profiles
• Adjustable crossarm spans 24" to 40"
• Crossarm locks with detent pins
• 360° swivel D-ring connection point
• Designed for SRL-Ps, energy absorbing lanyards, and VLLs
• 1 user maximum
• Minimum breaking strength of 3,600 lbs. / 16 kN
• OSHA compliant to 1926.502, 1910.140, and 1910.66
• Not for use with HLLs

• Brand: Safewaze
• Manufacturer item number: 023-4096
• Product type: Standing seam swivel anchor
• Anchor style: Reusable non-penetrating roof anchor
• Roof compatibility: Flat or pitched standing seam roofs
• Minimum roof gauge: 26
• Clamp type: S-5-U clamps
• Included clamps: 4 S-5-U clamps
• Crossarm adjustment range: 24"–40"
• Crossarm locking method: Detent pins
• Fall arrest point: D-ring for SRL-Ps, lanyards, and VLLs
• D-ring type: 360° swivel D-ring
• Compatible connection equipment: SRL-Ps, energy absorbing lanyards, VLLs
• User capacity: 1 user maximum
• ANSI user weight capacity: 130–310 lbs. / 59–141 kg
• OSHA user weight capacity: Up to 420 lbs. / 191 kg
• Minimum breaking strength: 3,600 lbs. / 16 kN
• Item weight: 19.2 lbs. / 8.7 kg
• Anchor material: Powder coated steel, stainless steel
• Clamp material: Aluminum
• OSHA compliance: 1926.502, 1910.140, 1910.66
• Not for use with HLLs
