Price: $298.40
Item #POR-32111
Write a review!
Description

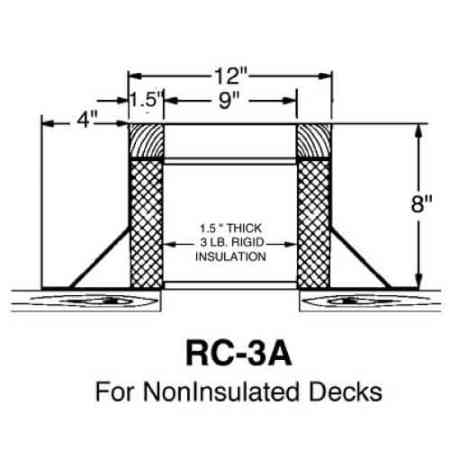

The Portals Plus 32111 Small RC-3A Canted Curb (8″ High) is specified for uninsulated decks where a canted (sloped) curb design is required. The unit is fabricated of 18 gauge galvanized steel with an integral base plate, continuously welded corner seams, and a factory-installed wood nailer. It also includes 1.5″ thick, 3 lb density rigid fiberglass insulation on all four sides. This curb is designed to work with Pipe Portal systems and provides a durable mounting solution for roof penetrations on non-insulated decks.
Key features:
-
18 gauge galvanized steel construction with integral base plate and continuously welded corner seams.
-
Factory-installed wood nailer to secure attachments quickly.
-
1.5″ thick, 3 lb/ft³ rigid fiberglass insulation on all four sides to provide thermal and condensation control.
-
Canted top design (RC-3A) for uninsulated deck applications, 8″ high.
Specifications
- SKU: 32111 (POR-32111)
-
Product type: Small RC-3A Canted Curb – 8″ High
-
Construction: 18 gauge galvanized steel, integral base plate, continuously welded corner seams
-
Insulation: 1.5″ thick rigid fiberglass (3 lb/ft³) on all four sides
-
Height: 8″
-
Typical size: 12″ length × 12″ width (as per listing)
FAQs
Q: What deck condition is this curb model intended for?
A: It is designed for non-insulated decks where a canted curb (sloped top) is required, designated by the RC-3A style.
Q: What insulation is built into this curb?
A: The curb includes 1.5″ thick rigid fiberglass insulation at 3 lb/ft³ density on all four sides.
Q: Does this curb include any pre-cut pipe penetration holes?
A: No — this is the curb structure only; pipe portal covers and caps are installed separately.
Q: Can this curb be used with any roof flashing system?
A: This curb is compatible with Portals Plus Pipe Portal systems and designed to integrate with their covers and caps; ensure compatibility with your roof membrane and detailing.
