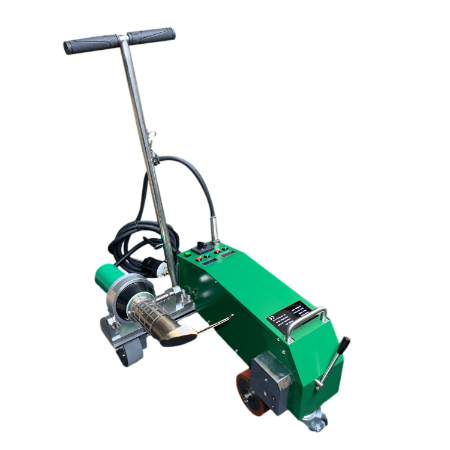

RACE Automatic Bitumen Roofing Welding Machine

The RACE Automatic Bitumen Roofing Welding Machine is designed for flame-free hot-air welding of SBS and modified bitumen membranes. It uses a 4200-watt heating system and brushless motor to provide smooth, consistent welding performance. The unit features variable speed and temperature controls with digital adjustment for precision operation.

Key features:

• Flame-free hot-air welding system
• 4200W heater with digital temperature control
• Adjustable temperature range from 50 °C to 700 °C
• Variable speed from 1.0 to 10.0 meters per minute
• Supports seam widths of 80 mm or 100 mm

• Voltage: 230 V
• Power: 4200 W
• Temperature range: 50 °C to 700 °C (122 °F to 1292 °F)
• Welding speed: 1.0 – 10.0 m/min (3.3 – 33 ft/min)
• Seam widths: 80 mm or 100 mm
• Dimensions (L × W × H): 543 mm × 370 mm × 320 mm
• Weight: 37 kg (82 lbs)
• Motor type: Brushless
• Certifications: CE, RoHS
• Warranty: One year

• Position the machine at the start of the membrane overlap, ensuring the work area is clear and the roof surface is suitably prepared (clean, free of loose debris or moisture).
• Set the digital controls for the desired seam width (either 80 mm or 100 mm), the welding speed (1.0–10.0 m/min), and the temperature (50 °C to 700 °C) as appropriate for your membrane type and manufacturer’s instructions.
• Engage the machine: align the guide wheels on the overlap, ensure the pressure roller is properly pressing the membranes together, then start the automatic drive to move the unit forward. Monitor the weld bead visually for uniformity and full connection.
• While running, periodically check that the heater is maintaining set temperature, the drive speed remains steady, and the weld is defect-free (no gaps, voids or lifting). If necessary, adjust speed or temperature to correct the seam quality.
• After completing the run, switch off the machine, allow it to cool, perform a visual inspection of the seam, clean the nozzle and pressure roller of any residue, and store the machine in a dry, protected environment per the manual.

Q: What power rating and voltage does this machine use?
A: It runs on 230 V with a 4,200 W heater.

Q: What welding seam widths and speeds are supported?
A: It supports seam widths of 80 mm or 100 mm, and welding speeds from 1.0 to 10.0 m/min (3.3 to 33 ft/min).

Q: What temperature range can the machine reach?
A: It has an adjustable temperature from 50 °C up to 700 °C (122 °F to 1,292 °F).

Q: What motor type does this machine use and why is that beneficial?
A: It uses a brushless motor, which provides longer service life, smoother operation and less maintenance.

Q: What types of membranes can this machine weld?
A: It is designed for flame-free hot-air welding of SBS and modified bitumen (APP) roofing membranes.
